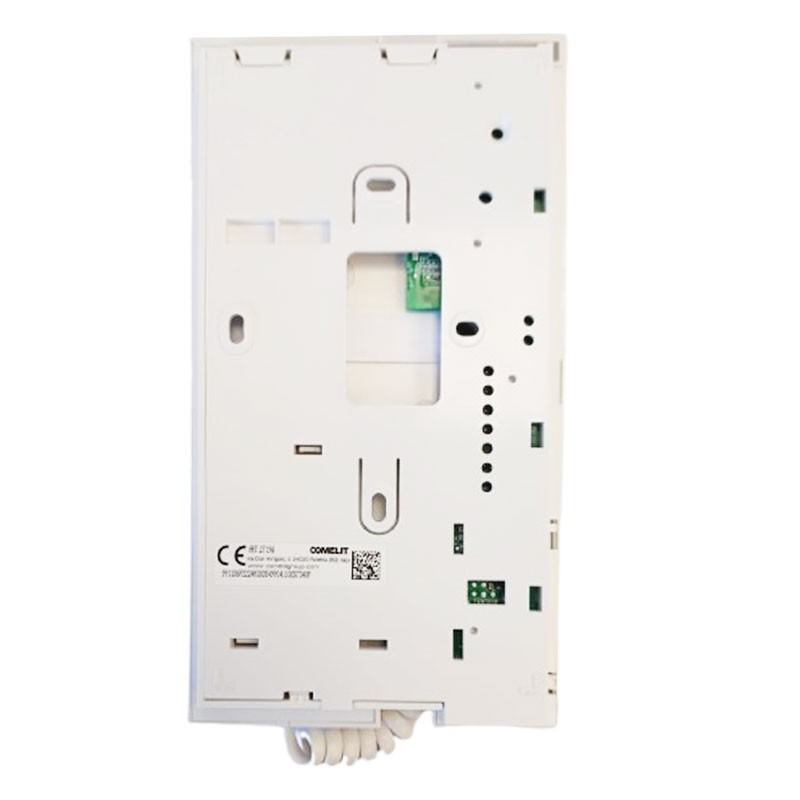

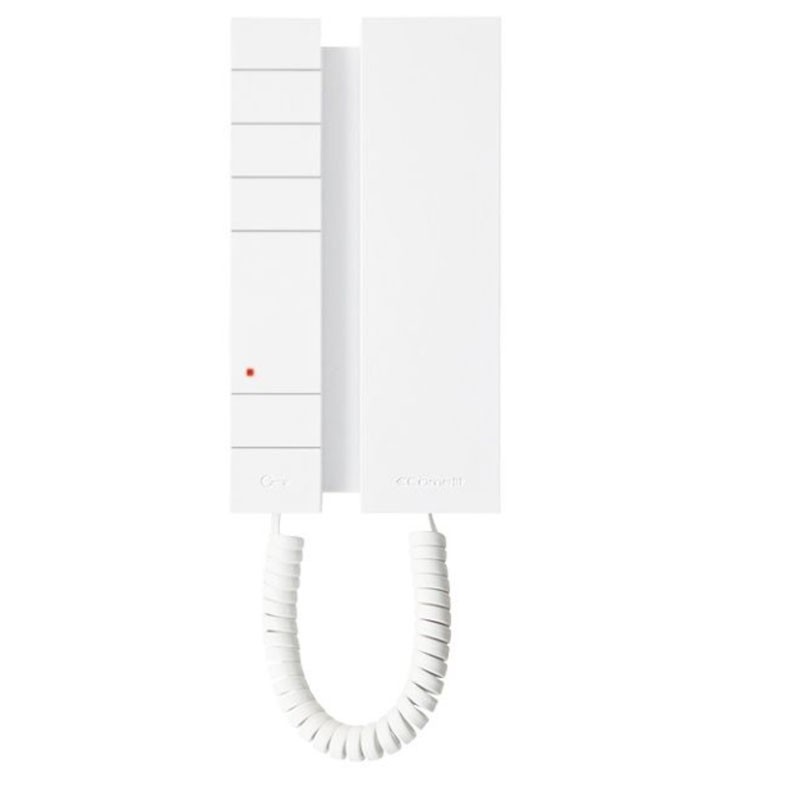

Mini Comelit 5-button intercom for Simplebus 2719W systems
COE 2719W
8023903297461
Comelit 5-button Mini intercom for Simplebus systems (two-wire clean), with electronic call, call volume adjustment, privacy, conversation privacy.
€67.98
Items Available: 78
: 13
Frequently bought together
Advantages:
- Equipped as standard with door opener buttons and 4 other buttons set up for intercom function or various uses (1 of the buttons can be released for C/N.O contact)
- Equipped with a led for various signals (busy, doctor function)

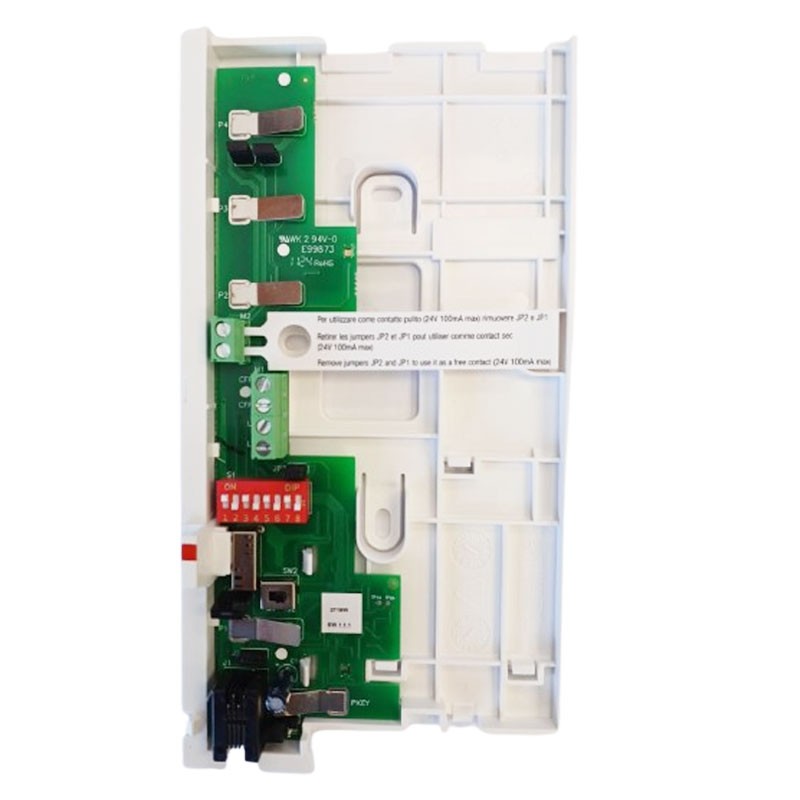

- Complete with 8-position dipswitch for selection of the desired user code
- Door phone usable in all Simplebus systems
- Equipped with selector for defining type of Simplebus 1 or Simplebus2 systems
- Allows management of out-of-door call, call repetition, alarm signalling, call to main switchboard, secondary switchboard and intercom call.
- Equipped with terminal art. 1214/2C
Dimensions (mm)
- Height (mm) 190
- Width (mm) 105
- Depth (mm) 28
HARDWARE FEATURES
- Visual indication Yes
- Audible indication Yes
- Coating type Plastic
- Speaker volume adjustment Yes
- Microphone volume control Yes
- Ringer volume control Yes
MAIN FEATURES
- Audio System Yes
- Wall mount Yes
- Table base mounting Yes
- Colour White Total buttons (No.) 5
- Led signalling (n°) 1
- Operating temperature (°C) 5 ÷ 40
- Weight (g) 260
- Terminals L L CFP CFP
FUNCTIONS
- Actuator control function Yes
- Switchboard call function Yes
- Priority calls Yes
- Intercom function Yes
- Selective intercom call Yes
- Privacy function Yes
- Doctor Yes
- Out of door call function Yes
- Electronic ringtone Yes
- Customisable ringtone Yes
- Door lock release function Yes
COMPATIBILITY
- Simplebus 2 audio/video system Yes
- Audio system Simplebus 2 Yes
- Audio system Simplebus 1 Yes
Ottimo prodotto e facile da installare!! Molto soddisfatta!
tutto ok
sigillato e conforme. Spedizione sempre celere
Tutto ok!
Ottimo articolo
Ottimo articolo!
Very good does the job.....................
Servizio celere.
Assistenza perfetta.
Materiali top.
Data sheet
- Type: Intercoms
- Model: Intercom function
- System: 2-Wire
