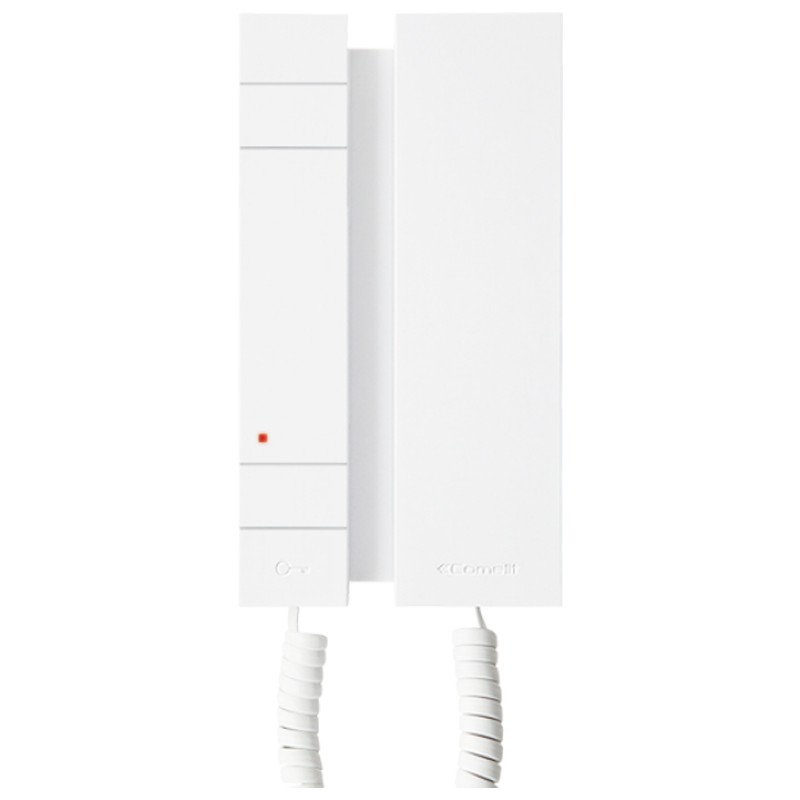

Comelit Mini Simplebus 1 intercom with handset White 2708W/A
COE 2708W/A
8023903396447
Comelit intercom with handset for Simplebus 1 audio systems, with two buttons, silent function, volume control, and switchboard compatibility. Elegant and space-saving design with the following features:
-
Simplebus 1 audio system, simple 2-wire wiring
-
Built-in Silent (Privacy) function
-
Door opener and switchboard call button
-
Ringer volume adjustment
-
Compatible with floor call input
-
Wall-mounted installation, handset magnet design
€33.47
Items Available: 97
: 17
Frequently bought together
Comelit intercom compact solution for residential and condominium intercoms
The Comelit Mini intercom, is designed to provide an intuitive and functional interface in Simplebus 1 audio systems. Equipped with two mechanical buttons, it enables door opening and additional functions such as calling the switchboard or activating actuators. Ideal for condominium or cottage systems, it ensures clear communication through full-duplex audio technology.
Thoughtful design and durable materials

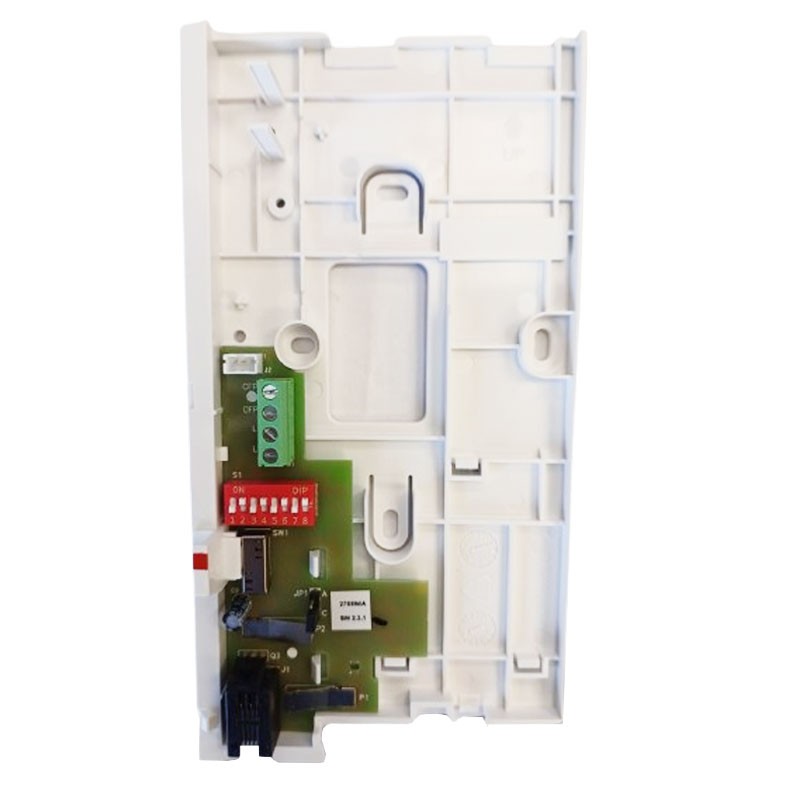

Made of white ABS, the device's compact body (190x103x28 mm) makes it suitable even for limited spaces. The handset is magnetically anchored to the base for convenient and secure attachment. In addition, an add-on board (Item No. 2735) can be integrated to expand functionality with an additional button or call repetition output.
Easy installation and configuration
Wall installation is done quickly thanks to the 2-wire bus connection. The device operates on a 22-28VDC power supply, consuming a maximum of just 0.6W, ensuring energy efficiency and ease of use. It is also compatible with desktop accessories, which can be purchased separately.
Built-in functions
-
Door opener and call to switchboard
-
Floor call input
-
Actuator control
-
Privacy function
-
Output for call repetition (with optional card)
Recommended applications
-
Apartments
-
Condominiums
-
Professional offices
-
Townhouses with Simplebus 1 installations
Technical Specifications Comelit intercom
| System | Simplebus 1 audio |
|---|---|
| Power supply | 22-28 VDC from bus |
| Max. power consumption | 0,6 W |
| Button type | Mechanical |
| Buttons | Door opener + service |
| Adjustments | Chime volume |
| Mounting | Wall-mounted (table-top optional) |
| Microphone | Ø 9.6 mm x 6.9 mm - omnidirectional |
| Speaker | Ø 50 mm - 50 Ohm - 0.25 W |
| Operating temperature | -5°C TO +40°C |
| Operating humidity | 25% - 75% RH |
| Dimensions (HxWxD) | 190 x 103 x 28 mm |
| Body material | ABS |
| Color | White |
Contattato direttamente Comelit mi suggerivano questo citofono che ben si è adattato al centralino del mio condominio
E' un citofono per impianto ormai obsileto, ma deve esserci il ricambio.
Fonctionne parfaitement.
Facile à installer
Super matériel. Livraison en France cher
Lo ho acquistato per sostituzione di uno già esistente
Bon fonctionnement
nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
Data sheet
- Type: Intercoms
- System: 2-Wire
