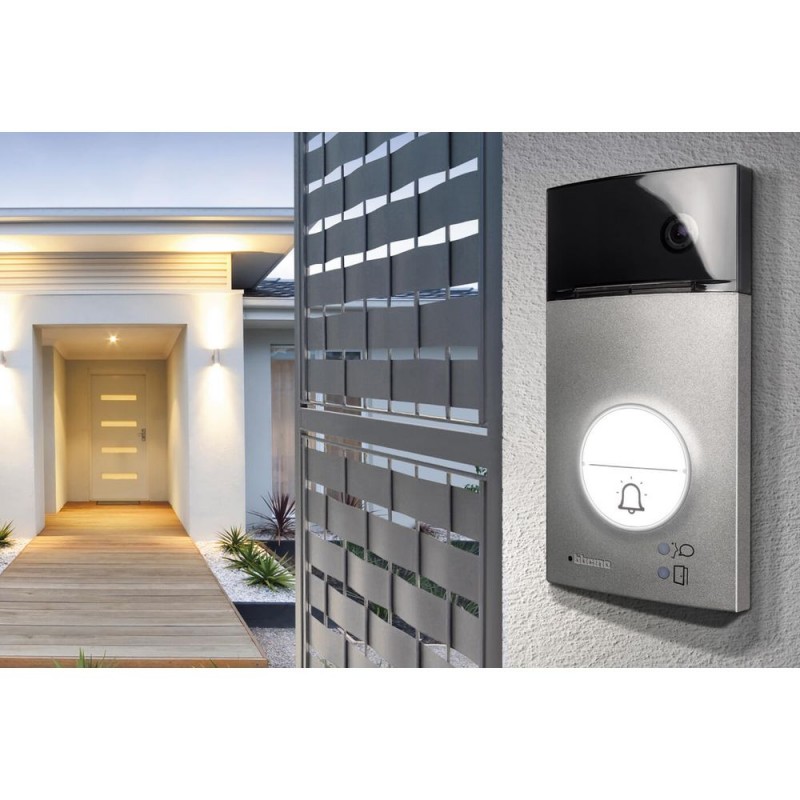

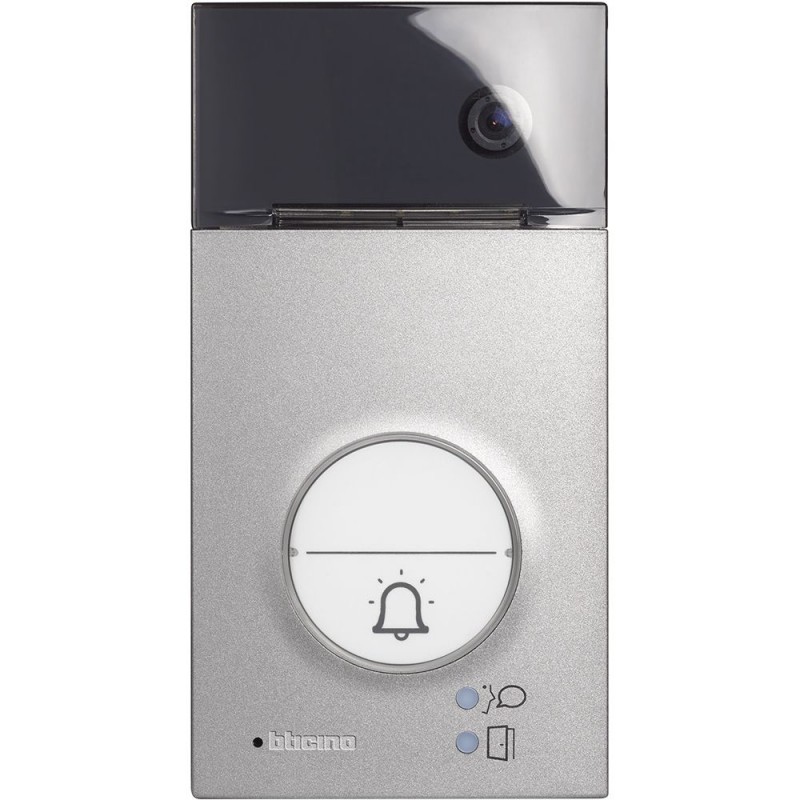

Bticino Linea 3000 Wall-mounted Video Door Station 343081
BTI 343081
8005543565209
Bticino LINEA 3000 wall-mounted video door station with zamak front panel and wide-angle color camera. Configurable for single-family or two-family installations.
€283.35
Items Available: 94
: 3
Frequently bought together
Advantages:
- White LEDs for low-light field illumination
- Configurable for single-family or two-family installations. Allows opening of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max)
- Illumination of the name tag with white LED.
Characteristics:
- Power supply from SCS BUS: 18 27 Vdc
- Absorption in stand-by (with backlighting LEDs off): 15 mA
- Absorption in stand-by (with backlighting LEDs on): 25 mA
- Maximum absorption in operation: 245 mA
- Color sensor: 1/3
- Lens: f 2.35 mm f 2.2

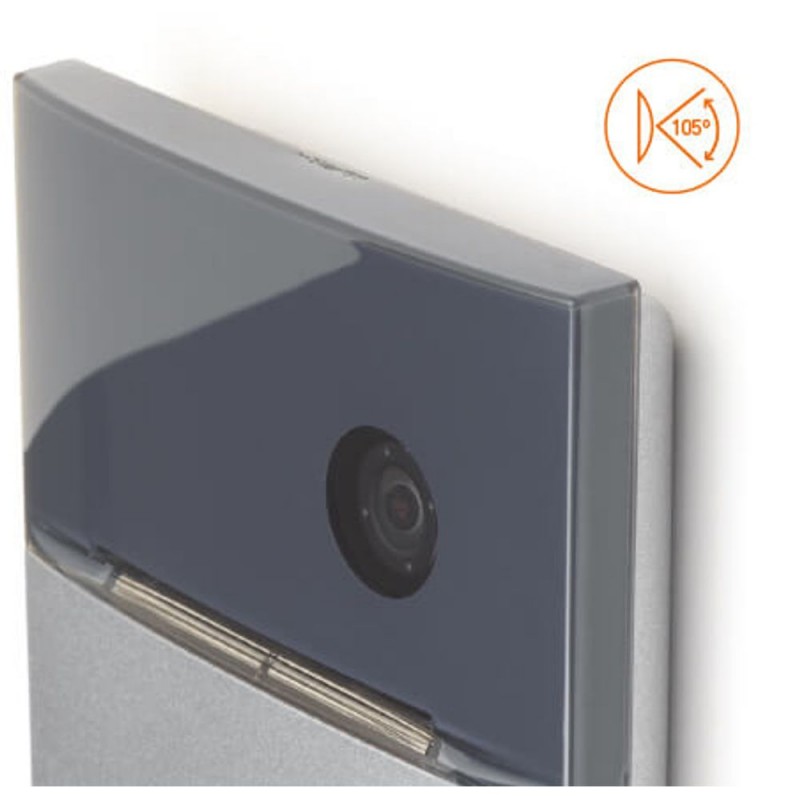

- Viewing angle: ~ 110° diagonally
- Resolution: 330 TV lines (horizontal)
- Shooting field illumination: White LEDs Brightness adjustment: Automatic
- Interlacing: 2:1
- Operating temperature: (-25) (+70) °C
- Degree of protection: IP 54
- Degree of robustness: IK 10.
Très bonne qualité d'image de jour comme de nuit..
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
très bon produit je travail de puis nombreuse année avec
Data sheet
- Type: Door stations/Outdoor Intercoms
- System: 2-Wire
