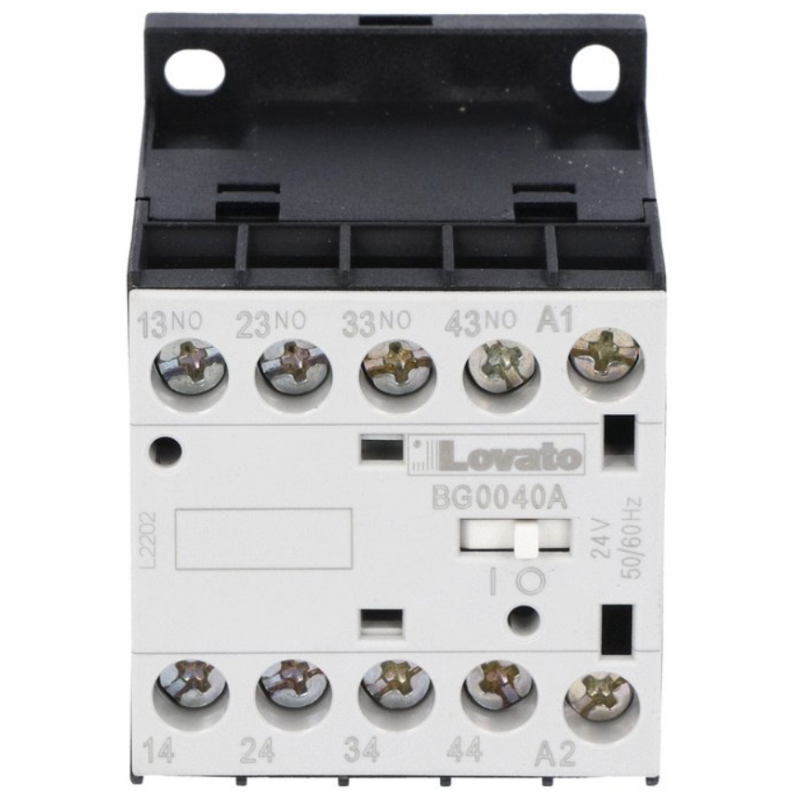

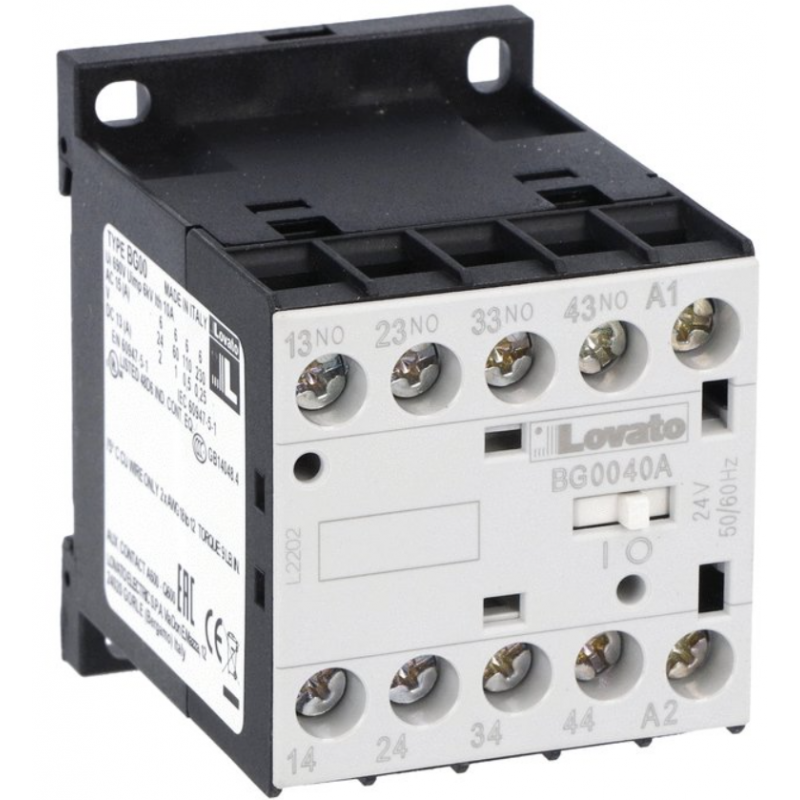

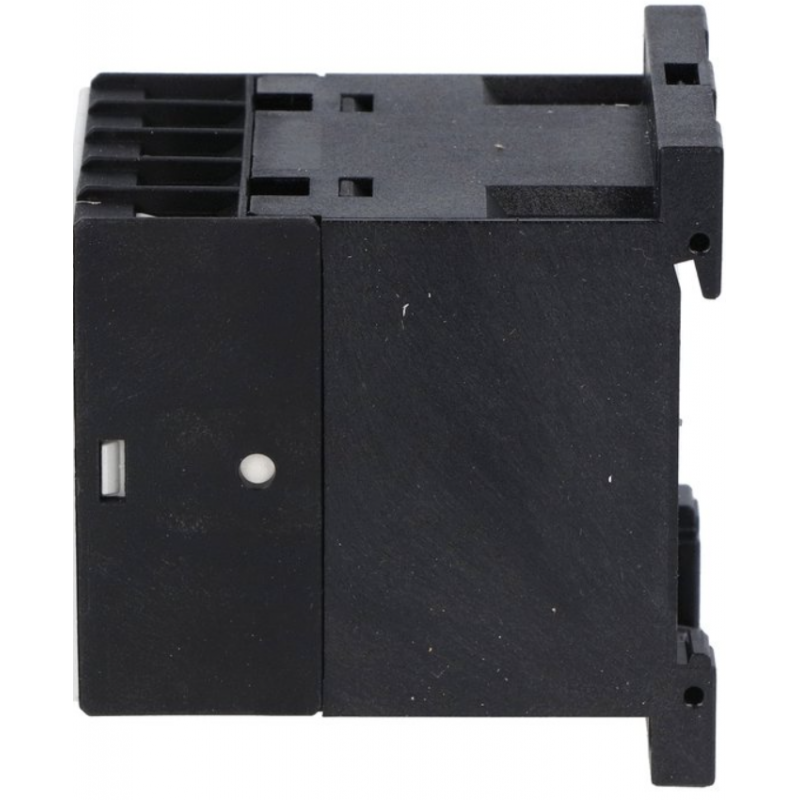

Lovato mini contactor ac-24V coil 4NA 11BG0040A024
LOV 11BG0040A024
8013975080375
Lovato mini contactor, with the following characteristics:
- IEC/EN rated insulation voltage Ui: IN 690
- Rated impulse withstand voltage Uimp: Kv 6
- Operating frequency: min Hz 25, max Hz 400
- Number of poles: 4
- Operating AC coil: rated AC voltage at 50/60Hz: 24V
- IEC Conventional free air thermal current Ith UN: 10
- Maximum number of wires that can be connected simultaneously: 2
- Power terminal protection according to IEC/EN 60529: IP20 when wired
- Operating position: normal Vertical plane, allowable ±30°
- Mounting: screw/35mm DIN rail
€29.19
Out of stock
Incoming
Other technical features:
- Weight: 179 grams
- Conductor cross section AWG/kcmil: max 12
- Auxiliary contact characteristics: thermal current Ith UN 10
- IEC / EN 60947-5-1 designation: A600 - Q600
- Mechanical life: 20000000 cycles
- Performance level B10d according to EN/ISO 13489-1: mechanical load cycles 20000000
- Counted mirror according to IEC / EN 609474-4-1: YES
- EMC compatibility: YES
- Dissipation at maintenance ≤20°C 50Hz In 0.95W
- Mechanical operation: cycles/h 3600
- General contactor use: alternating current UN 160
- Scope of auxiliary contacts according to UL: A600 - Q600
- Operating temperature: min °C -50 - max °C +70
- Storage temperature: min °C -60 - max °C +80
- Maximum altitude: m 3000
- Pollution degree 3
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24V
- Poles: 4P
