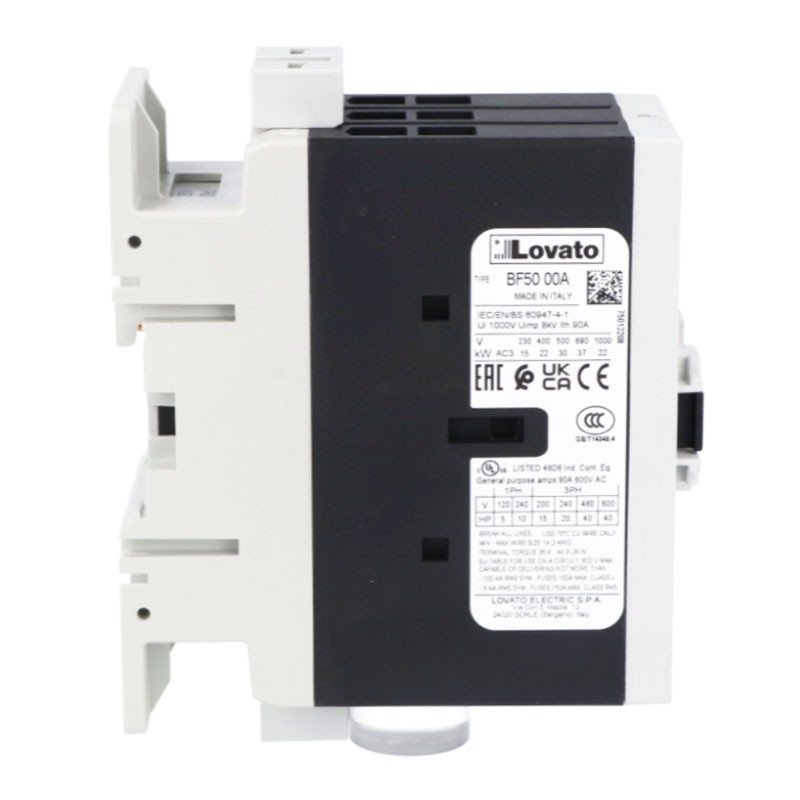

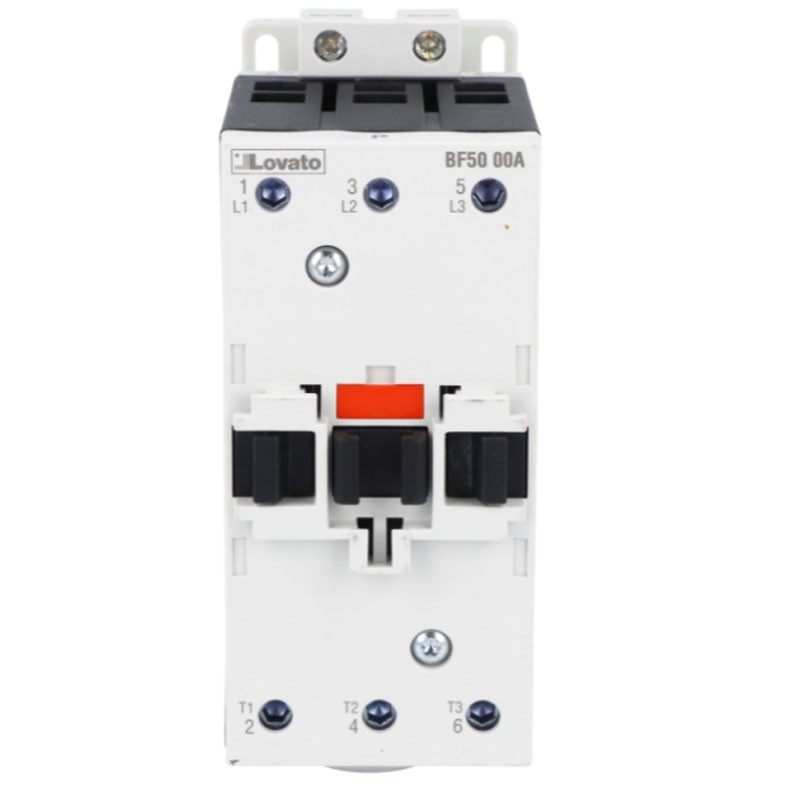

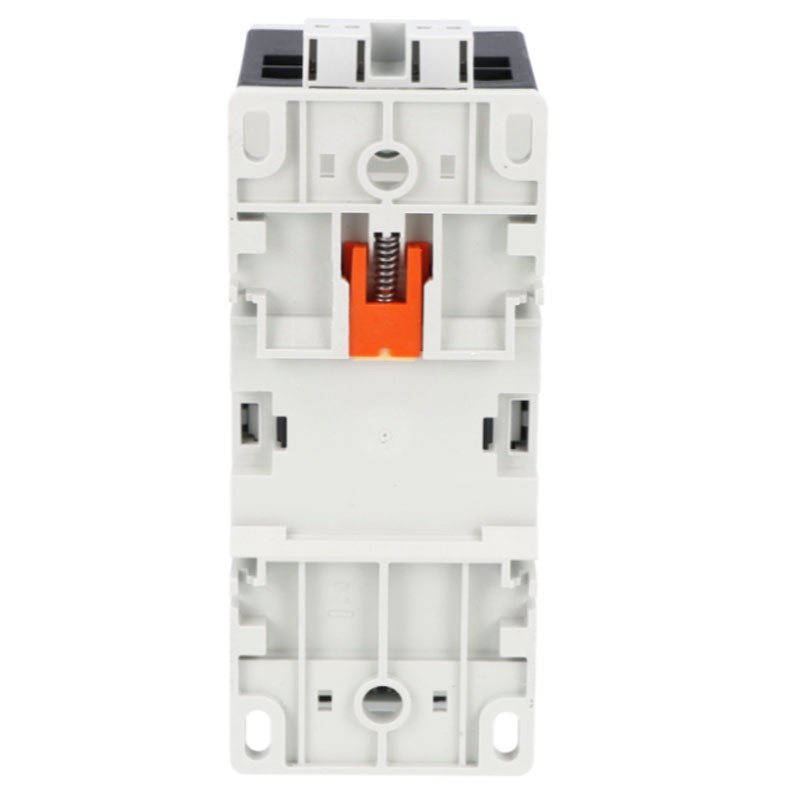

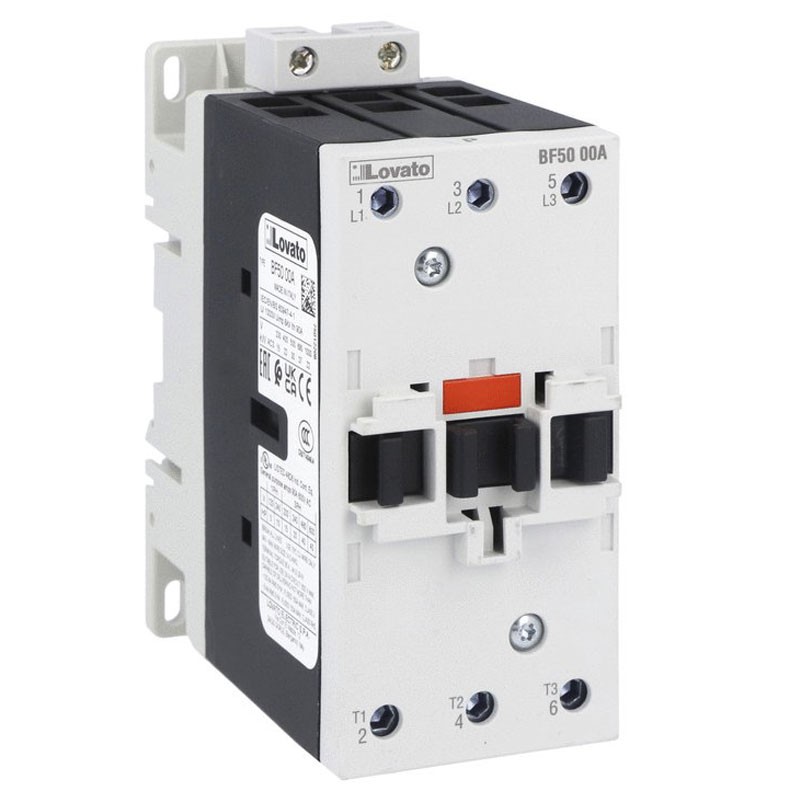

Lovato 3-pole contactor 3 poles 50A AC3 230V BF5000A230


LOV BF5000A230 8013975223048

Lovato three-pole contactor type BF50, with the following characteristics:



  • AC coil control= Rated voltage at 50/60Hz: 230V
  • Number of poles: 3
  • IEC/EN rated insulation voltage: 1000V
  • Rated impulse withstand voltage (Uimp): kV 8
  • Frequency of use: min 25 Hz - max 400 Hz
  • Conventional thermal free air current Ith IEC: 90A
  • Allowable short-time withstand current 10s (IEC/EN 60947-1): 400A
  • Protection fuse: gG (IEC) 100A - aM (IEC) 50A
  • Closing power (rms value): 500A
  • Resistance per pole (average value) mΩ: 0.8
  • Power dissipation per pole (average values): Ith 6.5W - AC3 2W
  • Max. number of conductors that can be installed simultaneously: 2
  • Mounting position: Normal Vertical plane - Allowed ±30°
  • Mounting/fixing type: Screw/35mm DIN rail
Request info about this product

Lovato 3-pole contactor 3 poles 50A AC3 230V BF5000A230

€145.30
€145.30

Lovato 3-pole contactor 3 poles 50A AC3 230V BF5000A230

€145.30
Tax included
klarna Pay in installments with Klarna
qty

Lovato 3-pole contactor 3 poles 50A AC3 230V BF5000A230

€145.30

Buy it within and receive it from Friday, 12 April
Two-year warranty
Secure Payment
Easy return within 14 days

Other technical features:

  • Weight 1,020 kg
  • Degree of protection: IP20 front
  • AWG/kcmil conductor cross-section: max 2
  • Mechanical life span: 15000000 cycles
  • Electrical endurance: 1400000 cycles
  • Maximum frequency of cycles: Mechanical operation: cycles/hour 3600
  • Operating temperature: -50/+70°C
  • Storage temperature: -60+/80°C
  • Maximum altitude: 3000m
  • Pollution degree: 3
  • Mirror contact according to IEC 60947-4-1: Yes
  • EMC compatibility according to EN 60947-1: Yes

Data sheet

Type:
Contactors
