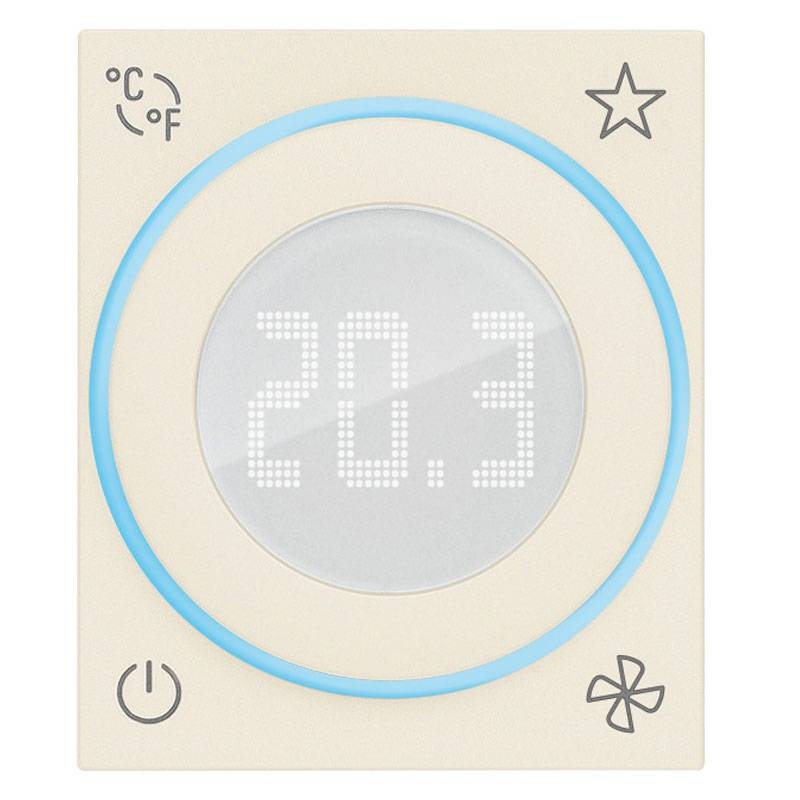

Vimar Linea connected thermostat IoT2M hemp 30811.C

Vimar
Vimar
VIW 30811.C 8007352754300

Vimar Linea connected IoT2M thermostat 30811.C - Hemp, NO Relay Output, 3-speed and proportional Fan-Coil Control and IoT Functionality over Bluetooth 5.0.

  • IoT Technology: Bluetooth 5.0 for View Wireless mesh system

  • Power Supply: 100-240 V 50/60 Hz

  • Operating modes: stand-alone, Bluetooth, Zigbee

  • Inputs: 1 input for outdoor temperature sensor

  • Features: Control of heating, air conditioning, circulation pumps, burners, solenoid valves and temperature probes

  • LED backlighting: White, with intensity adjustment

  • Temperature control class: ON/OFF: Class I (1% contribution) - PID: Class IV (2% contribution)

  • Compatibility: With Linea series plates

  • Modules: 2 modules.

  • bluetooth
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Linea connected thermostat IoT2M hemp 30811.C
    €125.07
    €125.07

    €125.07
    Tax included
    Calculate shipping cost
    Items Available: 23
    Further availability of the manufacturer
    €125.07

    Buy it within and receive it from Monday, 22 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Vimar Linea connected IoT2M Thermostat: Advanced control for fan-coil systems

    The Vimar IoT2M Thermostat offers precise and customized control of heating, air conditioning systems and other equipment such as circulation pumps, burners, fan-coils, and solenoid valves. With IoT technology based on Bluetooth 5.0, it enables advanced wireless management, creating a mesh system for stable and powerful connection.

    Convenience and versatility of operation

    This smart thermostat is designed to be used in three operating modes: stand-alone, Bluetooth, or Zigbee, offering unparalleled flexibility to adapt to various air conditioning and heating systems. You can choose the most suitable mode according to your needs, with the Bluetooth connection allowing you to control your environment directly via an app.

    Advanced features for temperature control

    The Vimar thermostat offers temperature control in both ON/OFF and PID modes for applications requiring more precise and proportional control. White LED backlighting with intensity adjustment ensures optimal visualization even in low-light environments.

    Easy integration

    With an input for external temperature sensor, it is ready to optimize temperature management even in complex environments.

    Quick and easy operation

    Through the front buttons, display, thumbwheel, and the illumination of the bezel bordering it, it is possible to make the setting and display of all thermostat operation modes.

    Acting on the thumbwheel sets a new setpoint. Specifically, for operation in Bluetooth technology:

    • with automatic operation mode, turning the thumbwheel switches the thermostat to manual operation for a time value set on the View app;

    • with automatic operation mode, when ignition advance is enabled, timed manual mode is available with a fixed time that is defined by the advance algorithm;

    • in manual operation or reduction, the thermostat remains in that mode and the setpoint is the one set by means of the thumbwheel

    • The thermostat can control one or more thermostatic heads 03989 or the fans of a fancoil via actuators item 03985 or item 03986.

    Feature Detail
    Rated supply voltage 100-240 V~, 50/60 Hz
    Power dissipation 0,55 W
    Transmitted RF power < 100mW (20 dBm)
    Frequency range 2400-2483.5 MHz

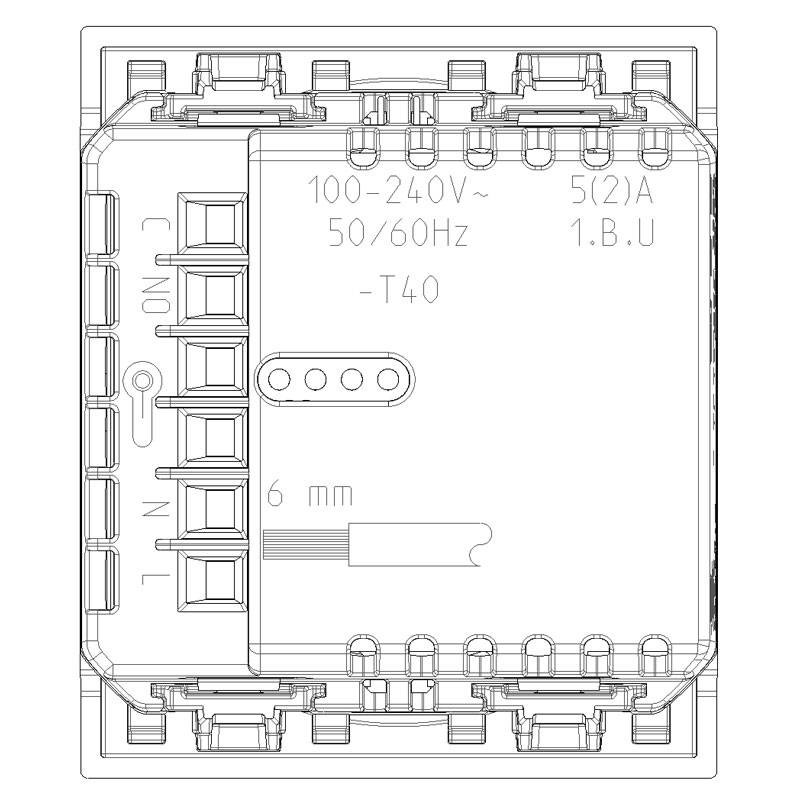

    Line/neutral terminals 2 terminals (L and N)
    Terminals for external probe 2 terminals (compatible with art. 02965.1, 20432, 19432, 14432)
    External probe cable Max 10 m, twisted, min cross-section 0.5 mm² (art. 01840)
    External probe management Only via Bluetooth technology
    Relay terminals 2 C-NO terminals (dry contact)
    Relay output 5(2) A 240 V~
    Setpoint settable 4 °C - 40 °C
    Fancoil speed (3 speeds) V1, V2, V3, Auto
    Proportional fancoil speed 33%, 66%, 100%, Auto
    Head compatibility Art. 03989 (one or more)
    Internal probe accuracy ±0.5 °C (15-30 °C), ±0.8 °C (at extremes)
    Usage Heating/Conditioning
    Operating modes. Automatic, Manual, Reduction, Economy, Protection, Off, Timed Manual (Bluetooth)
    Control algorithms ON/OFF or PID (configurable via Bluetooth)
    Front keys 4 (for commands, configuration/reset)
    RGB LED Configurable for output status/configuration (flashing blue)
    Operating temperature 0 °C ÷ +40 °C
    Degree of protection IP30
    Energy class ErP ON/OFF: Class I (1%) - PID: Class IV (2%)
    Device class II
    Manual cycles 3.000
    Automatic cycles 100.000
    Contact type Micro disconnection
    Action type 1BU
    Tracking Index (PTI) PTI175
    Pollution situation 2
    Rated impulse voltage 4000 V
    Software class A
    Reading resolution 0,1 °C
    Setting resolution 0,1 °C
    Update displayed temperature Every 10 s
    Ambient temperature display 0 °C ÷ +40 °C
    Adjustable temperature differential 0.1 °C to 1 °C (from app)
    Hourly programming From app (hourly temperature setting)
    Transport temperature -25 °C TO +60 °C
    Clock error ≤ 1 s per day
    Configuration From View Wireless app (stand-alone or Bluetooth system)
    Voice command compatibility View app, Alexa, Google, Siri, HomeKit (Bluetooth)
