Vimar Linea IoT Smart Gateway 2 modules White 30807.B

Vimar
Vimar
VIW 30807.B 8007352688421

Vimar Linea IoT Smart Gateway:



  • 2 modules
  • Colour White
  • For integration, configuration, supervision of VIEW Wireless, via Cloud and App for smartphones, tablets
  • Power supply 100-240 V 50/60 Hz



The gateway is a Bluetooth technology Wi-Fi device that enables dialogue with wireless devices to enable configuration, supervision, diagnostics of the system and its integration with voice assistants. And the main device that manages the Bluetooth technology Mesh network and through the View Wireless App receives via Bluetooth technology the system configuration.



The presence of wifi connectivity is necessary to enable connection to the cloud for supervision (local and remote) and for integrations with voice assistants Alexa, Google Assistant and Siri.

  • wifi
  • bluetooth
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Linea IoT Smart Gateway 2 modules White 30807.B
€82.47
€79.99
€79.99

Lowest price in 30 days:
€82.47
Save 3%
€79.99
Tax included
Calculate shipping cost
Offer expires in
Items Available: 25
Further availability of the manufacturer
€79.99

Buy it within and receive it from Tuesday, 30 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The gateway is equipped with a front button for configuration/reset and RGB LEDs to indicate the status of the device. It is also compatible with Apple Homekit; for pairing use the Home app by scanning the QR Code of the gateway. From the FW r452 version, it is necessary to briefly press the front button on the gateway to manually activate/reset the association phase (which takes about 10 minutes); when the button is pressed, the LED lights yellow for 2 s to confirm activation.



Features:

  • Rated supply voltage: 100-240 V~, 50/60 Hz
  • Power dissipation: 0.9 W
  • Transmitted RF power: < 100mW (20dBm)
  • Frequency range: 2400-2483.5 MHz

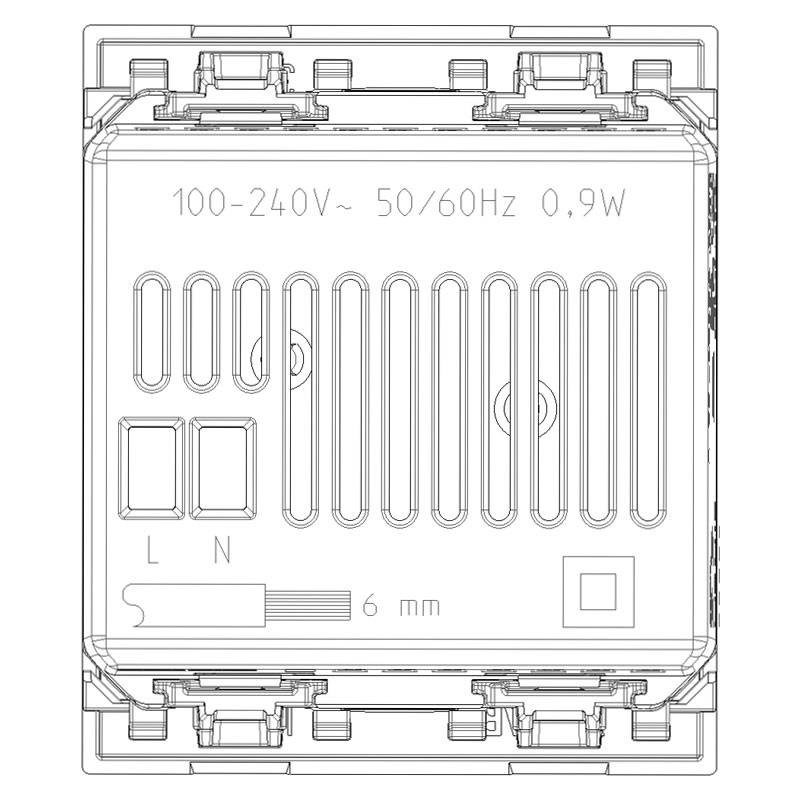

  • Terminals: 2 (L and N) for line and neutral
  • 1 front button for configuration and reset
  • RGB LED indicating device status
  • Operating temperature: -10 to +40 °C (for indoor)
  • Degree of protection: IP40
  • Configuration from App View Wireless
  • Controllable from App View and voice assistants Alexa, Google Assistant and Siri
  • Class II luminaire
