Vimar Smart IoT magnetic contact for doors and windows 03980

Vimar
VIW 03980 8007352657564

Vimar Connected magnetic contact for doors and windows:



  • IoT technology on Bluetooth technology 5.0 standard for realization mesh View Wireless system
  • 1 input for clean contact
  • Powered by AA LR6 1.5 V AA batteries (not supplied)
  • White colour
  • Can be used as an accessory to the Smart thermostat or, in conjunction with the IoT gateway, as a sensor for magnetic contact open/close notifications or clean contact input.
  • bluetooth
  • Offer expires in
    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Smart IoT magnetic contact for doors and windows 03980
    €56.80
    €55.10
    €55.10

    Lowest price in 30 days:
    €56.80
    Save 3%
    €55.10
    Tax included
    Calculate shipping cost

    Offer expires in
    €55.10

    Buy it within and receive it from Tuesday, 30 December
    Two-year warranty
    Easy return within 14 days

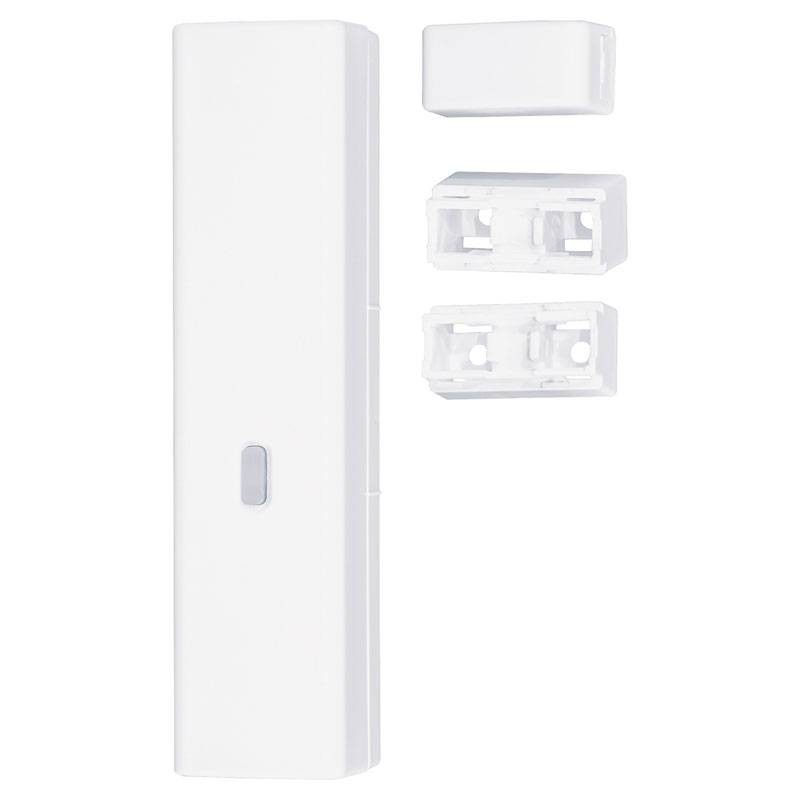

    The device has a magnetic contact and a wired contact that can be used independently. On the front is a button for configuration and a two-color red/blue LED for signaling various states.



    The device can be configured in the Bluetooth technology system via the View Wireless app, and through the 20597-19597-16497-14597 gateway, it can talk to the View app to notify the opening or closing of one of the 2 contacts.



    It can be associated with thermostat 02973 to turn off the system in case of an open window. It is also capable of recalling scenarios created with the View app.



    Features:

    • Nominal supply voltage: 1.5 V (AA (LR6) stylus battery not supplied)
    • Battery life: 3 years
    • Caution: If the system is turned off (e.g., in seasonal uses) the batteries will discharge more quickly because the contact will continue searching for powered devices. It is therefore recommended, if possible, to remove the batteries
    • Transmitted RF power: < 100mW (20dBm)
    • Frequency range: 2400-2483.5 MHz
    • Terminals: - 2 terminals for wired contact - 1 not used
    • Magnetic contact to match the supplied magnet
    • Wire contact to be used for potential-free connections
    • Wire contact installation distance: max 30 m
    • 1 front configuration button
    • 1 two-color LED for signaling configuration status (flashing blue) and output status
    • Operating temperature: 0 °C ÷ +40°C (indoor use)
    • Configuration from View Wireless app for Bluetooth technology system

    Data sheet

    Smart System:
    Magnetic contacts
