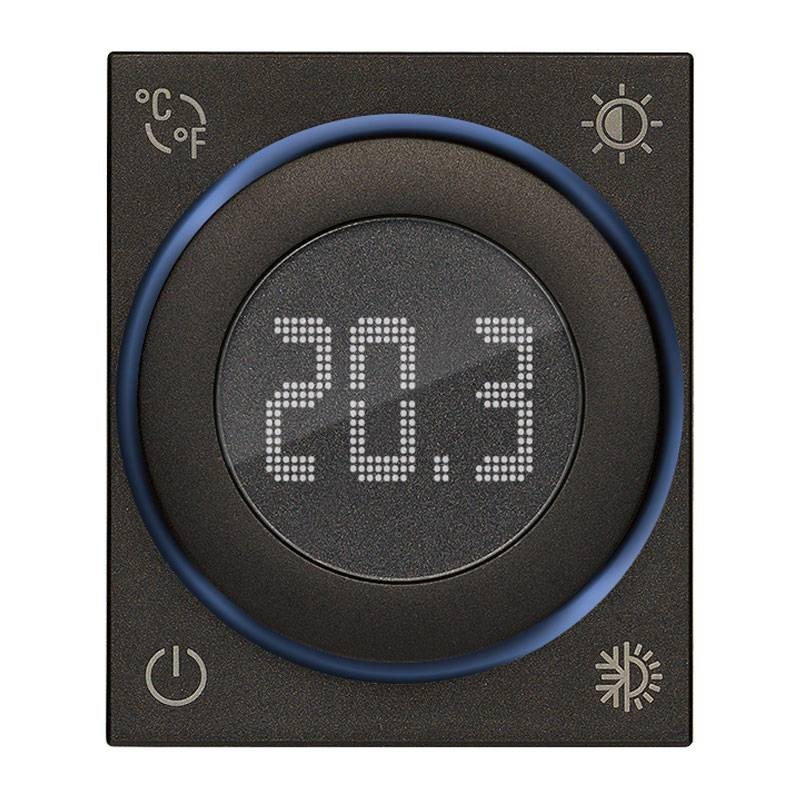

Vimar IoT Linea Dial Thermostat 2 Module Black 30810.G

Vimar
Vimar
VIW 30810.G 8007352689367

Vimar Linea smart dial thermostat for heating and air conditioning:



  • With IoT technology on Bluetooth technology 5.0 standard for realization of VIEW Wireless mesh system
  • 2 Modules
  • Black color
  • Input for external temperature sensor
  • Power supply 100-240 V~ 50/60 Hz
  • Heating and cooling in ON/OFF and PID mode
  • Class I temperature control device (1% contribution) in ON/OFF mode, class IV (2% contribution) in PID mode
  • White LED backlighting with intensity adjustment
  • Compatible with Alexa and Google Home voice assistants via skill and action VIEW Product
  • Maximum simplicity with large knob
  • Configuration from VIEW Wireless App for Bluetooth technology system
  • Quick keys enable fast interaction
  • bluetooth
    • Offer expires in
    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar IoT Linea Dial Thermostat 2 Module Black 30810.G
    €128.82
    €124.95
    €124.95

    Lowest price in 30 days:
    €128.82
    Save 3%
    €124.95
    Tax included
    Calculate shipping cost
    Offer expires in
    Items Available: 8
    Further availability of the manufacturer
    €124.95

    Buy it within and receive it from Tuesday, 30 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Features:

    • Rated supply voltage: 100-240 V~, 50/60 Hz
    • Power dissipation: 0.55 W
    • Transmitted RF power: < 100mW (20dBm)
    • Frequency range: 2400-2483.5 MHz
    • Dry contact relay output: 5(2) A 240 V~
    • Current setpoint settable: 4°C - 40°C.
    • Temp measurement accuracy (built-in probe): 0.5°C between +15°C and 30°C, 0.8°C at extremes
    • Can be used for Heating/Conditioning (winter/summer)
    • Operating modes of operation: Automatic, Manual, Reduction, Absence, Protection, Off, Timed manual (only for Bluetooth technology system)
    • Temperature control algorithms: configurable ON/OFF or PID (only for Bluetooth technology)
    • 4 front buttons for control and configuration/reset
    • RGB LED for signaling configuration status (flashing blue) and output status (configurable color)
    • Operating temperature: T40 (0 °C +40 °C) (indoor use)
    • Degree of protection: IP30
    • ErP classification (EU Reg. 811/2013): - ON/OFF: class I, 1% contribution. - PID: class IV 2% contribution
    • Class II appliance
    • Number of manual cycles: 3,000
    • Number of automatic cycles: 100,000
    • Contact opening type: micro disconnection
    • Action type: 1BU
    • Tracking index: PTI175
    • Pollution situation: 2
    • Rated impulse voltage: 4000V
    • Software class: A
    • Reading resolution: 0.1 °C
    • Setting resolution: 0.1 °C
    • Update of displayed temperature: every 10 s
    • Ambient temperature display: 0 °C +40 °C
    • Adjustable temperature differential via app: 0.1 °C to 1 °C
    • Hourly temperature setting (via app)
    • Ambient temperature during transport: -25 °C +60 °
    • Clock error: 1 s per day
    • Configuration by View Wireless app for standalone and Bluetooth technology system
    • Controllable by View app, Alexa voice assistant, Google, Siri and Homekit for Bluetooth technology system

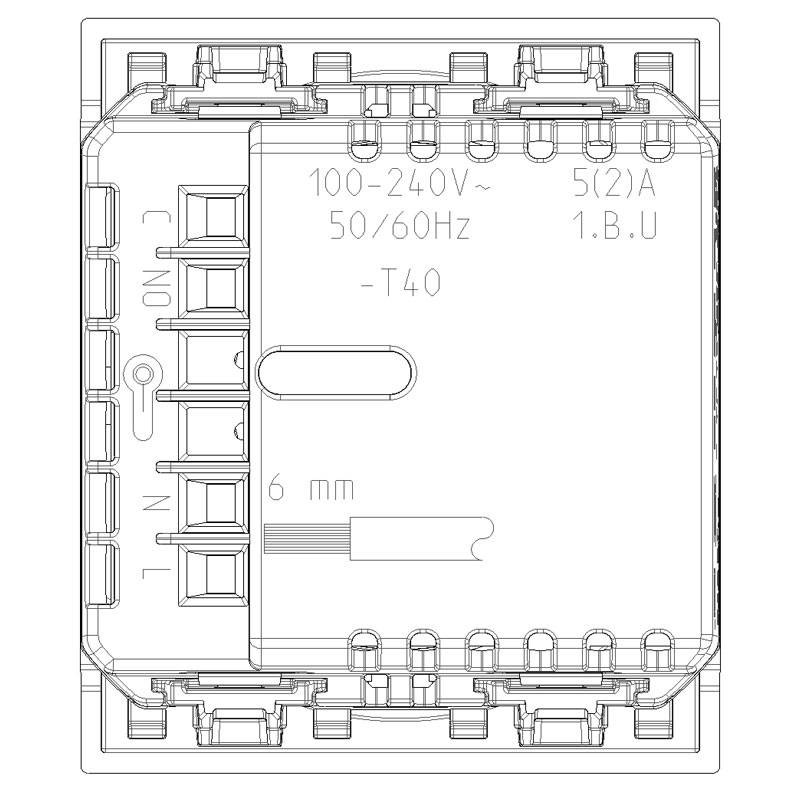

    Terminals:

    • 2 terminals (L and N) for line and neutral
    • 2 terminals for external temperature sensor (Art. 02965.1 and 20432-19432-14432) Maximum length of external sensor connection cable: 10 m. Use a twisted cable with a minimum cross section of 0.5 mm2 (item 01840). The external temperature sensor is managed only in the Bluetooth technology system.
    • 2 relay terminals C-NO
