Vimar Linea IoT Smart Actuator for 16A Socket White 30803.B
VIW 30803.B
8007352690110
Vimar IoT Line Smart actuator for socket:
- VIEW Wireless with NO relay output 16 A 100-240 V~
- Local control with push button or remote control
- Dual IoT technology on Bluetooth 5.0 standard for realizing VIEW Wireless mesh system and on Zigbee 3.0 standard
- Instantaneous power and energy consumed measurement function and load disconnection threshold
- RGB LED dark detection with intensity adjustment
- Power supply 100-240 V 50/60 Hz
- White color
To be applied only to Vimar Linea series frames codes: 30613/30614/30617.
€44.28
Items Available: 24
: 17
Frequently bought together
The actuator is equipped with a relay output with current meter and a front button with which to reset the load and perform configuration/reset. It realizes the function of overcurrent protection by disconnecting the load when the threshold value set through the View Wireless app is exceeded; the disconnection of the load is signaled through the red flashing of the LED on the front of the device. Load reactivation, in addition to from the front button, can also be done from the View App. The View App also allows the user to view the instantaneous power consumed.
Features:
- Rated supply voltage: 100-240 V~, 50/60 Hz
- Power dissipation: 0.85 W
- Transmitted RF power: < 100mW (20dBm)
- Frequency range: 2400-2483.5 MHzLED RGB indicating output status (settable from View Wireless App) and configuration status (blue flashing)
- In Bluetooth technology mode, up to 2 radio devices (art 03925) can be associated with the device, allowing actuator control or scenario activation
- Operating temperature: -10 ÷ +40 °C (for indoor)
- Degree of protection: IP20
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology
- Controllable by App View

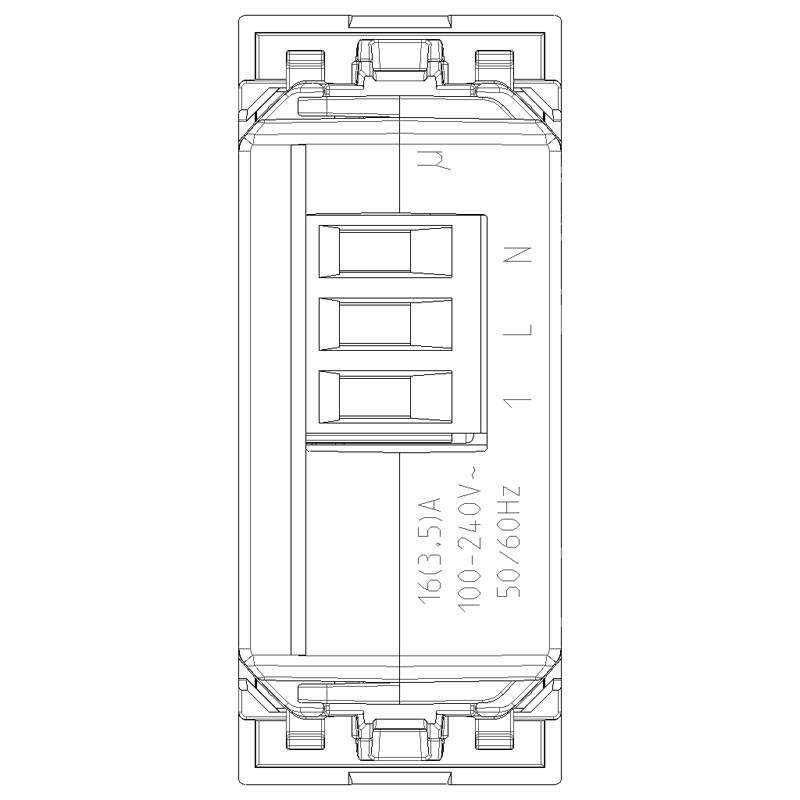

- Terminals: - 2 terminals (L and N) for line and neutral - 1 terminal (1) for voltage relay output
There are no reviews
Data sheet
- Smart System: Smart Actuators
