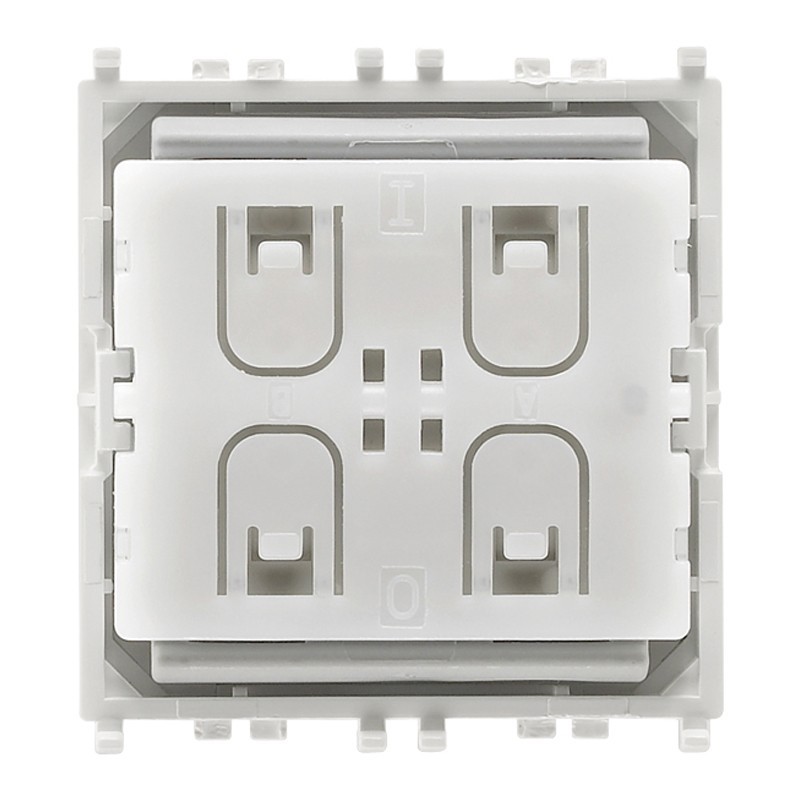

Vimar Low Energy Bluetooth radio control 03925

Vimar Low Energy Bluetooth radio control 03925

Vimar
Vimar
VIW 03925 8007352596054

Four-button Vimar Low Energy Bluetooth radio flat control with 2.4 GHz radio frequency transmitter, Vimar 14507 mounting bracket.

  • bluetooth
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Vimar Low Energy Bluetooth radio control 03925
    Vimar Low Energy Bluetooth radio control 03925
    €48.87
    €48.87

    €48.87
    Tax included
    Calculate shipping cost
    Items Available: 8
    Further availability of the manufacturer
    €48.87

    Buy it within and receive it from Wednesday, 24 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    The 03925 module allows the realization of wireless switches to create systems that communicate via Bluetooth technology Low Energy.

    The buttons of the 03925 module are self-powered (without batteries) and do not require maintenance.

    They can therefore be used in all environments, including hard-to-reach areas or in hermetically sealed housings. The required energy is generated by an electrodynamic transducer driven by an activation bar at the bottom and top of the module; it can be pressed from outside the module by means of an appropriate button or rocker button.

    When the activation bar is pressed or released, electrical energy is created and a radio telegram is transmitted that conforms to the Bluetooth technology Low Energy standard. The radio telegram transmits the status of all four contacts when the activation bar is pressed or released.

    The radio telegrams of the 03925 module are protected by AES-128 encryption with unique private key.

    Features:

    • Integrated antenna
    • Maximum measured transmission power 0.4dBm / 1.1mW
    • Communication range (indicative) 75 m in free field
    • Bluetooth technology Low Energy (BLE) communication standard
    • Radio frequency (min/max) 2402 MHz / 2480 MHz
    • Default radio channels CH 37 / 38 / 39 (2402 MHz / 2426 MHz / 2480 MHz
    • Events for pressure or release (min/max) 2/3
    • Data transmission rate and modulation type 1 Mbit/s GFSK
    • NFC Forum Type 2 Tag configuration interface (ISO/IEC 14443 Part 2 and 3
    • Device ID single 48-bit device ID (factory setting
    • Security AES128 (CBC mode) with sequential code
    • Power supply Integrated kinetic energy recovery system, Energy Harvesting technology
    • Button inputs Up to four buttons or two rocker buttons
    • Operating temperature From -25°C to 65°C.
