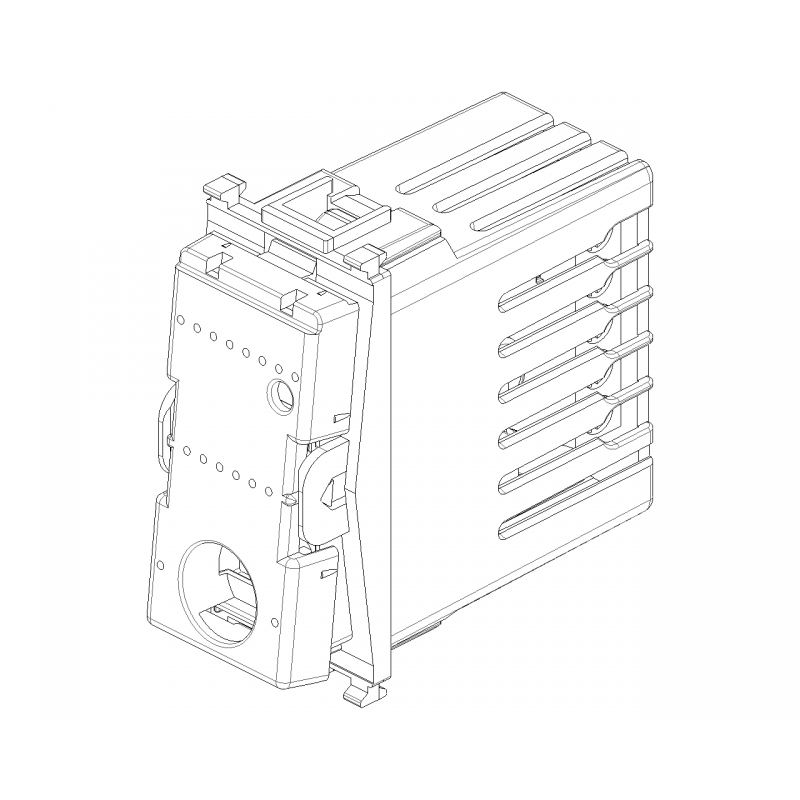

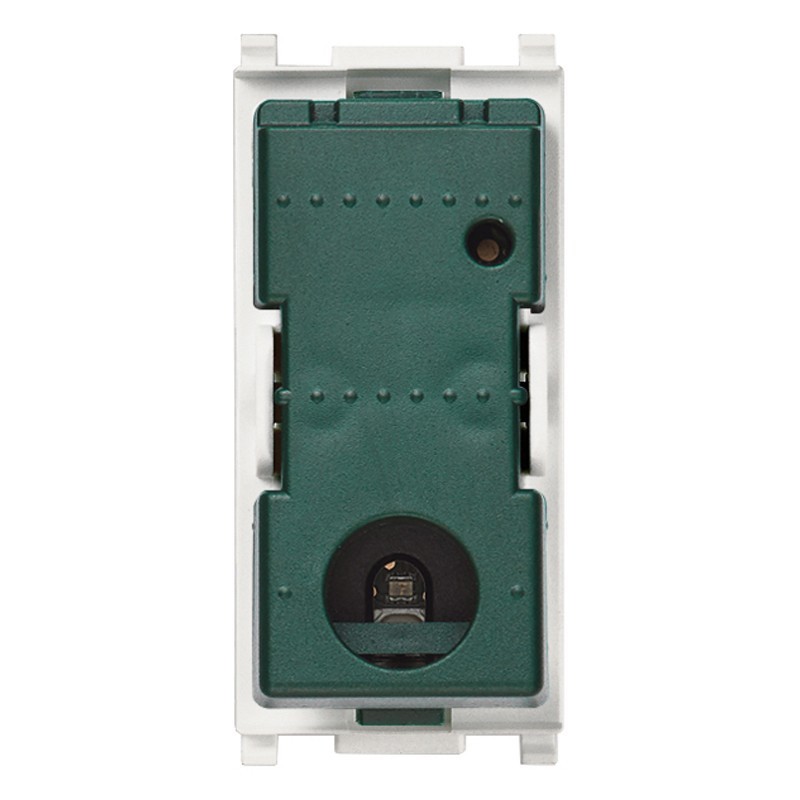

Vimar Plana IoT diverter mechanism 14592.0
VIW 14592.0
8007352628328
Vimar IoT connected diverter mechanism Plana series electronic VIEW Wireless:
- With relay output
- Voltage: 100-240V
- Frequency 50/60 Hz
- Suitable for 500W incandescent lamps, 100W LED lamps, 250 VA electronic transformers, 120W fluorescent lamps
To complete with Vimar Plana cover code 14021.
€33.74
Items Available: 179
: 90
Frequently bought together
Local or remote control, dual IoT technology on Bluetooth 5.0 standard for realization of VIEW Wireless mesh system and on Zigbee 3.0 standard, 1 input for external button for actuator control or scenario recall, RGB LED dark detection with intensity adjustment, power supply 100-240 V 50/60 Hz, to be completed with interchangeable buttons 1 module and 2 Plana modules.
Vanaggi:
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee Technology.
- Compatible with Alexa, Google Home and IFTTT, through the appropriate Zigbee gateway or hub
Features:
- Rated supply voltage: 100-240V, 50/60 Hz
- Power dissipation: 0.55 W
- Transmitted RF power: < 100mW (20dBm)
- Frequency range: 2400-2483.5 MHz

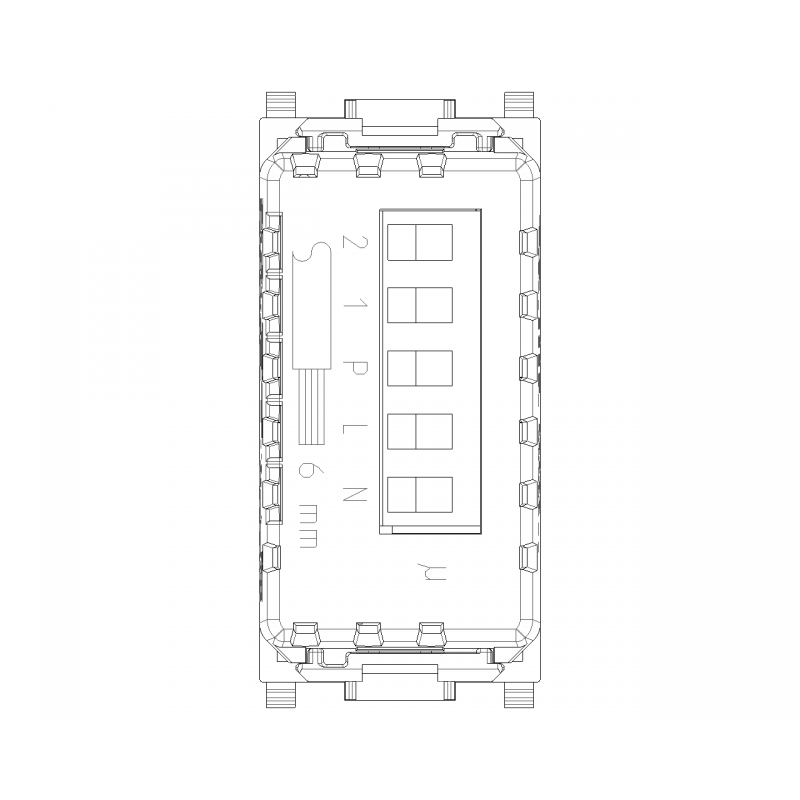

- Terminals: - 2 terminals (L and N) for line and neutral - 1 terminal (P) for connection to remote wired control (e.g. art. 20008- 19008-16080-14008). - 2 terminals (1 and 2) for diverter output
- Front button that is used both for load control and as a configuration button
- RGB LED indicating load status (settable from VIEW Wireless App) and configuration status (flashing blue)
- Operating temperature: -10 to +40 °C (for indoor)
- Degree of protection: IP20
- Configuration from VIEW Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
- Controllable by VIEW App.
The connected electronic diverter mechanism allows a load to be driven by the on-board push button, via a wireless connection and from traditional remote push button. The device has the ability to be controlled by two different radio standards (exclusive to each other): the Bluetooth mesh (default) or Zigbee (settable via VIEW Wireless APP).
The Bluetooth mesh network implies the presence of the 20597-19597-16497-14597 gateway while the dialogue via Zigbee requires a Zigbee gateway (such as Amazon Echo Plus, Echo Show or Echo Studio).
The device is equipped with:
- 2 interlocked relay outputs for realizing the diverter function
- Front button for controlling the connected load
Performs automatic opening of relays for thermal protection. Switching to zero crossing.
The electronic diverter can be connected to existing wired inverted/deviate to make connected load function.
IMPORTANT:
The electronic diverter must be supplied with the same L and N that supply the load. In the case of installation with wired diverters/inverters, the electronic diverter should be connected in such a way that it is always powered, thus installing it in place of the wired diverter furthest from the load.
Un pò caro, ma lì merita tutti, doppia connessione per comandarlo a distanza o integrarlo in un sistema domotico
prodotto in linea alle aspsettative , consigliato
Comprato per provarlo prodotto di una ditta stranota VIMAR
Un buon inizio per rendere la casa domotica, ottima l'idea di farlo funzionare o con WiFi o zigbee.
Unico peccato se lo trasformi in pilsante per dare solo un segnale il tempo minimo di attivazione è 1 secondo
Deviatore di elevata qualità e facile configurazione.
Ottimo prodotto, semplice da installare e configurare. Consigliato.
Ok. Il deviatore l'ho potuto utilizzare solo come pulsante al momento poiché ho problemi con l'aggiornamento del firmware del gateway 14597. Blocca tutta l'utilizzo in wireless.
