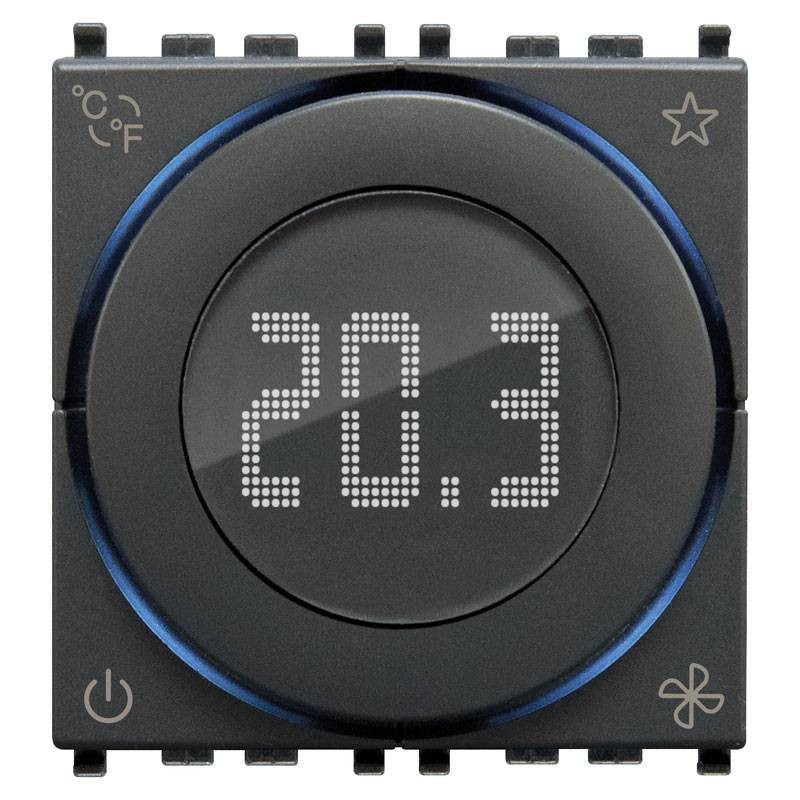

Vimar connected thermostat IoT2M grey 02974
VIW 02974
8007352754461
Vimar Connected Thermostat IoT2M 02974 - Grey, NO Relay Output, 3-speed and proportional Fan-Coil Control and IoT Functionality over Bluetooth 5.0.
-
IoT Technology: Bluetooth 5.0 for mesh View Wireless system
-
Power Supply: 100-240 V 50/60 Hz
-
Operating modes: stand-alone, Bluetooth, Zigbee
-
Inputs: 1 input for outdoor temperature sensor
-
Features: Control of heating, air conditioning, circulation pumps, burners, solenoid valves and temperature probes
-
LED backlighting: White, with intensity adjustment
-
Temperature control class: ON/OFF: Class I (1% contribution) - PID: Class IV (2% contribution)
-
Compatibility: Complete with Eikon, Arké, Plana plates
-
Modules: 2 modules
€125.08
Items Available: 27
: 12
Frequently bought together
Vimar Connected Thermostat IoT2M: Advanced control for fan-coil systems
The Vimar IoT2M Thermostat offers precise and customized control of heating, air conditioning systems and other equipment such as circulation pumps, burners, fan-coils, and solenoid valves. With IoT technology based on Bluetooth 5.0, it enables advanced wireless management, creating a mesh system for stable and powerful connection.
Convenience and versatility of operation
This smart thermostat is designed to be used in three modes of operation: stand-alone, Bluetooth, or Zigbee, offering unparalleled flexibility to adapt to various air conditioning and heating systems. You can choose the most suitable mode according to your needs, with the Bluetooth connection allowing you to control your environment directly via an app.
Advanced features for temperature control
The Vimar thermostat offers temperature control in both ON/OFF and PID modes for applications that require more precise and proportional control. White LED backlighting with intensity adjustment ensures optimal visualization even in low-light environments.
High compatibility and easy integration
This thermostat is compatible with Vimar's Eikon, Arké, and Plana series plates for seamless integration into the home or business environment. With an input for external temperature sensor, it is ready to optimize temperature management even in complex environments.
Quick and easy operation
Through the front buttons, the display, the thumbwheel, and the illumination of the bezel bordering it, it is possible to make the setting and display of all thermostat operation modes.
Acting on the thumbwheel sets a new setpoint. Specifically, for operation in Bluetooth technology:
-
with automatic operation mode, turning the thumbwheel switches the thermostat to manual operation for a time value set on the View app;
-
with automatic operation mode, when ignition advance is enabled, timed manual mode is available with a fixed time that is defined by the advance algorithm;
-
in manual operation or reduction, the thermostat remains in that mode and the setpoint is the one set by means of the thumbwheel
-
The thermostat can control one or more thermostatic heads 03989 or the fans of a fancoil via actuators item 03985 or item 03986
| Feature | Detail |
|---|---|
| Rated supply voltage | 100-240 V~, 50/60 Hz |
| Power dissipation | 0,55 W |
| Transmitted RF power | < 100mW (20 dBm) |
| Frequency range | 2400-2483.5 MHz |

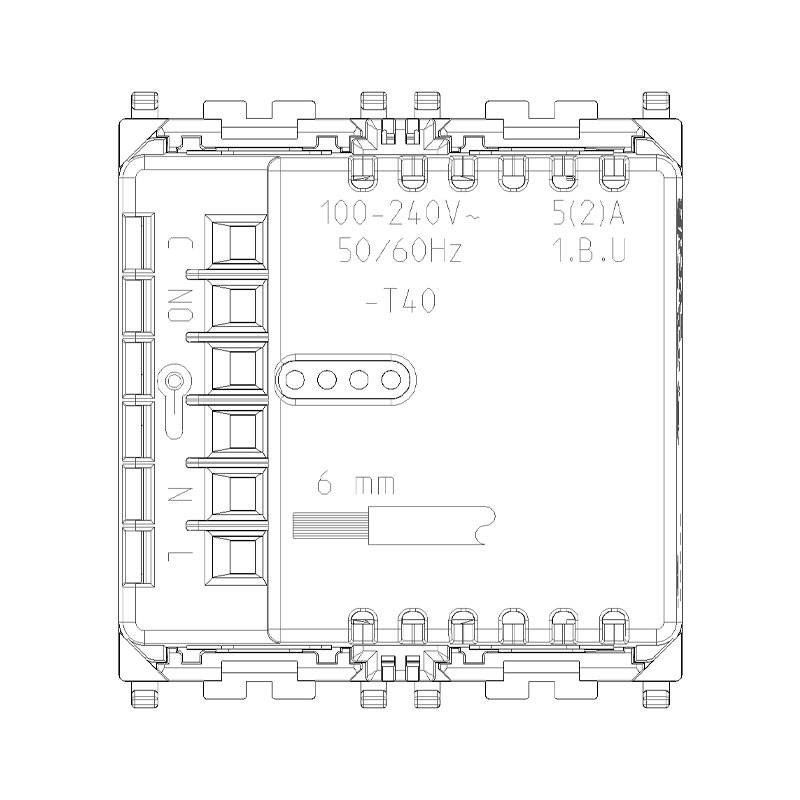

| Line/neutral terminals | 2 terminals (L and N) |
| Terminals for external probe | 2 terminals (compatible with art. 02965.1, 20432, 19432, 14432) |
| External probe cable | Max 10 m, twisted, min cross-section 0.5 mm² (art. 01840) |
| External probe management | Only via Bluetooth technology |
| Relay terminals | 2 C-NO terminals (dry contact) |
| Relay output | 5(2) A 240 V~ |
| Setpoint settable | 4 °C - 40 °C |
| Fancoil speed (3 speeds) | V1, V2, V3, Auto |
| Proportional fancoil speed | 33%, 66%, 100%, Auto |
| Head compatibility | Art. 03989 (one or more) |
| Internal probe accuracy | ±0.5 °C (15-30 °C), ±0.8 °C (at extremes) |
| Usage | Heating/Conditioning |
| Operating modes. | Automatic, Manual, Reduction, Economy, Protection, Off, Timed Manual (Bluetooth) |
| Control algorithms | ON/OFF or PID (configurable via Bluetooth) |
| Front keys | 4 (for commands, configuration/reset) |
| RGB LED | Configurable for output status/configuration (flashing blue) |
| Operating temperature | 0 °C ÷ +40 °C |
| Degree of protection | IP30 |
| Energy class ErP | ON/OFF: Class I (1%) - PID: Class IV (2%) |
| Device class | II |
| Manual cycles | 3.000 |
| Automatic cycles | 100.000 |
| Contact type | Micro disconnection |
| Action type | 1BU |
| Tracking Index (PTI) | PTI175 |
| Pollution situation | 2 |
| Rated impulse voltage | 4000 V |
| Software class | A |
| Reading resolution | 0,1 °C |
| Setting resolution | 0,1 °C |
| Update displayed temperature | Every 10 s |
| Ambient temperature display | 0 °C ÷ +40 °C |
| Adjustable temperature differential | 0.1 °C to 1 °C (from app) |
| Hourly programming | From app (hourly temperature setting) |
| Transport temperature | -25 °C TO +60 °C |
| Clock error | ≤ 1 s per day |
| Configuration | From View Wireless app (stand-alone or Bluetooth system) |
| Voice command compatibility | View app, Alexa, Google, Siri, HomeKit (Bluetooth) |
There are no reviews
Data sheet
- Type: Thermostats
- Model: With display
- Installation: Recessed
- WIFI: No
