Fracarro VHF antenna b3 6 elements BLV6F 218058
FRA 218058
8016978052400

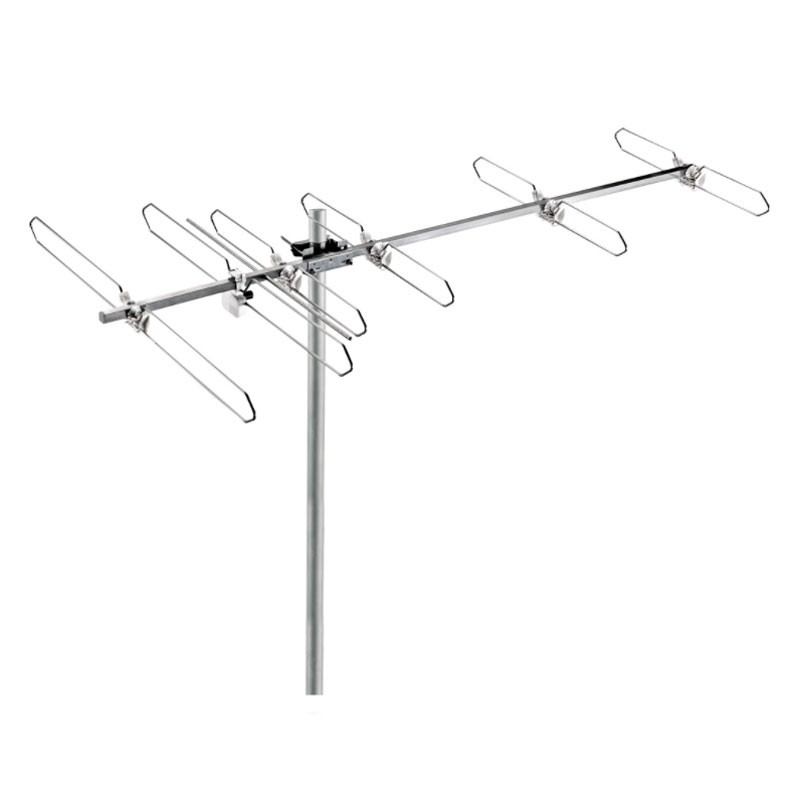

Fracarro BLV6F antenna - VHF band III, with the following characteristics:
- Channels: E5-E12
- Bandwidth: MHz 174-230
- Gain: dBi 13
- Forward/reverse ratio dB 24
- Reflection loss dB -22
- With F connector, 6 elements
Fracarro VHF antenna b3 6 elements BLV6F 218058
€50.35
€50.35
Tax included
Tax included
Pay in installments with Klarna
Items Available: 45
Advantages:
- Zenith adjustment as standard
- High gain, excellent impedance matching and excellent directivity
- Ensures exceptional durability of electrical and mechanical qualities
Features:
- Fracarro series
- Beam width (-3dB): ±24 °
- Wind resistance 120 Km/h (720N/m²) kg (N) 4.5 (44.14)
- Impedance Ohm: 75
- Maximum pole diameter (Ø) mm: 60
- Dimensions (W x H) cm 149 x 87
- Weight 2 Kg
Accessories included:
- Horizontal polarization: Included
- Horizontal polarisation: Included
- Vertical polarisation : PV10 (210011)
- Vertical polarisation: PV10 (210011)
- Auxiliary Cradle: N.P.
Data sheet
- Type:
- Antennas
- Version:
- VHF
