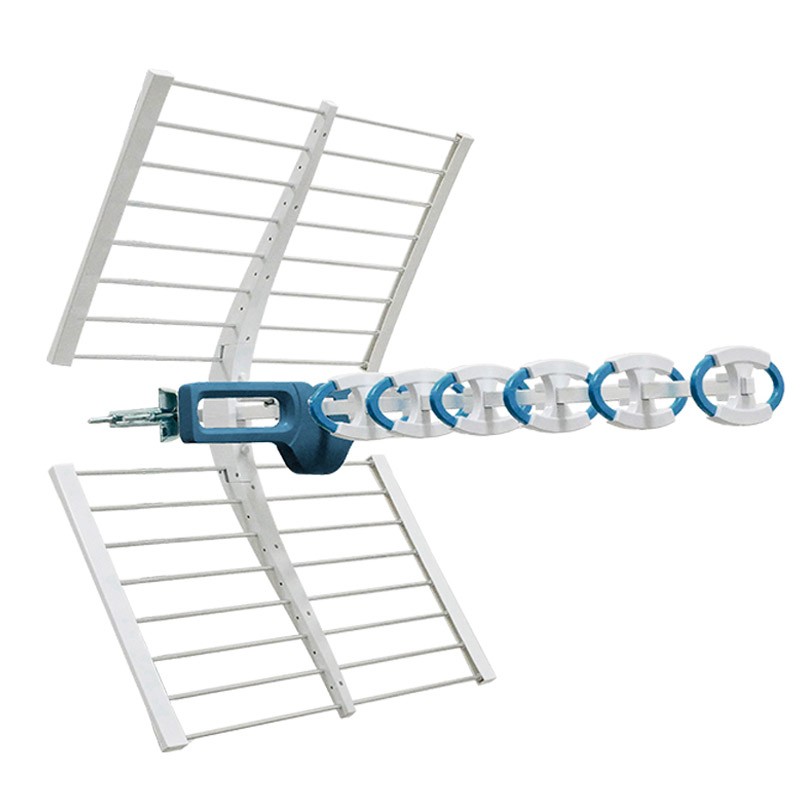

FTE Antenna with LTE UHF Filter Active 13-31DB LYBRA60PRO
FTE LYBRA60PRO
8055271134826
FTE antenna with single cradle LTE filter, supports 9 elements with gain of 13 dBi in passive mode and 31 dBi in active mode with CAG. A/D ratio of 35 dB. Highly directive antenna, optimal for receiving DTT signals.
€75.15
Items Available: 1
Strengths:
- Pre-assembled elements, dipole and quick-connect reflectors
- Horizontal / vertical polarization with zenith adjustment
- High fixed output level
- Automatic Gain Control
- Integrated 4G/LTE filter
- Maximum signal guarantee
- Easy mounting without tools.
Applications:
- Installs in areas where reception is problematic and fluctuating, with Automatic Gain Control guarantees a high fixed output level
- Thanks to the LTE dipole, it allows to reduce the electromagnetic field generated by the receivers (BTS) of mobile telephony on the former television frequencies C61-C69.
Technical Data
- N° elements 9
- UHF Band
- Channels C21 ÷ C60
- Gain - dBi Active mode: 31 with CAG; Passive mode: 13
- Forward/reverse ratio - dB 35
- Beam width -3 dB (H/V)-° 40 / 48
- Wind resistance 120 km/h (720 N/m2) - N 88
- Connector type F
- Impedance - Ohm 75
- Horizontal and vertical polarisation Yes
- Pole connection diameter - mm 30 ÷ 58
- Dimensions (W x H x D) - mm 913 x 620 x 779
- Unit weight - Kg 2,7
- Reflector Ø 6 x 0.5 mm / curtain
- Cradle dimensions - mm 18 x 18 x 0,75
- Accessories included F connector + protection cap.
Data sheet
- Type: Antennas
- Version: UHF
