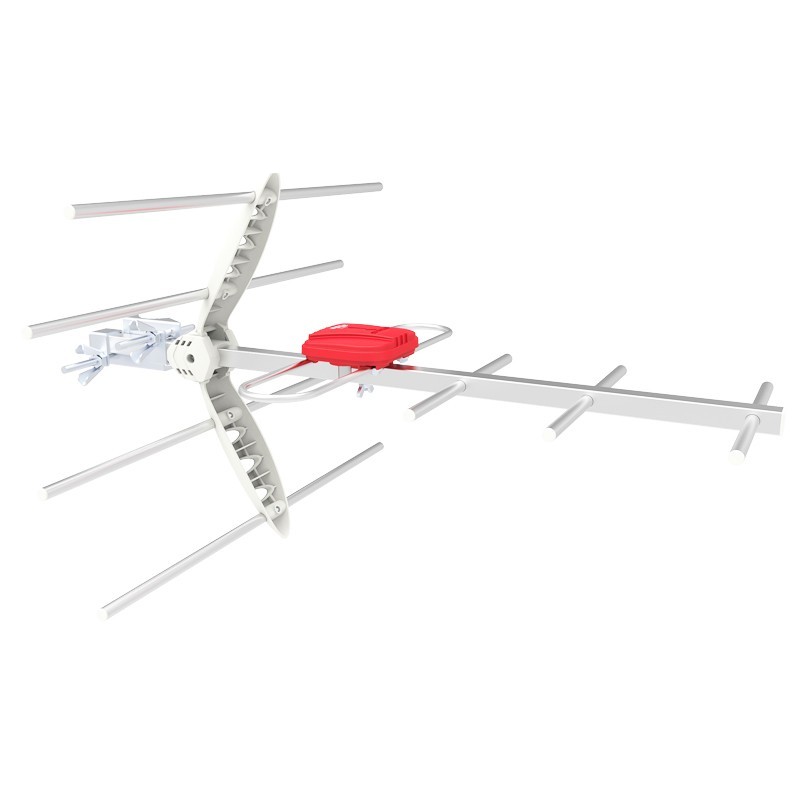

Antenna Fte 5 elements UHF LTE/5G 9dBi YAGI5-5G
FTE YAGI5-5G
8050162332077
FTE YAGI5-5G antenna with 5 UHF elements and LTE/5G filter, gain up to 9 dBi: robust structure with Ø8 mm aluminum rods, quick installation and H/V polarization for clean terrestrial digital reception.
-
5 elements with LTE/5G filtering
-
Polarization: horizontal and vertical
-
Band: UHF
-
Channels: C 21 ÷ C 48
-
Operating frequency: 470 ÷ 694 MHz
-
Gain: 6 ÷ 9 dBi
-
Front/back ratio: 13 dB
-
Connector: F
-
Pole mount diameter: 28 ÷ 60 mm
-
Dimensions (L x H x D): 430 mm - cradle: 16 x 16 x 0.75 mm
-
Included accessories: F Connector plus Protective Cap
€17.08
Items Available: 10
: 9
Antenna FTE 5 elements: stable UHF reception without LTE/5G interference
The FTE YAGI5-5G antenna is a UHF band Yagi designed to optimize terrestrial TV signal reception, minimizing interference from LTE/5G networks. The choice of an improved mechanical structure allows for reliable installation even in challenging outdoor conditions, with consistent performance over time. Thanks to the gain of up to 9 dBi, the antenna is particularly suitable for domestic and communal systems where it is necessary to improve the UHF signal level and obtain a stable image, especially in areas with weaker coverage or nearby radio disturbances.
Robust aluminum structure with 8 mm diameter and reinforced cradle
One of the strengths of the YAGI5-5G is its solidity: it uses aluminum rods/tubes with a diameter of 8 mm, designed to better withstand wind and vibrations. The 16x16 mm cradle increases the overall robustness of the antenna, improving orientation stability and reducing the need for adjustments over time.
Quick installation and installation flexibility
The antenna comes with pre-assembled elements, making installation faster and tidier. Additionally, horizontal and vertical polarization allows the installation to be adapted to the system specifications and the direction of the repeaters, simplifying alignment to achieve the best possible reception. The mounting is compatible with poles of diameter 28–60 mm, making it suitable for both quick replacements on existing systems and new installations.
F connector and included accessories: secure and protected connection
To ensure a stable connection, the YAGI5-5G uses an F connector and includes an F connector + protective cap, useful for protecting the connection point from weather elements and improving signal continuity over time.
| TECHNICAL DATA | |
|---|---|
| Number of elements | 5 |
| Band | UHF |
| Channels | C 21 ÷ C 48 |
| Operating frequency - MHz | 470 ÷ 694 |
| Gain - dBi | 6 ÷ 9 |
| Front/back ratio - dB | 13 |
| Beamwidth -3dB (H/V) | 50 / 60 |
| Connector type | F |
| Impedance - Ohm | 75 |
| Horizontal and vertical polarization | Yes |
| Pole mount diameter - mm | 28 ÷ 60 |
| Dimensions (L x H x D) - mm | 430 |
| Reflector - mm | Ø 8 x 0.8 / aluminum curtain |
| Reflector size - mm | 355 x 180 |
| Element diameter - mm | 8 |
| Cradle dimensions - mm | 16 x 16 x 0.75 |
| Included accessories | F Connector + Protective Cap |
