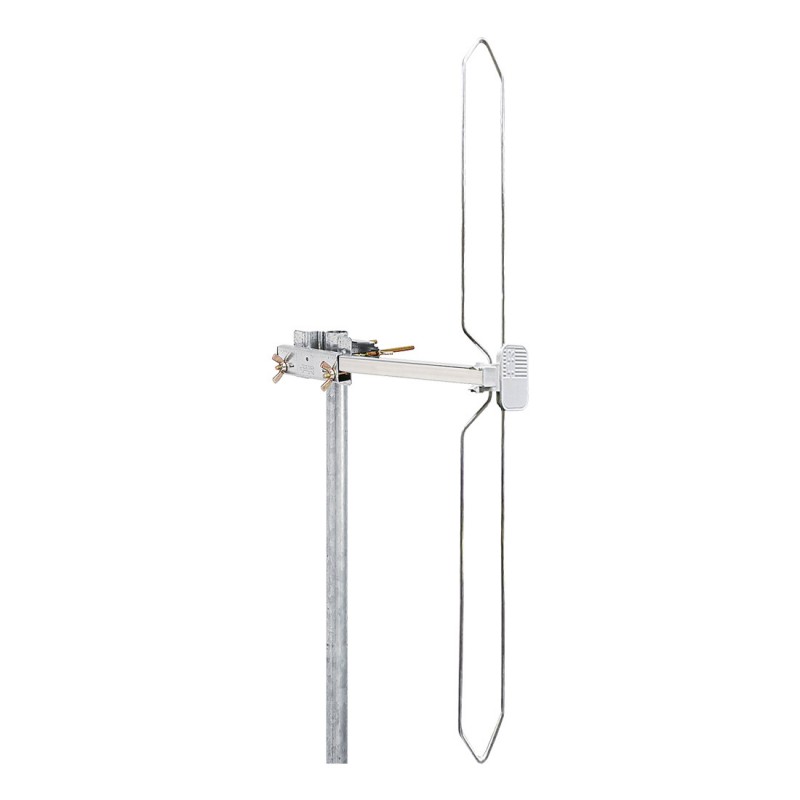

Fracarro Antenna DAB+ FM band with F connector 174-240 MHz
FRA 213025
8016978109753
Fracarro antenna for FM and DAB+ band (174–240 MHz) with F connector, designed for stable reception of digital radio signals. Compact, reliable, and suitable for outdoor installations:
-
Dedicated to FM and DAB+ reception (174–240 MHz)
-
Gain 2.1 dBi with omnidirectional coverage
-
360° beamwidth for uniform reception
-
Integrated F connector for quick installation
-
Impedance 75 Ω, compatible with domestic and professional systems
-
Design optimized for modern digital radios
-
Horizontal polarization included
-
Durable structure, suitable for outdoor use
€29.59
Items Available: 7
: 4
Antenna Fracarro DAB+ FM band with F connector, for digital radio signal reception
The Fracarro antenna for FM and DAB+ band is designed to ensure stable, clean, and reliable reception of modern digital radio signals. Thanks to its design optimized for the frequency range 174–240 MHz, it represents the ideal choice for domestic systems, professional installations, and centralized systems where clear and uniform reception of DAB+ and FM broadcasts is required.
Its compact structure (59 x 8 cm) makes it easy to install even in small spaces, without compromising performance. The construction approach oriented towards omnidirectional reception allows stable listening without the need for precise aiming.
Reliable performance and simplified installation
With a gain of 2.1 dBi and a 360° beamwidth, the antenna offers uniform behavior in every direction, proving particularly useful in areas where signals come from multiple transmitters or undergo reflections.
The integrated F connector simplifies the connection to standard coaxial cables, ensuring a stable connection with low losses. The robust structure is designed to withstand external environmental conditions, with a wind resistance of 2 kg (19.6 N) at 120 km/h, ensuring durability over time and safe installation on poles up to 60 mm in diameter.
Technical characteristics of the Antenna
| General data | |
|---|---|
| Elements | 1 |
| Band | Buffer |
| Channel | Buffer |
| Bandwidth | 174–240 MHz |
| Dimensions | 59 × 8 cm |
| Performance | |
| Gain | 2.1 dBi |
| Front/back ratio | Omni |
| Return loss | –16 dB |
| Beamwidth (3 dB) | 360° |
| Construction Characteristics | |
| Wind load (120 km/h) | 2.0 kg (19.6 N) |
| Maximum mast diameter | 60 mm |
| Connector | F |
| Impedance | 75 Ω |
| ACCESSORIES | |
|---|---|
| Horizontal polarization | Included |
| Polarization tilt adjustment | No |
| Vertical polarization | No |
| Auxiliary arm | No |
