IP-Com Outdoor CPE O1-5G 5GHz 11AC 867Mbps Directional Antenna 9dBi CPE5
67V CPE5
6932392828877
IP-Com O1-5G 5GHz Outdoor CPE, designed to provide efficient and stable wireless solutions for PtP (Point-to-Point) and PtMP (Point-to-Multipoint) applications. Ideal for video surveillance transmission and broadband wireless access, with the following features:
-
Wireless speed: Up to 867 Mbps with 11AC technology
-
Directional antenna: 9dBi for stable network up to 1 km
-
Flexible power supply: Supports passive PoE 12V 1A
-
IP65 rating for weather resistance
-
Centralized software for configuration and monitoring
€41.59
Items Available: 26
: 12
Outdoor CPE IP-Com O1-5G 5GHz 11AC 867Mbps Directional Antenna 9dBi
O1-5G 5GHz Outdoor CPE is designed for PtP&P2MP solutions for video surveillance transmission and wireless broadband access. It adopts 11ac wireless technology, the maximum wireless speed can reach up to 867 Mbps. It is equipped with 9 dBi dual-polarization directional antenna to provide an efficient way to pick up and maintain a stable long-range connection.
Easy installation with auto-bridge
With the auto-bridge function, CPE devices automatically connect to base stations after power on, making it perfect for less experienced users. This function is especially useful for CCTV surveillance applications, simplifying network configuration.
Centralized management and customization
With PC CPE Assistant software, multiple devices can be configured and managed from a single interface. Features such as power adjustment, reboot scheduling, and firmware updates simplify network management.
Resistant to all weather conditions
Designed with an IP65 waterproof housing and high-quality materials, the O1-5G CPE is resistant to rain, sun and extreme temperatures (-30°C to 60°C), ensuring optimal performance in any outdoor environment.
PtP connection for CCTV transmission
One works as AP mode and the other as Station mode to create a long-distance wireless connection for video surveillance.
PtP connection for Internet sharing
One functions as AP mode and the other as Station mode to create a long-distance wireless connection for Internet sharing between buildings or neighbors.
Wireless Internet access for private ISPs
Connect wirelessly to the private ISP's tower signal to share the Internet with the local wireless and wired network.

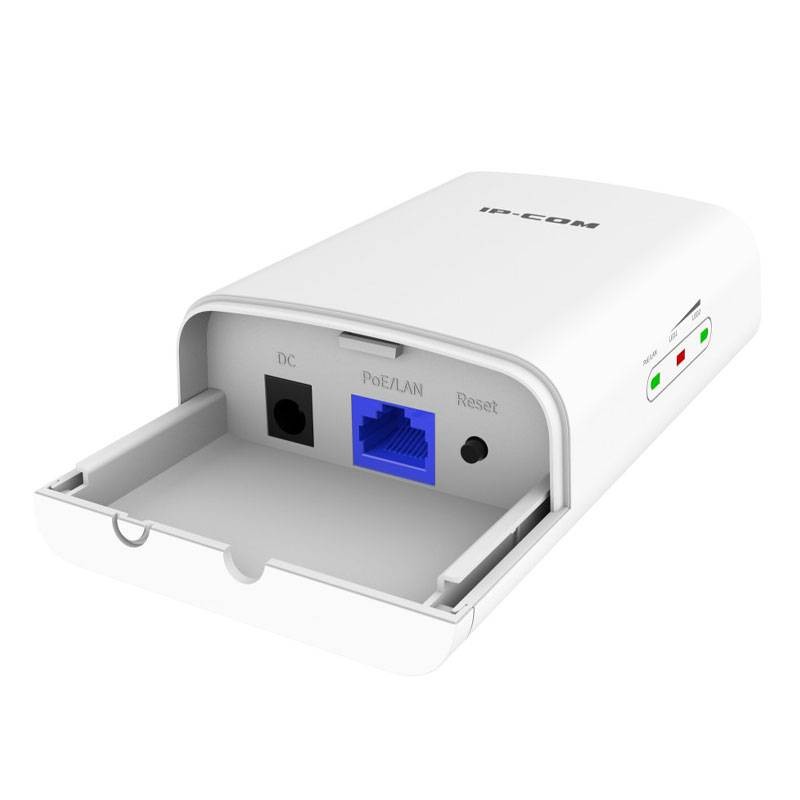

Hardware Features
| Feature | Detail |
|---|---|
| Frequency range | 5 GHz |
| Standards Compliant | IEEE 802.11a/n/ac |
| Maximum wireless speed | 867 Mbps |
| Interfaces | 1 LAN port 10/100Mbps |
| Antennas with gain | 9dBi |
| Antenna beam width | Horizontal: 30° Vertical: 30° Elevation: 30° |
| Reset button | Present |
| Power consumption | 4,7 W |
| Waterproof level | IP65 |
| LED Indicator | PoE/LAN, LED1, LED2 |
| Power supply method | Passive PoE 12V 1A DC |
| Voltage range | 9-13V DC |
Software Features
| Feature | Detail |
|---|---|
| Operation mode | AP/Station |
| Wireless radio support | Enable/Disable |
| SSID hidden support | Yes |
| Client isolation support | Yes |
| Channel bandwidth | 20/40/80 MHz |
| Support for access control | Yes |
| Client limitation | Weak signal |
| Transmit power | Adjustable by 1dBm |
| Wireless security | 64/128 WEP, WPA-PSK, WPA2-PSK |
| VPN | PPTP, L2TP |
| Management | PC Controller Software |
Environmental Characteristics
| Feature | Detail |
|---|---|
| Operating Temperature | -30°C ~ 60°C |
| Storage temperature | -40°C ~ 70°C |
| Operating humidity | 10%~90% non-condensing |
| Storage humidity | 10%~90% non-condensing |
Dimensions
| Size | Value |
|---|---|
| Height | 132mm |
| Width | 72 mm |
| Depth | 46.3 mm |
Certifications
| Certification | Present |
|---|---|
| CE | Yes |
| FCC | Yes |
| RoHS | Yes |
Package Contents
| Element | Quantity/Detail |
|---|---|
| Outdoor CPE | 1*5GHz 9dBi AC 867Mbps |
| Power supply | Included |
| PoE Injector | Included |
| Help | Quick installation guide |
Compatibility
| Compatibility | Operating System |
|---|---|
| Windows | 8, 10, 11 |
| Mac | Yes |
There are no reviews
Data sheet
- Type: Antennas
