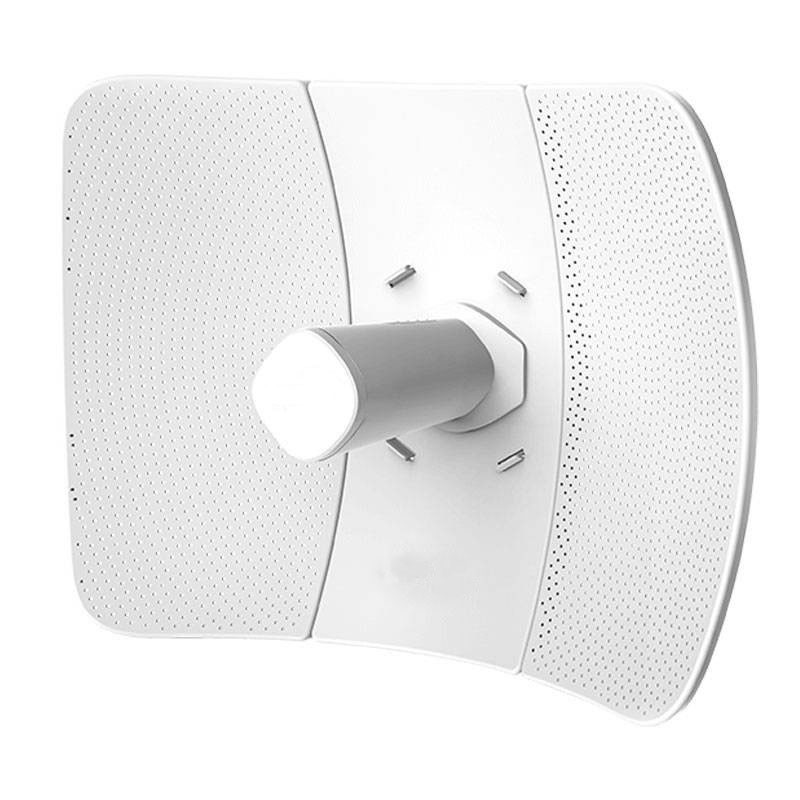

IP-Com CPE Outdoor Gigabit Outdoor 867Mbps Directional Antenna 23dBi CPE15
67V CPE15
6932392828259
IP-Com Gigabit Outdoor CPE, offers efficient solutions for long distance wireless connections, advanced technology to ensure stability and transmission speed up to 25km, with the following features:
- 5GHz frequency and speeds up to 867Mbps
- 23dBi directional antenna for long-range connectivity
- Gigabit Ethernet port for maximum performance
- 6000V lightning protection
- IP65 weatherproof housing
- Easy installation with PoE support
€78.66
Items Available: 16
: 9
Outdoor Gigabit IP-Com Outdoor CPE 867Mbps Directional Antenna 23dBi
O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed for PtP and PtMP solutions for private ISP wireless connectivity, CCTV surveillance and data transmission. It features 23dBi dual directional polarization antenna to provide an efficient way to pick up and maintain stable long distance connectivity up to 25km. It adopts auto-bridging technology, two CPEs can connect with each other automatically to simplify configuration.
High performance with 11ac technology and TD-MAX
Equipped with wave2 11ac technology, O9 achieves wireless speeds of up to 867 Mbps and real bandwidth of 450 Mbps in PtP configurations. The TD-MAX proprietary protocol optimizes efficiency in outdoor networks, reducing latency and improving throughput over conventional standards.
ProprietaryTD-MAX-Tenda TDMA protocol: TD-MAX is Tenda's proprietary TDMA (Time Division Multiple Access) protocol to improve performance and capacity for outdoor WISP wireless application scenarios. In an outdoor environment, the CPE uses highly directional antennas to connect to the Basestation from distances that can span several kilometers. The CPE cannot sense each other, they become "hidden nodes" and cannot coordinate access to the wireless channel. Therefore, the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network expands, these collisions increase exponentially, increasing latency and reducing throughput. With TD-MAX, it coordinates all data transmission and allocates time to active clients to provide greater noise immunity performance than conventional 802.11 CSMA/CA protocol.
Rugged and weatherproof design
The IP65-certified housing protects the device from dust, rain and adverse environmental conditions. In addition, 6000V surge protection ensures safe operation even in thunderstorms, making it ideal for outdoor installations.
Easy installation and centralized management
LO9 includes a three-axis alignment for quick and accurate installation without special tools. CPE Assistant software enables centralized management, simplifying network monitoring, updating and maintenance directly from a single PC.
Multiple application scenarios:
Long-distance wireless connection: One works as AP mode and the other as Station mode to create a long-distance PtP wireless connection for private ISP wireless connectivity, CCTV surveillance, and data transmission
WISP (Client+Router) Mode: Connect wirelessly to WISP station/hotspot mode to share the Internet with wireless and wired local area network
Detailed technical specifications:
- Frequency: 5GHz
- Wireless Speed: Up to 867Mbps
- Antenna: Directional, dual polarization, 23dBi
- Ethernet Port: 1 x Gigabit
- Protection: Lightning 6000V, IP65 certification
- Operating Modes: AP, Station, WISP
- Range: Up to 25km
- Power supply: PoE, cable up to 60 meters
There are no reviews
Data sheet
- Type: Antennas
