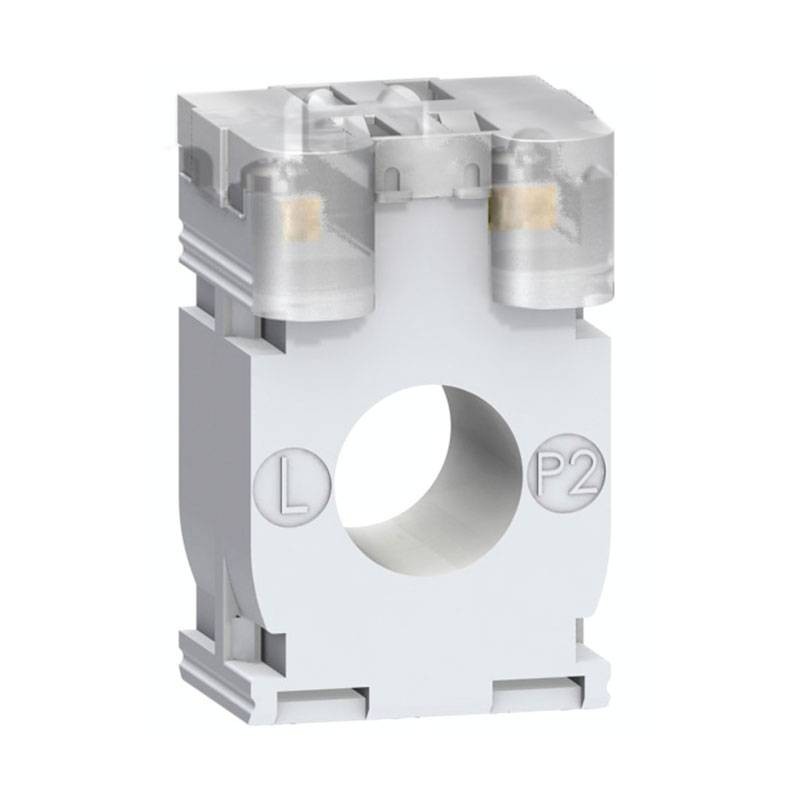

Schneider 50/5A Amperometric Transformer for Wires 21mm METSECT5CC005
SNR METSECT5CC005
3303430164517
Schneider tropicalized Amperometric Transformer for 21mm cables with the following characteristics:
- Secondary current: 5A
- Rated current: input: 50A
- Conventional thermal current in air Ith: 3 kA
- Dynamic resistance current: 2.5 Ith
- Rated operating voltage Ue: 720 V "AC" "50/60 Hz"
- Rated insulation voltage Ui: 3 kV
- Rated impulse withstand voltage Uimp: 3 kV
Schneider 50/5A Amperometric Transformer for Wires 21mm METSECT5CC005
€25.33
€25.33
Tax included
Tax included
Pay in installments with Klarna
Items Available: 16
Further Schneider circuit breaker combinations:
Characteristics:
- Accuracy class: Class 1 at 1.25 VA - Class 3 at 1.5 VA
- Mounting mode: Attachment With screws
- Mounting medium: Mounting plate - DIN rail
- Insulation class: B
- Relative humidity: 0/95 %
- Operating environment temperature: -25/60 °C
- Degree of protection: IP20
Dimensions and weight:
- External height: 65 mm
- External width: 44 mm
- Frame depth: 30 mm
- Total depth: 37 mm
- Diameter: 21 mm
- External cable diameter: 21 mm
- Weight: 190 grams
There are no reviews
Data sheet
- Type:
- Toroidal Transformers
- Amps:
- 50A
