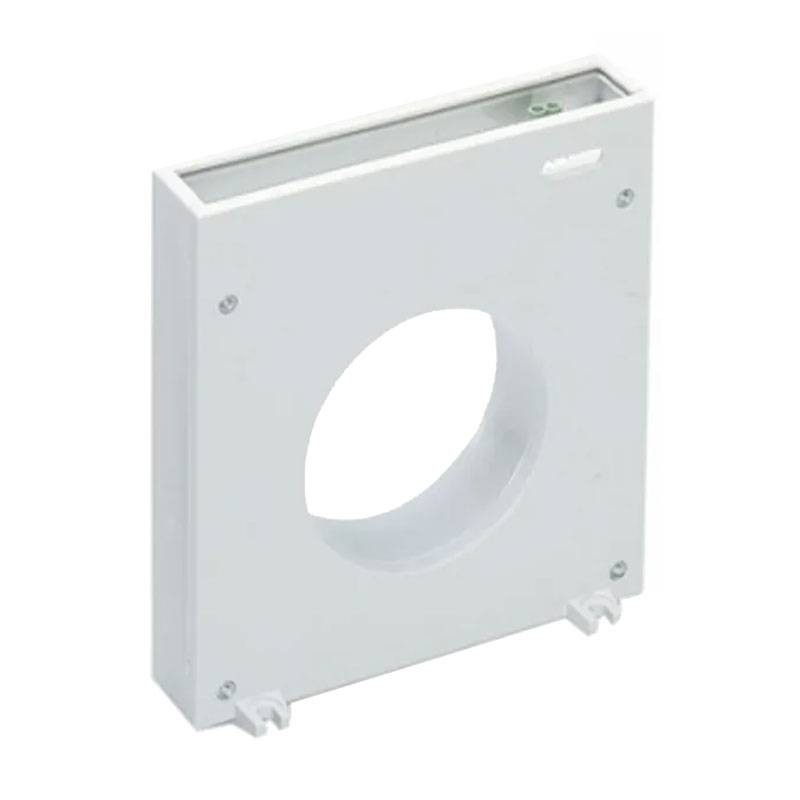

Chint RT1-60 toroidal current reducer 60mm diameter 115016
CHT 115016
8058776750621
Chint RT1-60 toroidal current reducer:
- IEC 60947-2 reference standard
- Degree of protection IP20
- Dimensions (h)x(l)x(p) 110x100x30 mm
- Toroid diameter 60 mm
- Type closed/open Closed toroid
- Additional information for RDC TYPE A
€82.23
Items Available: 3
: 2
RT1 series closed-type toroidal current reducers with diameters from 35 to 210 mm for RDC Type A and for RDC Type B. These devices must be installed upstream of the lines of the loads to be protected or supervised.
All active conductors (both phase and neutral) should be placed inside, but not the earth conductor. It is suggested to choose the toroidal reducer according to the diameter of the conductors or bus bar passing inside considering an appreciable margin. Diameter: 35 to 160 mm.
There are no reviews
Data sheet
- Diameter: 60mm
- Type: Toroidal Transformers
