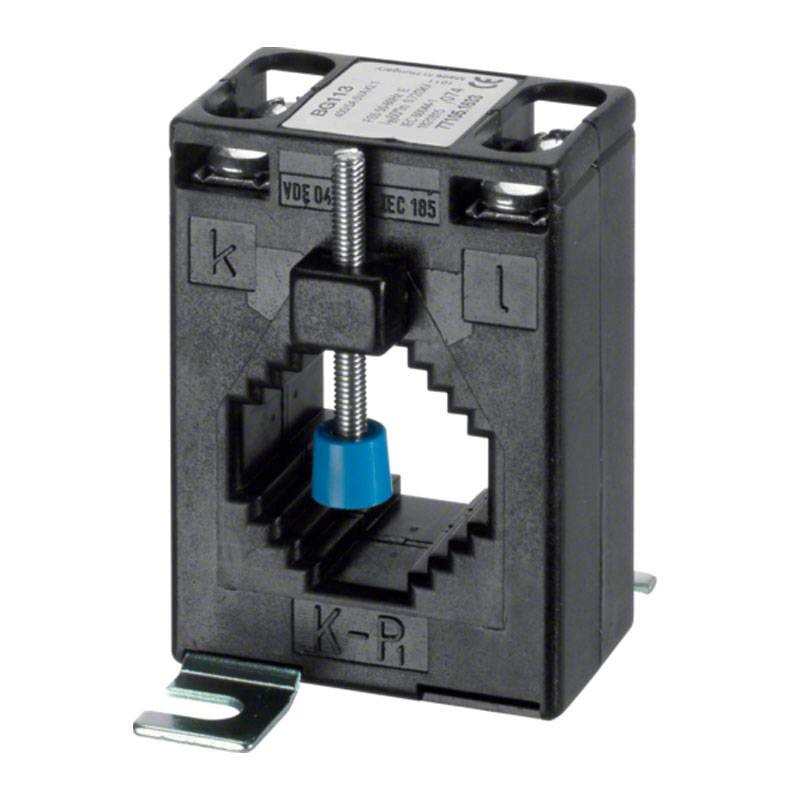

Hager 400-5 A Current Transformer BG SRC04005
HAG SRC04005
4049857139361
Hager current transformer, with the following characteristics:
- Rated insulation voltage: 3 kV
- Maximum primary current: 400 amps
- Maximum secondary current: 5 A
- Primary current: 400 A
- Number of inputs: 1
- Transformation ratio: 400A, 5A
- Enclosure degree of protection: IP10
€31.67
Items Available: 6
: 3
Features:
- Total power dissipation: 3.6 W
- Depth of the installed product: 30 mm
- Installed product height: 70 mm
- Installed product width: 50 mm
- Aperture width: 29.5 mm
- Aperture height: 20 mm
- Minimum cross-section with flexible cable: 1.5 / 6mm²
- Minimum cross-section with rigid cable: 1.5 / 6mm²
- Type of connection: screw
- Operating temperature: -40/+40°C
- Storage/transport temperature: -40/+40 °C
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Amps: 400A
