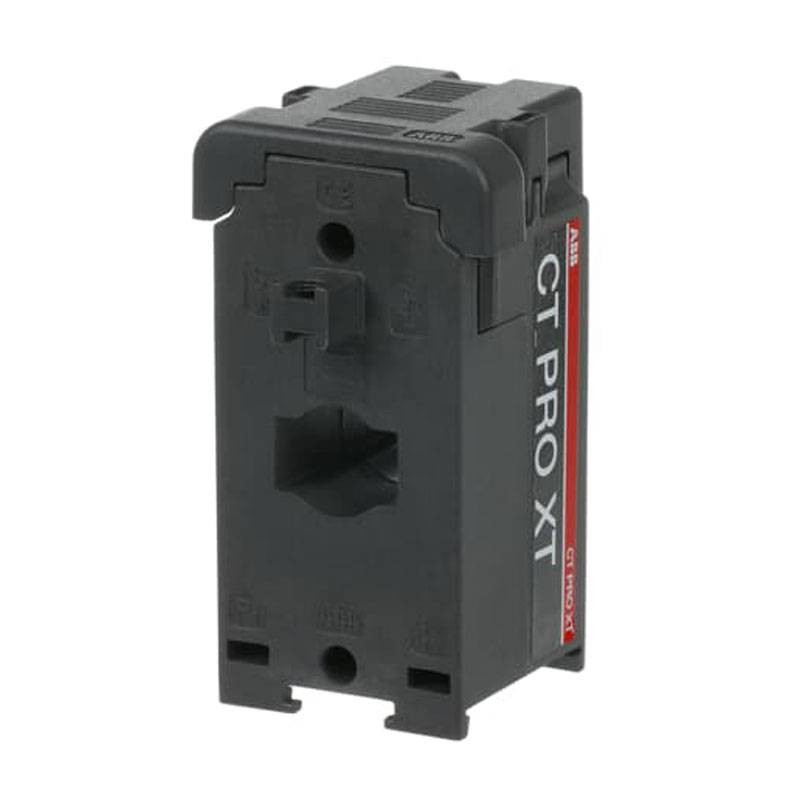

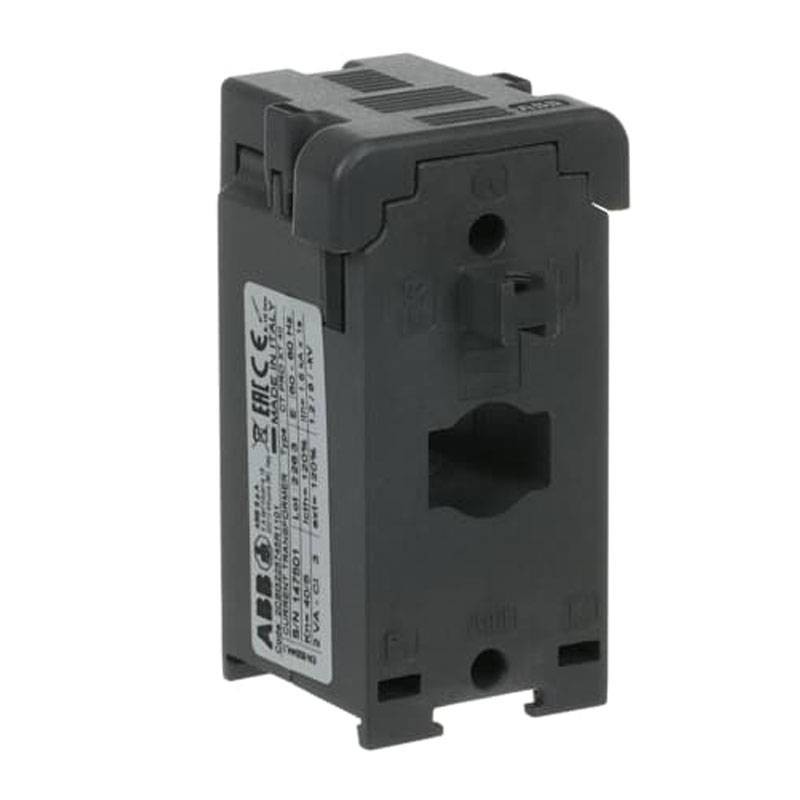

Abb Amperometric transformer CT PRO XT 60A 2VA G225765
ABB G225765
Abb CT PRO XT 60 amperometric transformer with the following characteristics:
- Rated current: 60A
- Power: 2VA
- Power loss: 15 W
- Cable section: 18 mm
- Degree of protection: IP30
€24.86
Items Available: 13
: 4
The current transformer or CT, in its simplest form, consists of two windings (primary and secondary) insulated from each other and a magnetic core on which the windings are wound.
Characteristics:
- Rated primary current: 60A
- Rated secondary current: 5A
- Current limit function: FS5
- Frequency: 50/60 Hz
- Apparent power output: 200 VA-A
- Secondary output connection: Screw connection
- Number of inputs: Primary 1
- Mounting type: Through Primary
- Nominal section: 20 x 10 mm
- Ambient temperature: Operating -5 ... 50 °C
- Width: 45 mm
- Height: 26.5 mm
- Depth: 69 mm
There are no reviews
Data sheet
- Type: Toroidal Transformers
- Cross-Section: 18mm
- Amps: 60A
