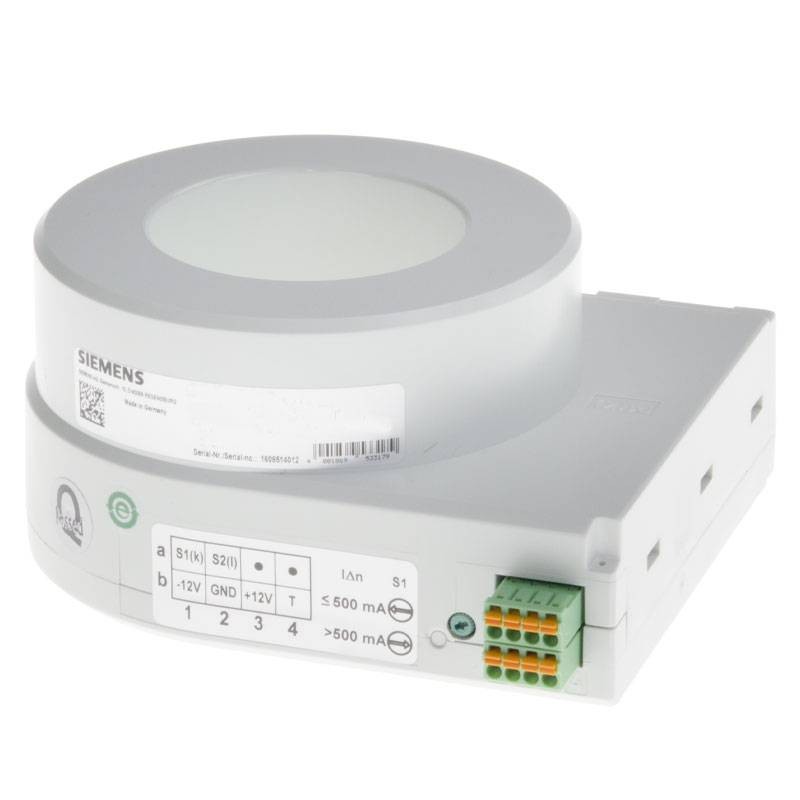

Siemens Summation current transformer Type B 35mm 30 mA 1A 5SV87012KK
SIE 5SV87012KK
4001869434766
Summation current transformer Type B 30 mA, with an inner diameter of 35 mm, rated voltage up to 690V and can monitor a rated use current of 80A, with the following characteristics:
- Type B, transformer inner diameter: 35 mm, rated current 1 A
- Suitable for AC and DC networks, up to 690V
- Summation transformer with a sensing capacity of 30 mA - 1A
- Degree of protection: IP20
- Plug-in electrical connection for quick installation
The Type B Summation current transformer is designed to monitor leakage currents in AC and DC networks. And an ideal solution for safe detection of residual currents.
€578.59
Items Available: 16
: 2
Frequently bought together
Siemens Type B 35mm 30 mA 1A Summation current transformer
This current summing transformer is designed to detect and monitor leakage currents up to 30 mA in AC and DC networks. With a rated use voltage of up to 690 V and a rated use current of 80 A, it offers reliability and protection in industrial and residential applications.
Compact design and quick plug-in connection
This transformer is easy to install in small spaces, reducing wiring time. It is compatible with cable cross-sections up to 6 x 0.75 mm², making installation safe and versatile.
Efficient operation and high pulse resistance
The transformer is designed to operate on both AC and DC operating voltages and supports an impulse withstand voltage of 8 kV. It is resistant to harsh environmental conditions, with up to 95% relative humidity and an operating temperature between -10 and +55 degrees
Detailed specifications:
- Inner diameter: 35 mm
- Sensing current: 30 mA, rated current 1 A
- Rated operating voltage: 690 V
- Impulse withstand voltage: 8 kV
- Electrical connection: Plug-in connection
- Degree of protection: IP20
- Dimensions: Height 55 mm, Width 99.5 mm, Depth 79.2 mm
- Power consumption: Maximum 2.5 VA
- Environmental compatibility: Relative humidity up to 95%, operating temperature: -10/+55 degrees
There are no reviews
Data sheet
- Diameter: 35 mm
- Type: Toroidal Transformers
- Degree of protection: IP20
- Amps: 1A
