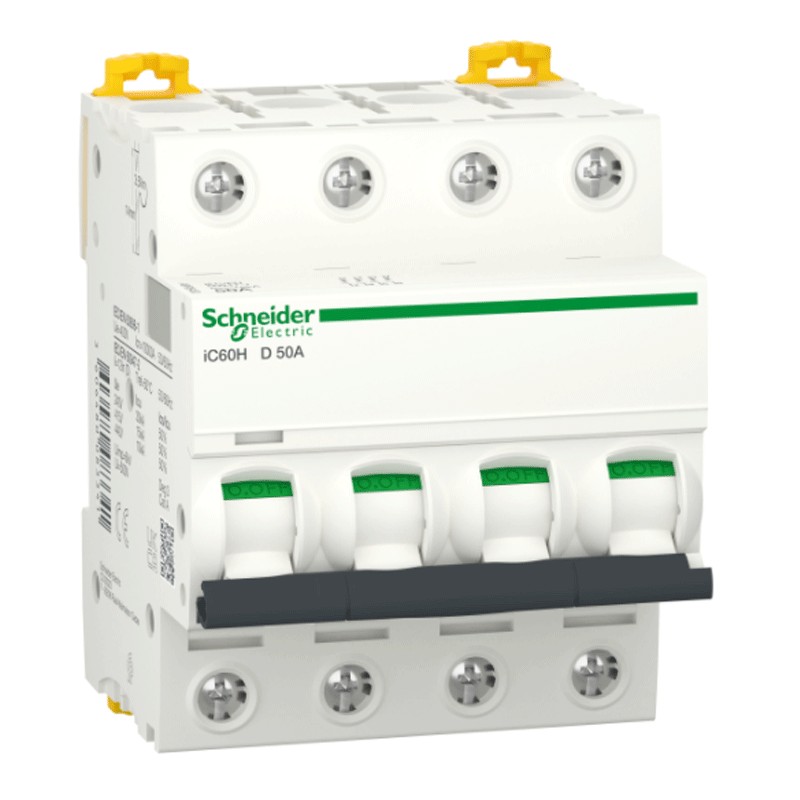

Circuit breaker-Schneider 4P 50A 10KA D 4 modules A9F85450
SNR A9F85450
3606480083341
Circuit breaker-Schneider 4P 50A 10KA D 4 modules A9F85450
€225.14
Items Available: 3
: 1
Frequently bought together
Device application: the Distribution Range: Acti 9 The type of product or component: Switch, modular Product name: IC60 Short name: IC60H Number of poles: 4P Number of poles protected: 4 Rated current [In]: 50 Network type: AC, DC Technology trip unit: thermal magnetic Code of the curve: D Interrupting rating: 10 kA Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz 10 kA Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 10000 A Icn conforming to EN 60898-1 - 400 V AC 50/60 Hz, 10000 A Icn conforming to IEC 60898-1 - 400 V AC 50/60 Hz 15 kA Icu conforming to EN 60947-2 - 180...250 V DC 15 kA Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 15 kA Icu conforming to IEC 60947-2 - 180...250 V DC 15 kA Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 30 kA Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 30 kA Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 42 kA Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 42 kA Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz Category of use: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 An aptitude for slicing: Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, You conform to IEC 60898-1, Is compliant to IEC 60947-2 Reference standards: EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: D
- Breaking capacity: 10KA
- Amps: 50A
- Circuit Protections: Circuit breakers
