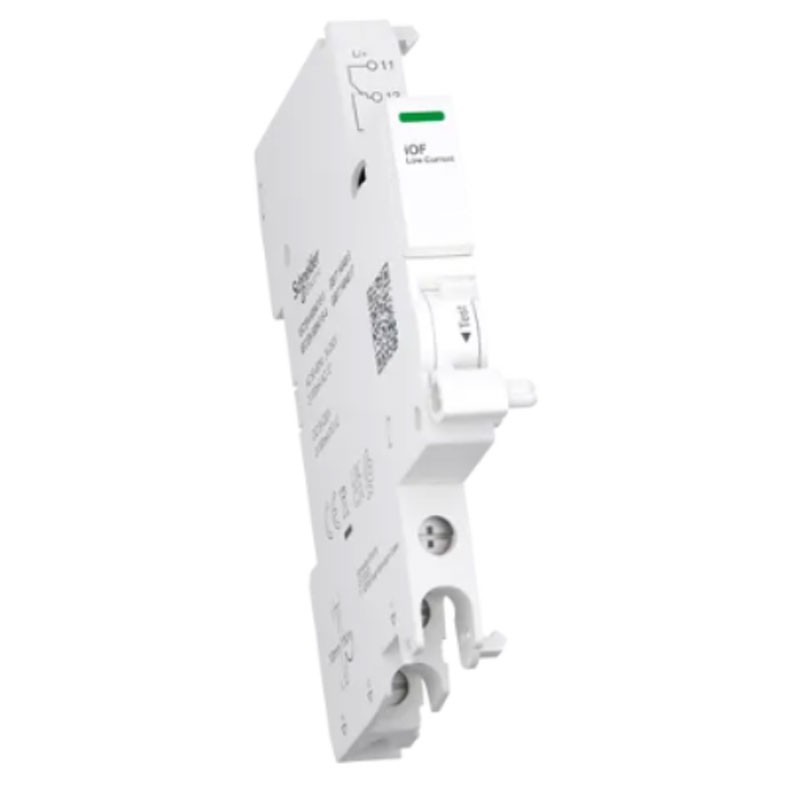

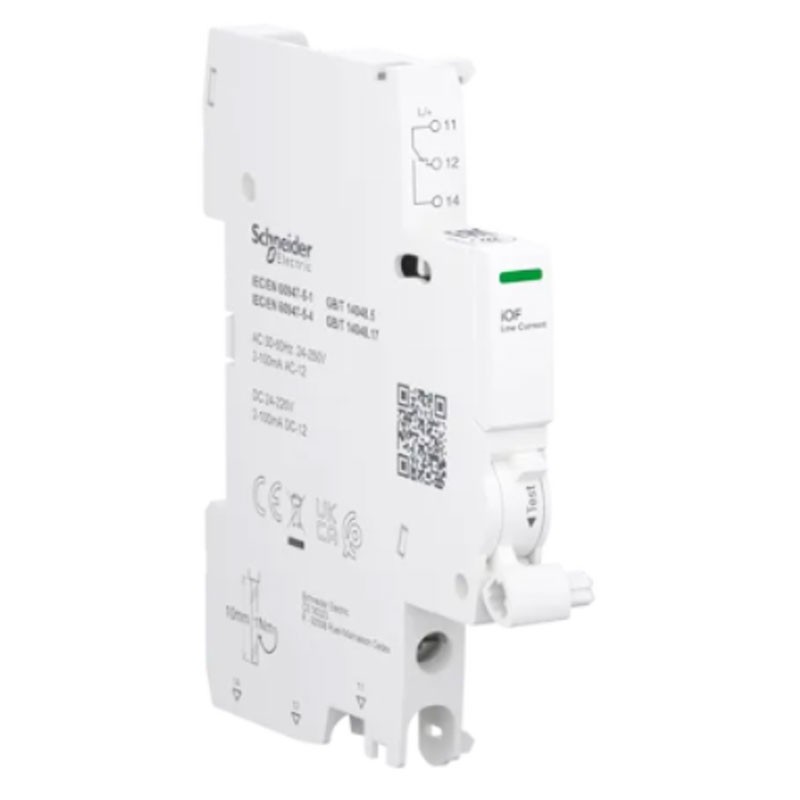

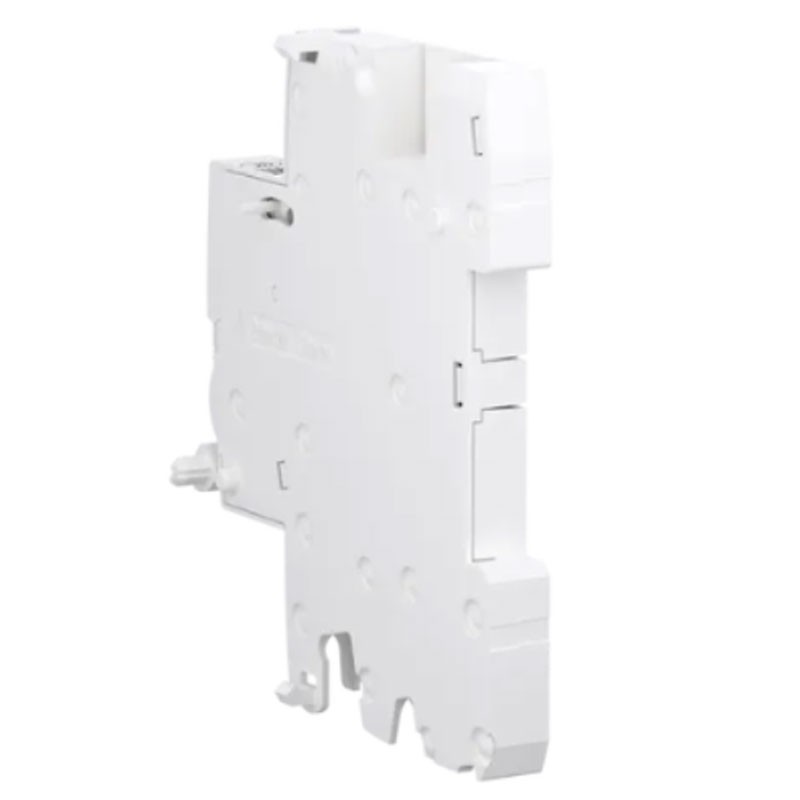

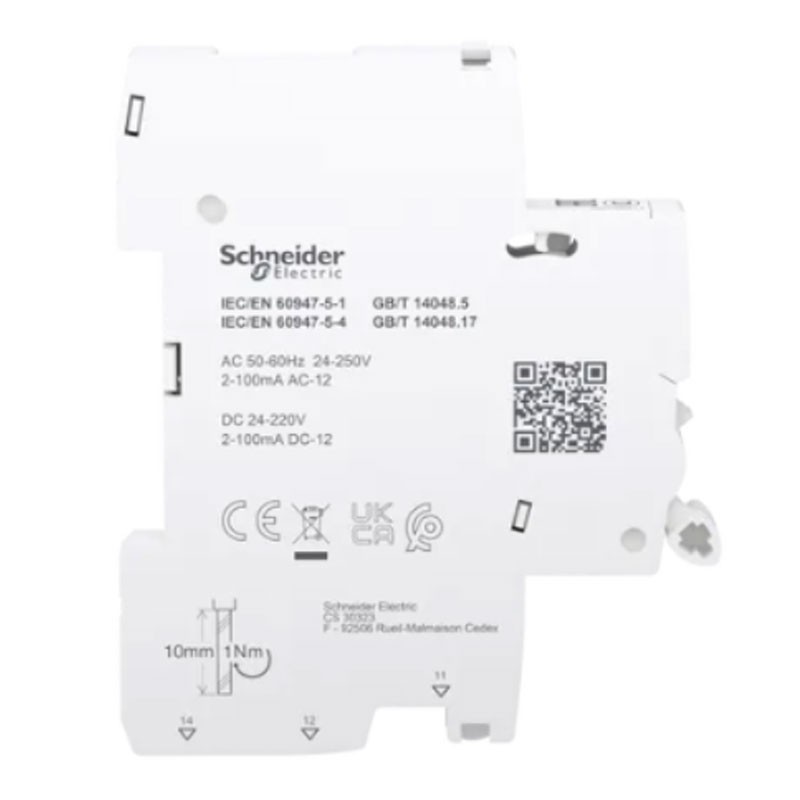

Schneider Acti9 iOF AC/DC Auxiliary Contact A9A26914
SNR A9A26914
3606482129139
Schneider Acti9 iOF auxiliary contact for iC40/C60/iID/iSW-NA/RCA, with the following characteristics:
- Product type: open/closed contact
- Device name: iOF
- Signal contact composition: 1 A/C
- 9 mm pitch: 1
- Rated insulation voltage [Ui]: 500 V
- Rated impulse withstand voltage [Uimp]: 4 kV
- Installation: DIN rail mounting
- Distribution combs compatibility: top: Yes
- Dimensions: Height 86 mm - Width 9 mm - Depth 73 mm
- Weight: 32 grams
- Color: white
€28.87
Items Available: 14
: 3
Frequently bought together
Auxiliary contacts are secondary switching devices that work in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the primary switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g., self-holding, consent/block, signaling, interlocking.
Other technical features:
- Wire stripping length: 10 mm
- Tightening torque: 1 Nm lower part
- Reference standards: IEC EN 60947-5-1, EN/IEC 60947-5-4, GB/T 14048.5, GB/T 14048.17
- Product certifications: CE, "UKCA"
- Quality marks: "EAC", CCC
- IP20 degree of protection
- Pollution degree: 3
- Tropicalization: 2
- Relative humidity: 95 % at 55 °C
- Ambient temperature: -25/+70 °C
- Storage temperature: -40/+85 °C
Connections-clamps:
- Screw clamp (lower part) 1 cables 1...4 mm² - rigid
- Screw clamp (lower part) 1 cables 0.5...2.5 mm² - flexible
- Screw clamp (lower part) 2 cables 2.5 mm² - rigid
- Screw clamp (lower part) 2 cables 1.5 mm² - flexible with ferrule
Rated current [In]:
- 2...100 mA at 24...240 V, AC 50/60 Hz
- 2...100 mA at 24 V, DC
- 2...100 mA at 48 V, DC
- 2...100 mA at 60 V, DC
- 2...100 mA at 130 V, DC
- 2...100 mA at 220 V, DC
There are no reviews
Data sheet
- Type: Auxiliary Contacts
