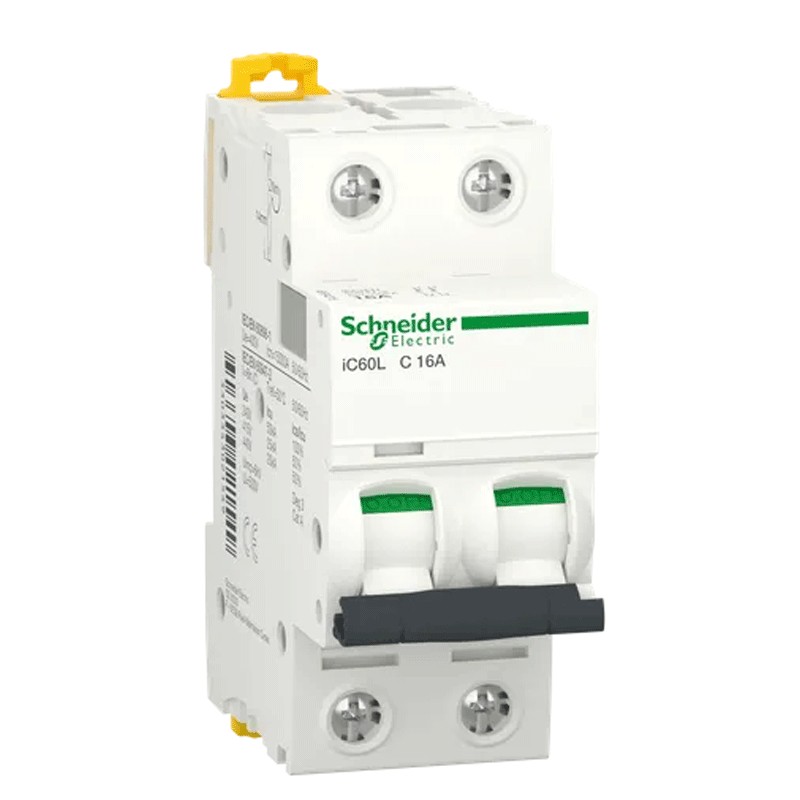

Schneider Circuit breaker 2P 16A 15KA C 2 modules A9F94216
SNR A9F94216
3606480084225
Circuit breaker 2P 16A 15KA C 2 modules A9F94216
€86.60
Items Available: 36
: 15
Frequently bought together
The main Application of the device the gamma Distribution Acti 9 product name Acti 9 iC60 Product or component type circuit Breaker Name short device IC60L Description of poles 2P Number of poles protected 2 [In] rated current 16 A network type AC DC drive Technology trip thermal magnetic Code of the C curve breaking Capacity 20 kA Icu conforming to EN / IEC 60947-2 - 440 V AC 50/60 Hz 25 kA Icu conforming to EN / IEC 60947-2 - 380 ... 415 V AC 50/60 Hz 50 kA Icu conforming to EN / IEC 60947-2 - 220 ... 240 V AC 50/60 Hz 70 kA Icu according to EN / IEC 60947-2 - 12 ... 60 V AC 50/60 Hz 70 kA Icu conforming to EN / IEC 60947-2 - 100 ... 133 V AC 50/60 Hz 20 kA Icu conforming to EN / IEC 60947-2 - <= 125 V DC 15000 A conforming to EN / IEC 60898-1 - 400 V AC 50/60 Hz Category of use Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 Yes conforming to EN 60898-1 Yes conforming to IEC 60898-1 standards EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 15KA
- Amps: 16A
- Circuit Protections: Circuit breakers
