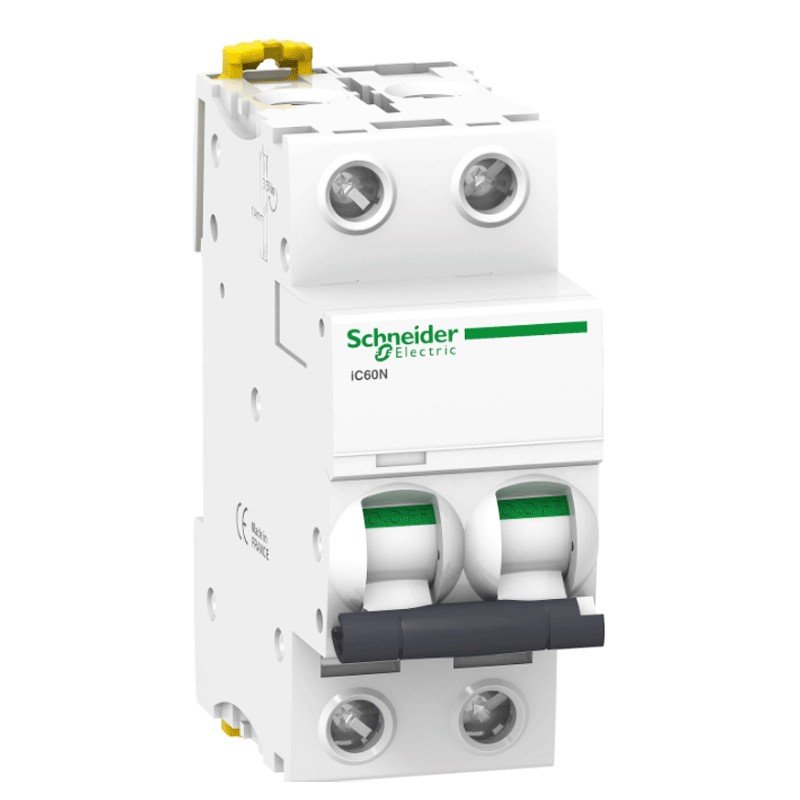

Circuit breaker-Schneider 2P 10A 6 KA C 2 modules A9F79210
SNR A9F79210
3606480093227
Schneider circuit breaker
- 2 modules,
- DIN connection (universal for any switchboard on the market),
- 2P,
- 10 amperes,
- breaking capacity 6kA,
- rated insulation voltage 500 Vac,
- tripping curve C.
€61.10
Items Available: 315
: 106
Frequently bought together
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Schneider series
- Circuit breaker
- Rated insulation voltage 500 Vac
- Current In 10A
- Breaking capacity Icn 6kA
- DIN rail mounting bracket
- Mains frequency 50/60 Hz
- Tripping curve C
- 2 modules
- 2P poles protected
- Height 85 mm
- Recessed depth 78.5 mm
- Width 36 mm
- Product weight 0.25 kg
- Clamp connection
- Tightening torque 2 Nm top or bottom
- Degree of protection IP20
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 6KA
- Amps: 10A
- Circuit Protections: Circuit breakers
