Chint XF9 Signal contact: clear indication of device status

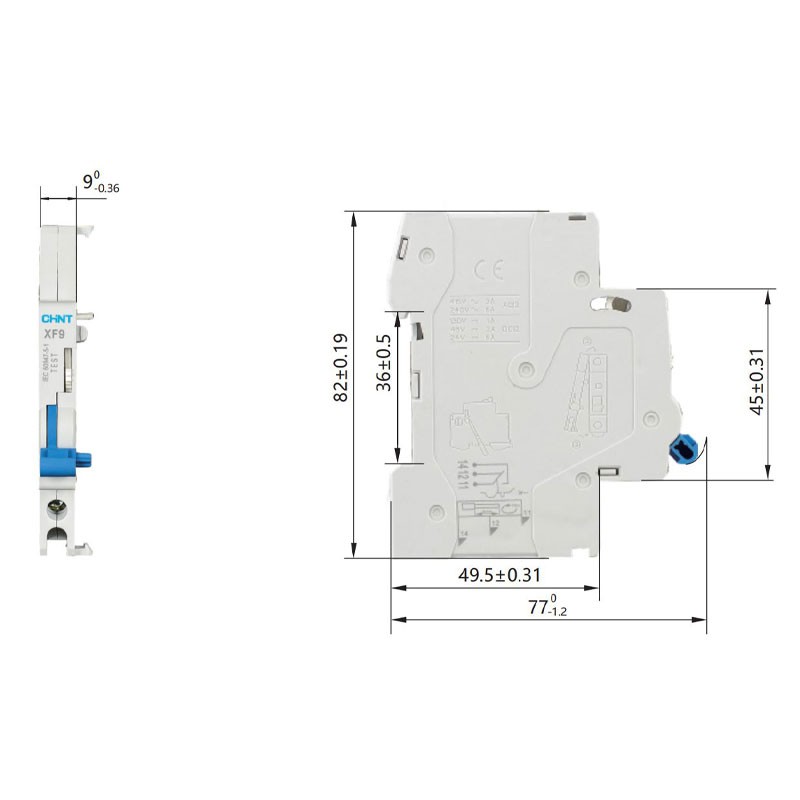

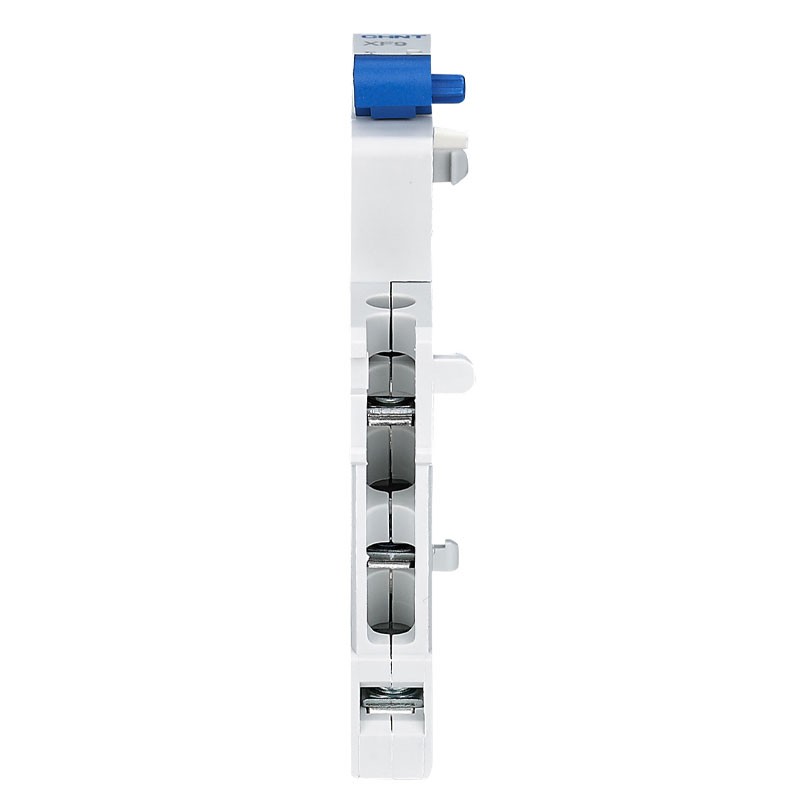

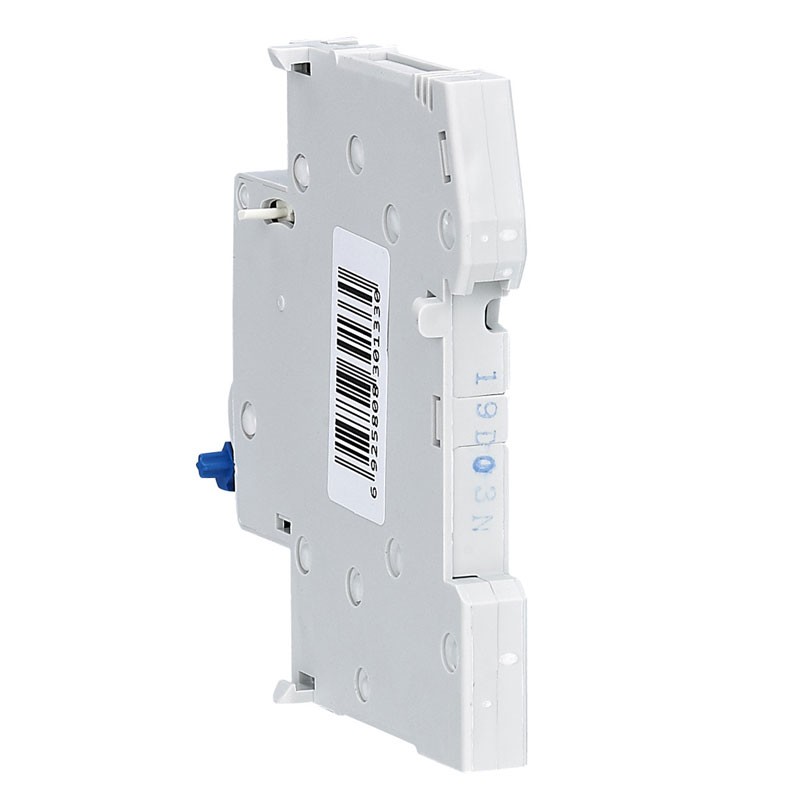

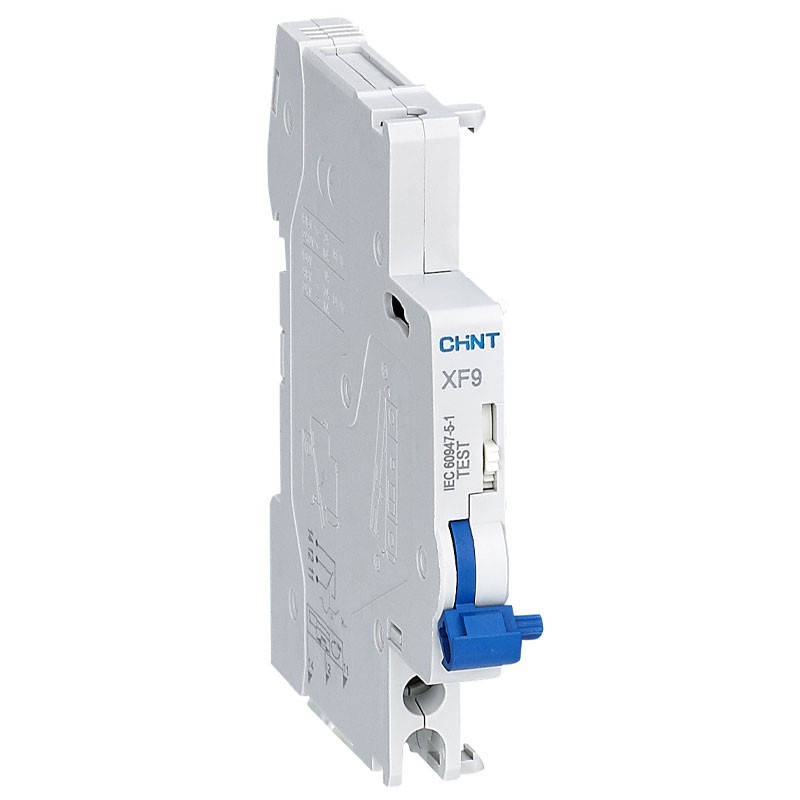

The Chint XF9 signalling contact (code 184994) is a useful device for monitoring the status of circuit breakers and residual current devices (MCB/RCBO). The 1NA+1NC configuration allows signalling both the open and closed position of the contacts, providing a precise visual indication of the device's switching status.
Easy installation and compatibility
This signalling contact is easily mounted on the left side of the switches, thanks to a dedicated pin that facilitates installation. It is compatible with series NB1, NBH8, NB1L, NB310L, and allows up to two contacts to be placed side by side for a signalling system on multiple devices.
Performance and reliability
The XF9 contact is designed to withstand voltages up to 500 V and to operate in environments with temperatures ranging from -5°C to +40°C. The insulation voltage is 500V, while the impulse withstand voltage reaches 4 kV (1.2/50 µs), ensuring safe and reliable performance over time. The device complies with international standards, with IP20 protection ratings making it resistant to dust and small water ingress.
Durability and maintenance
With a mechanical life of 10,000 cycles and an electrical life of 6,050 cycles, the Chint XF9 contact is designed to last long, even in high-frequency use applications. Installation and maintenance are simplified thanks to the 2.5 mm² cable connection, with a tightening torque of 0.8 N·m to ensure a secure connection.
| General data |
| Rated value |
AC415 50/60Hz 3 Amperes - AC240 50/60Hz 6 Amperes |
| Configuration |
1NA+1NC |
| Rated impulse withstand voltage (1.2/50) Uimp |
4000 In |
| Dielectric test voltage at ind. frequency for 1 min |
2 kV |
| Insulation voltage Ui |
500 In |
| Pollution degree |
2 |
| Electrical life |
6,050 |
| Mechanical life |
10,000 |
| Protection degree |
IP20 |
| Ambient temperature |
-5/+40°C |
| Storage temperature |
-25/+70°C |
| Terminal connection type |
Cable 2.5mm² |
| Upper/lower terminal size for AWG 18-14 cable |
0.8 N·m |
| Tightening torque |
7 In-Ibs |
