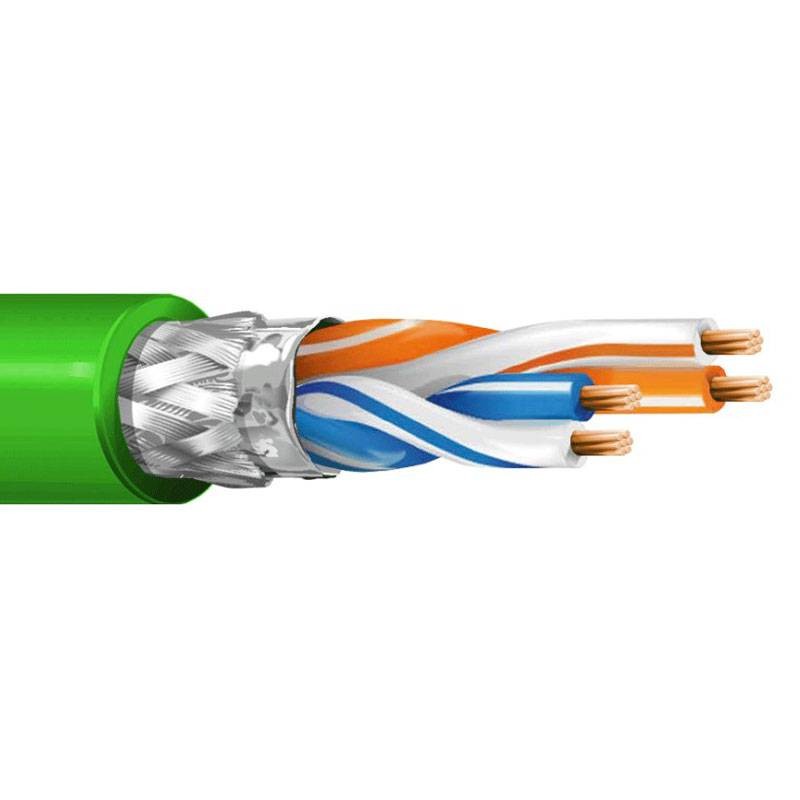

2x2 mmq AWG24 shielded cable for RS485/MODBUS LSZH green 100 meters

Cavi
ITC 24S7KVZ1000 8029427524021

Shielded serial cable, ideal for reliable data transmission in industrial environments. Co-habitable with energy cables, with the following features:

  • Serial bus cable: 2x2xAWG24 for RS485/MODBUS

  • Shielding: S(FTP) with AL/PET foil and tinned copper braid

  • Outer sheath: green LSZH, flame retardant and low smoke emission

  • Diameter: 8 mm

  • Impedance: 120±15, mutual capacitance 43pF/m

  • Operating temperature: -20/+80degrees

  • Suitable for: laying with energy cables: 450/750?V and 0.6/1kV

The selling price is per meter, sellable only by hank of 100 meters.

Do you have questions about this product or did you not find what you were looking for? Ask us!
2x2 mmq AWG24 shielded cable for RS485/MODBUS LSZH green 100 meters
€3.12
€3.12

The minimum purchase order quantity for the product is 100.

€3.12
Tax included
Calculate shipping cost
Items Available: 958
Further availability of the manufacturer
€3.12

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

RS-485/MODBUS serial bus cable: reliability and high performance

The 2x2 AWG 24 FLEX S(FTP) LSZH RS485 MODBUS cable is specifically designed for applications in industrial environments where support for major serial communication protocols such as RS-485, MODBUS and CANBUS is required. The double twisted pair with tinned copper conductors ensures stable and interference-resistant transmission.

Shielded structure and superior protection

Double shielding of type S(FTP), consisting of aluminum/polyester foil and tinned copper braid with more than 85% coverage, ensures excellent immunity to electromagnetic interference. This also makes the cable suitable for installations near power cables, with no risk of interference.

LSZH sheathing safety and environmental friendliness

The outer sheath made of LSZH (Low Smoke Zero Halogen) thermoplastic material offers reliable mechanical protection and complies with indoor safety regulations. In the event of a fire, it emits low-toxic, halogen-free fumes, contributing to the safety of personnel and equipment.

Electrical performance for advanced industrial applications

With a characteristic impedance of 120 ±15 Ohms, a mutual capacitance of 43 pF/m and a propagation rate of 68%, the cable ensures high performance in serial networks. It is ideal for precise and stable data connections in automated systems, control systems and complex industrial environments.

Technical Specifications LSZH Double Shielded Cable

Conductors 7x0.22 mm tinned copper (AWG 24)
Conductor resistance 79 Ohm/Km
Insulation PE (Polyethylene)
Conductor color White-Blue / Blue, White-Orange / Orange
Shielding 1 100% AL/PET foil
Shielding 2 Tinned copper braid > 85%
Outer sheath LSZH thermoplastic, green color
Outer diameter 8.0 mm
Characteristic impedance 120 ±15 Ohms
Mutual capacitance 43 pF/m
Propagation velocity 68%
Shielding efficiency > 85 dB (30-1000 MHz)
Operating temperature -20°C / +80°C
Sheath insulation Category C-4 (U = 400 V)
Test voltage 2.5 KVac
Minimum bending radius 12 × outer diameter

There are no reviews

Data sheet

Colour:
Green
Type:
Networking cables
Cross-Section:
2mmq
With yellow/green:
No
Number of cables:
2
