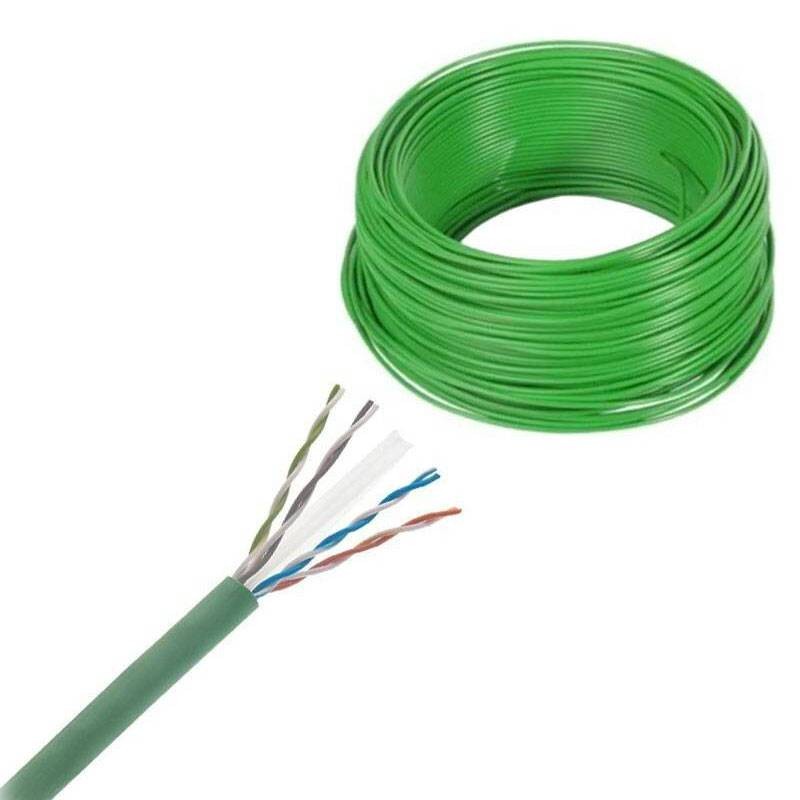

Acome Networking cable CAT6A F/FTP LSZH Sheath CPR CCA 500m R8595A-T500
03M R8595A-T500
Acome CAT6A F/FTP networking cable LSZH Sheath CPR CCA, high performance, fire protection and regulatory compliance, with the following features:
-
Category: Cat.6A
-
Type: F/FTP, 4 twisted pairs
-
Operating frequency: Up to 550 MHz
-
Outer diameter: 7.3 mm
-
Maximum tension: 98 N
-
Conductor: Solid copper, AWG 24
-
PoE compatibility: IEEE 802.3 af / at / UPoE
The sale price is per metre, only sellable in a 500-metre coil.
€1.06
Items Available: 13000
: 4000
High-performance Acome networking cable for next-generation networks
The Acome R8595A-T500 CAT6A F/FTP networking cable is designed for high-speed network applications, compatible with Class EA standards, ensuring optimal performance up to 550 MHz. Thanks to the F/FTP construction (Overall shielding + individual pair shielding), it offers excellent protection against electromagnetic interference (EMI) and crosstalk disturbances.
Fire safety certified Euroclass Cca
The green LSZH-FR (Low Smoke Zero Halogen - Flame Retardant) outer sheath ensures low emission of smoke and toxic gases in case of fire. The cable is CPR Euroclass Cca certified, compliant with safety regulations for public and industrial buildings.
Compatible with PoE and PoE+
The cable supports power over Ethernet according to PoE and PoE+ standards, making it suitable for integrated solutions for IP video surveillance, Wi-Fi access points, home automation, smart sensors, and VoIP phones, even over long distances.
Ideal applications
-
High-performance LAN networks
-
10GBase-T Ethernet networks
-
PoE/PoE+ systems
-
IP video surveillance
-
Industrial automation
-
IT installations in public or corporate environments
Technical Characteristics Acome networking cable
| Category | CAT6A |
| Structure | F/FTP (individual shielding + overall shielding) |
| Operating frequency | Up to 550 MHz |
| Application | Data networks – class EA |
| Shielding | Aluminium / Foil for each pair + shielding sheath |
| Sheath colour | Green |
| Sheath material | LSZH-FR |
| CPR certification | Euroclass Cca |
| PoE / PoE+ compatibility | Yes |
| Outer diameter | 7.3 mm |
| Coil length | 500 m |
| Maximum installation tension | 98 N |
| Minimum bending radius | Dynamic: ≥ 60 mm – Static: ≥ 30 mm |
| Operating temperature | –20°C ÷ +60°C |
| Installation temperature | 0°C ÷ +50°C |
| Conductor loop resistance | ≤ 146.4 Ω/km |
| Resistance unbalance | ≤ 2% |
| Insulation resistance | ≥ 5000 MΩ·km (500 V) |
| Dielectric strength | 1 kV / 1 min – no breakdown |
| Characteristic impedance @100MHz | 100 ± 5 Ω |
| Propagation speed | 78% |
| Coupling attenuation | ≥ 70 dB – Type 1b |
| Transfer impedance | @1 MHz: ≤ 30 mΩ/m – @10 MHz: ≤ 30 mΩ/m – @30 MHz: ≤ 50 mΩ/m – @100 MHz: ≤ 100 mΩ/m |
