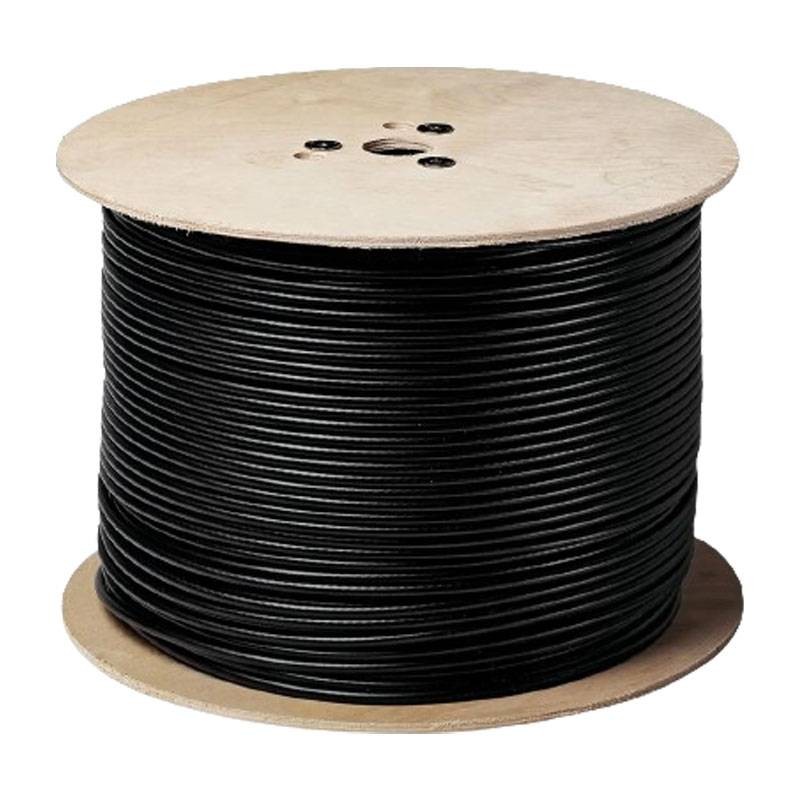

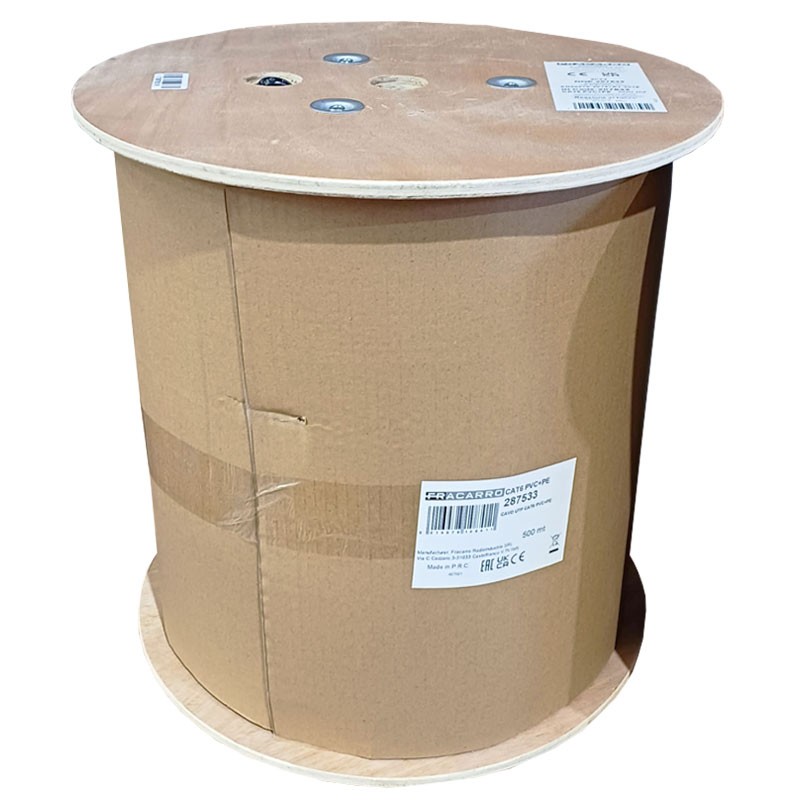

CAT 6 U/UTP Fracarro copper network cable 500 meters black 287533
FRA 287533
8016978102792
Fracarro CAT 6 U/UTP network cable with the following characteristics:
- Cable type: CAT 6 U/UTP
- Working frequency: 250 MHz
- Tensile strength: >10 Mpa
- Elongation: >125 %
- Material: Copper
- AWG Class: 24
- Outer diameter: 6.6 mm
- Color: Black
Suitable for Gigabit Ethernet (IEEE 802.3ab) applications.
Sale price is per meter, sellable by 500 meter reel only.
€0.59
Items Available: 10300
: 3500
Black PE sheathed outdoor CAT 6 network cable, 500 meter skein consisting of 4 balanced 100 Ohm pairs with AWG 24 flexible red copper conductors. Features meet the requirements of Cat. 6 Class E up to 250 Mhz according to ANSI/TIA 568.2-D and ISO/IEC 11801 standards.
Suitable for Gigabit Ethernet (IEEE 802.3ab) applications.
Features:
- Cable type: CAT 6 U/UTP
- Working frequency: 250 MHz
- Test standard: ISO/IEC 11801, TIA EIA568C.2
- Tensile Strength: >10 Mpa
- Elongation: >125 %
- Cold fold: No visible cracks (-20 ±2°C x 4h)
Inner conductor:
- Material: Copper
- Diameter: 0.53+/-0.005 mm
- AWG Class: 24
Inner sheath:
- Inner sheath material: HDPE
- Inner sheath diameter: 0.95mm
- Screen tape: HDPE; 0.21mm; 0% foam
Outer sheath:
- Material: PVC+PE
- Diameter: 6.6mm
- Color: Black
There are no reviews
Data sheet
- Type: Networking cables
