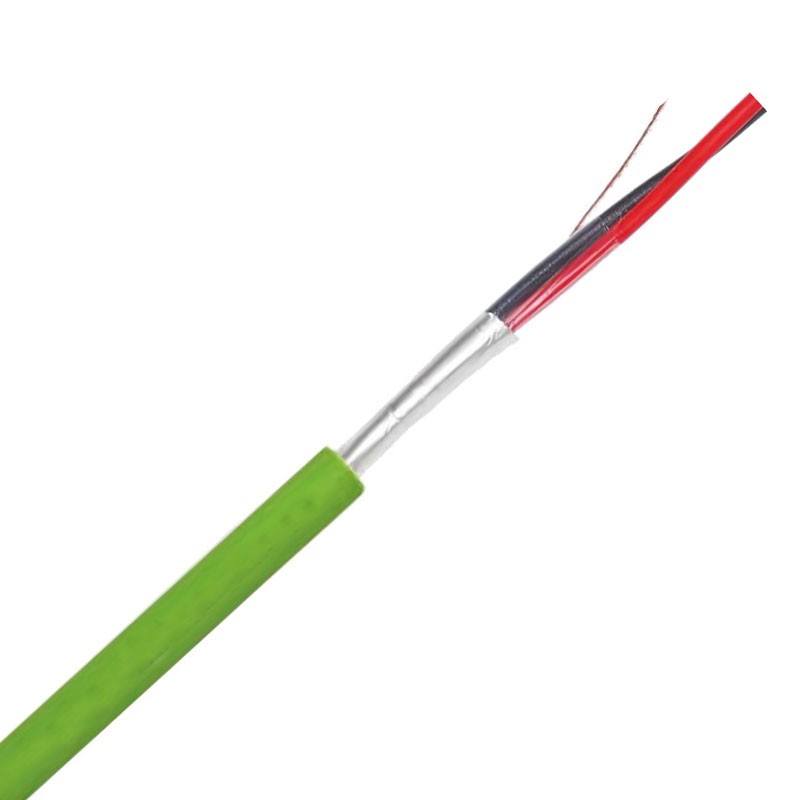

Data cable 1X2XAWG24 RS485 450/750V LSZH sheath
57R RS9841HF
Twisted and shielded RS485 signaling and control cable, ideal for reliable data transmissions in indoor and outdoor environments:
-
Twisted and shielded cable for RS485 communications
-
Formation 1 × 2 × AWG24
-
Nominal voltage 450/750 V
-
Outer diameter 5.6 mm
-
Green outer sheath color
-
CPR class: Eca
-
Applications: Automation, control, RS485 data transmission
-
Suitable for indoor and outdoor installation
-
High immunity to electromagnetic interference
The sale price is per metre.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€0.76
Items Available: 247
Two-year warranty
Data cable 1X1XAWG24 RS485, suitable for RS485 signaling and control
The twisted and shielded RS485 signaling and control cable is designed to ensure stable, reliable, and secure data transmission in industrial communication and automation systems. The twisted configuration of the conductors, combined with the shielding, effectively reduces electromagnetic interference, ensuring a clean signal even in electrically noisy environments.
It is the ideal solution for applications such as RS485 communication buses, control systems, industrial automation, supervision systems, home automation, and command signal transmission.
Safety, resistance, and installation versatility
The LSZH (Low Smoke Zero Halogen) sheath ensures high safety in case of fire, limiting the emission of opaque smoke and corrosive gases. This makes the cable particularly suitable for enclosed environments, public buildings, technical rooms, and infrastructures where people's safety is a priority.
The CPR Eca class allows its use in numerous civil and industrial installations, while the possibility of both indoor and outdoor installation ensures great design flexibility.
Electrical reliability and compact dimensions
With a nominal voltage of 450/750V, the cable offers high electrical reliability. The outer diameter of only 5.6 mm facilitates installation even in ducts and confined spaces, while maintaining mechanical robustness and signal protection.
The green color allows for immediate identification of the cable within signaling and control systems.
There are no reviews
Data sheet
- Type: Networking cables
