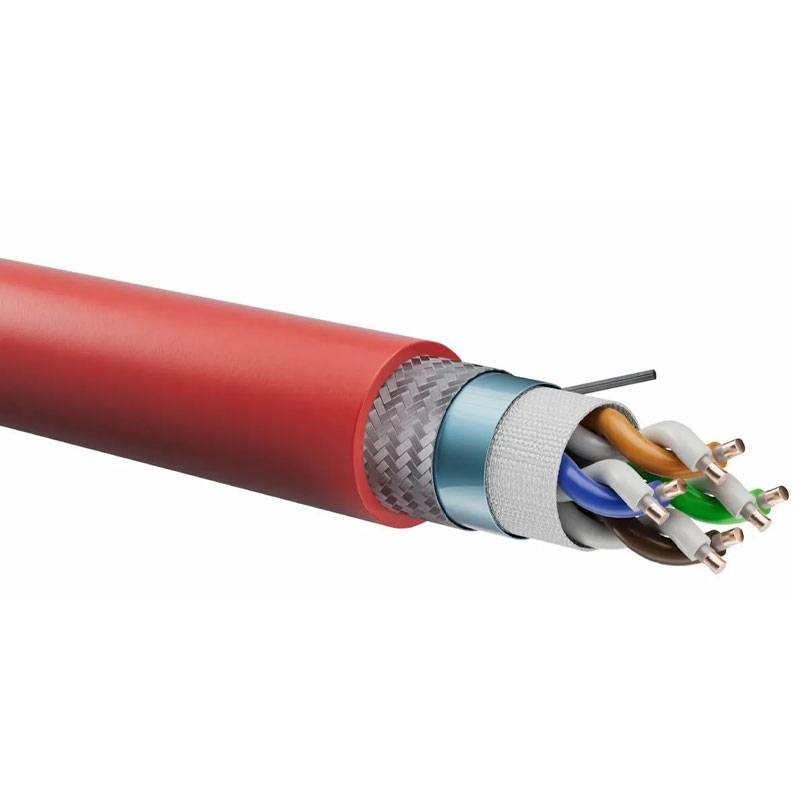

Cable S/FTP CAT5E Berica 4x2x22 AWG PH120 B2CA B75B04CA22FR
BEC B75B04CA22FR
The Berica S/FTP CAT5E PH120 B2CA B75B04CA22FR cable is designed for reliable data transmission even in fire: double shielding, halogen-free, and fire resistance for safety installations and high-density environments.
-
CAT5E S/FTP 4x2x22 AWG: double shielding for maximum immunity to interference
-
PH120: service continuity in case of fire (critical applications)
-
CPR B2ca: fire-resistant and non-flame propagating cable, LSZH (halogen-free)
-
Fixed installation indoors and outdoors protected from UV rays (not buriable)
-
Installable on trays, ducts, pipes, and metal structures
-
Installation in coexistence with electrical circuits up to Uo 400 V (typically 230/400 V).
-
The sale price is per metre
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€4.15
Items Available: 3053
: 2748
Two-year warranty
Cable Berica S/FTP CAT5E PH120 B2CA: when the network must remain active
The Berica B75B04CA22FR S/FTP CAT5E PH120 is a data cable designed for scenarios where signal transmission cannot be interrupted during an emergency. In a standard installation, a fire can quickly degrade the insulation and performance of the cable, causing communication blackouts at the most critical moment. This model, however, is developed to ensure operationality and connection integrity in the presence of high temperatures and extreme conditions, making it ideal for life safety networks.
It is the right choice for contexts where signal continuity supports vital functions: video surveillance, connections between voice evacuation centers, fire detection backbones, and interconnections between security devices.
Double shielding S/FTP: stable signal even in complex environments
The S/FTP structure combines Al/Pet tape and tinned copper braid, offering superior protection against electromagnetic interference and crosstalk. In technical buildings, public infrastructures, and tunnels, cable routes often coexist with power supplies, panels, and equipment that generate disturbances: the double shielding helps maintain signal quality and reduces transmission errors, improving network stability and reliability.
The 22 AWG conductor ensures a generous section, useful in professional installations where mechanical robustness and consistent performance over structured routes are sought.
PH120 and CPR B2ca: designed to withstand fire and limit risks
This cable is fire-resistant and non-fire propagating, as well as halogen-free (LSZH): in case of fire, it helps limit corrosive emissions and dangerous fumes, an essential aspect in places with high population density and complex evacuation. The B2ca classification places it among the cables with superior fire reaction performance, recommended for high-risk environments.
It is suitable for installations in airports, railway and maritime stations, subways, road and railway tunnels, as well as public buildings and large structures where fire safety is a priority.
Installation: indoor and outdoor UV protected, without underground laying
The cable is suitable for fixed installation indoors and outdoors only if protected from UV rays. It can be installed on trays, pipes, ducts, and metal structures; underground laying is not allowed. An additional advantage is the possibility of laying in the same conduit with electrical circuits with a nominal voltage to ground up to 400 V, typically 230/400 V, when the installation design allows it.
| CONSTRUCTION CHARACTERISTICS | |
|---|---|
| Conductors | Annealed red copper (22 AWG) |
| Insulation 1 | Thermoplastic compound PP LSZH |
| Insulation 2 | Silicone rubber LSZH |
| Core colours | White/Blue – White/Orange White/Green – White/Brown |
| Flame barrier | Glass tape |
| Drainage | Annealed tinned copper 7 × 0.30 mm |
| Shielding | Al/PET tape Annealed tinned copper braid |
| Outer sheath | Special thermoplastic compound LSZH |
| Sheath colour | Red RAL 3000 |
| FIRE RESISTANCE | |
| Fire resistance PH120 | 120 minutes at 830 °C (−0 ÷ +40 °C) Compliant with CEI EN 50200 |
| Fire resistance FE180 | 180 minutes at 750 °C Compliant with IEC 60331-21 – VDE 472-814 |
| ELECTRICAL CHARACTERISTICS | |
| Electrical resistance | < 120 Ω/km (loop) |
| Impedance | 100 ±5 Ω at 100 MHz |
| Conductor-to-conductor capacitance | Approximately 60 nF/km (1 kHz) |
| Conductor-to-shield capacitance | Approximately 85 nF/km (1 kHz) |
| Inductance | Approximately 0.75 mH/km (1 kHz) |
| Test voltage | 700 Vac × 1 min |
| OPERATING CONDITIONS | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | −20 °C (fixed laying, without mechanical stresses) |
| Minimum laying temperature | 0 °C |
| Bending radius | Ø × 8 |
| REGULATION EU 305/2011 (CPR) | |
| AVCP System | 1+ (EN 50575:2014 + A1:2016) |
| CPR Classification | B2ca-s1a,d1,a1 (UNI EN 13501-6) |
| Heat emission and flame spread | B2ca – FS ≤ 1.5 m Compliant with EN 50399 |
| Smoke production | s1a – Transmittance ≥ 80% TSP ≤ 50 m² – SPR ≤ 0.25 m²/s EN 50399 + EN 61034-2 |
| Incandescent droplets | d1 – No persistent droplets > 10 s EN 50399 |
| Gas acidity | a1 – Conductivity ≤ 4.3 EN 50267-2-3 |
| Non-flame propagation | H ≤ 425 mm EN 60332-1-2 |
| MARKING | |
| Cable marking | BERICA CAVI S.P.A. ITALY S/FTP 4×2×22 AWG Cat.5E FR PH120 Uo = 400 V – 100 OHM B2ca-s1a,d1,a1 CE Year / Batch – 00000 m |
