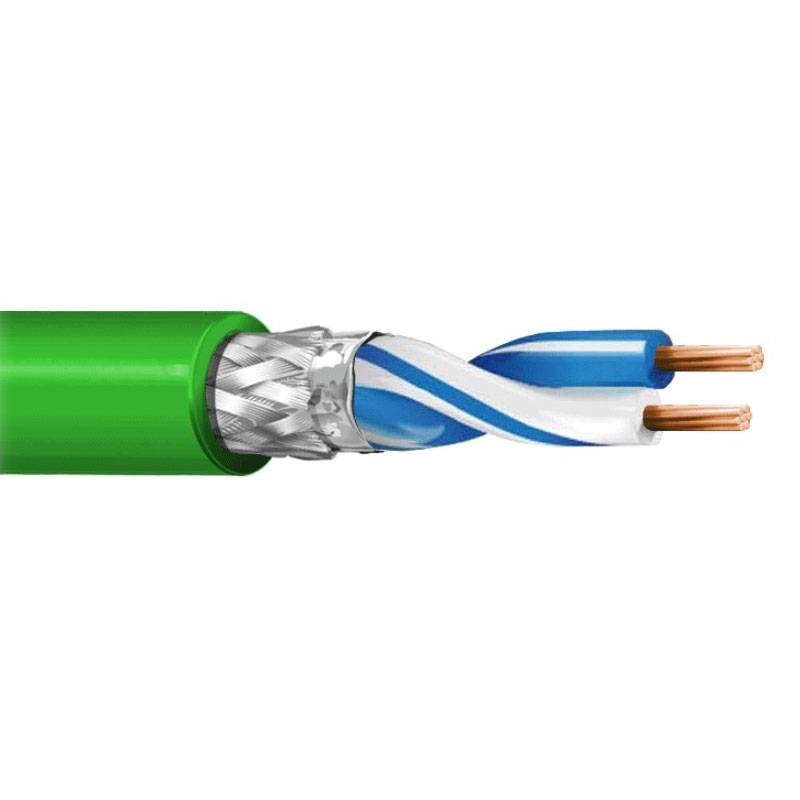

1x2 mmq AWG24 shielded cable for RS485/MODBUS LSZH green 100 meters
ITC 14S7KVZ1000
8029427524045
Shielded serial cable, ideal for reliable data transmission in industrial environments. Co-inhabitable with energy cables, with the following features:
-
Serial bus cable: 1x2xAWG24 for RS485/MODBUS
-
Double shielding: 100% AL/Pet foil + CuSn >85% braid
-
Outer sheath: green LSZH
-
Diameter: 5.7mm
-
Impedance: 120±15, mutual capacitance 43pF/m
-
Operating temperature: -20/+80 degrees
-
Suitable for laying with energy cables: 450/750V and 0.6/1kV
Selling price is per meter, only sellable by 100 meter skein.
€2.48
Items Available: 8426
: 3500
Shielded cable designed for serial bus applications
The 1x2xAWG24 FLEX S(FTP) LSZH cable is ideal for connections on industrial RS485 and MODBUS networks, where noise immunity and stable transmission are essential. Double shielding ensures maximum protection against electromagnetic interference.
Reliable construction and quality materials
-
Conductor: flexible 7-wire 0.22mm copper (AWG24)
-
Insulation: PE with white/blue and blue coded pair
-
Shielding: 100% AL/Pet foil + tinned copper braid (>85%)
-
Sheath: green LSZH, low smoke and halogen-free, 5.7mm diameter
Electrical Performance.
Characteristic impedance of 120 ±15%, mutual capacitance of 43pF/m and propagation rate of 68% ensure optimum performance over long distances. Conductor resistance: 79/Km. Test voltage: 2.5kVac.
Safety and flexibility in installation
With insulation class C-4 (U = 400V) and a minimum bending radius of 10×Ø, the cable is robust, flexible and suitable for laying in environments with other power lines. Operating temperature range of -20°C to +80°C.
Recommended applications.
-
RS-485 and MODBUS industrial networks
-
Industrial and building automation
-
Bus connections for control and monitoring systems
-
Environments where cohabitation with energy cables is required
Technical Specifications 1x2 shielded cable
| Cable Type | 1x2xAWG24 FLEX S(FTP) LSZH |
|---|---|
| Conductor | Copper 7x0.22mm (AWG24) |
| Conductor Resistance | 79Ω/Km |
| Insulation | PE (white/blue - blue) |
| Shielding | AL/Pet 100% foil + CuSn overbraid >85% |
| Outer sheathing | Green LSZH |
| Outer diameter | 5.7mm |
| Characteristic impedance | 120Ω ±15% |
| Mutual capacitance | 43pF/m |
| Propagation rate | 68% |
| Test voltage | 2.5kVac |
| Insulation class | C-4 (U = 400V) |
| Operating temperature | -20 ÷ +80°C |
| Bending radius | ≥10×Ø |
| Compatibility | Cohabitation with 450/750V and 0.6/1kV cables |
There are no reviews
Data sheet
- Colour: Green
- Type: Networking cables
- Cross-Section: 2mmq
- With yellow/green: No
- Number of cables: 1
