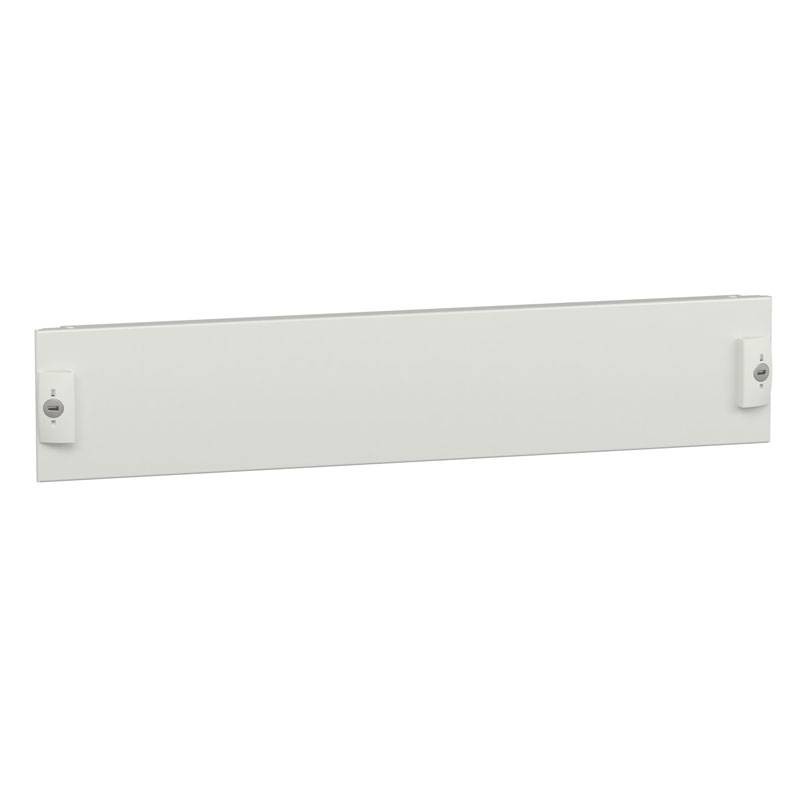

Schneider PrismaSet W600/W650 2M LVS03802 Solid Front Plate
SNR LVS03802
3606481873330
Schneider PrismaSet solid face plate with the following features:
- Product range: PrismaSet G - PrismaSet P
- Product type or component: Front plate
- Range compatibility: PrismaSeT G cabinet - PrismaSeT P cabinet - PrismaSeT Pack 160 cabinet - PrismaSeT Pack 250 cabinet
- Type of front plate: Plain
- Number of vertical modules (50 mm): 2
- Product Certifications: ASTA
- Material: steel
- Surface finish: Matt textured
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
€18.34
Items Available: 40
Further Schneider RCBO combinations:
Further Schneider circuit breaker combinations:
Description of the enclosure/cabinet:
- Floor cabinet width 600 mm
- Wall cabinet width 600 mm
- Cabinet width 650 mm depth 400 mm
- Pack cabinet - width 555 mm
- Pack cabinet - width 600 mm
Functional unit:
- PrismaSeT G 600 mm floor-standing cabinet
- PrismaSeT G cabinet from 600 mm from the wall
- PrismaSet P cabinet from 650 mm by 400 mm

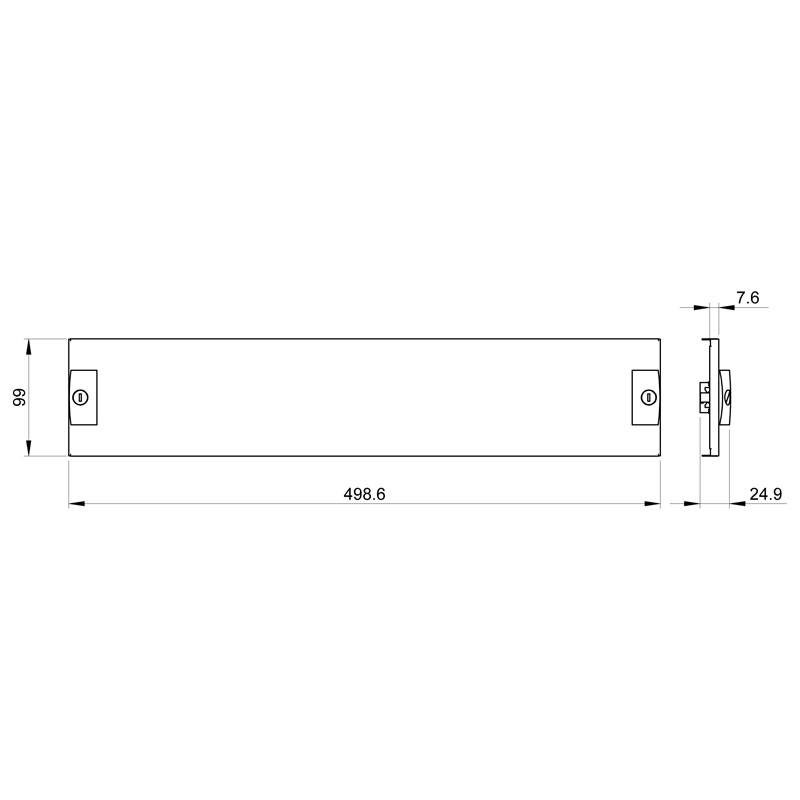

Dimensions and weight:
- Height: 100 mm
- Width: 500 mm
- Weight: 480 grams
There are no reviews
Data sheet
- Type: Plates
- Modules: 2
