Schneider residual current circuit breaker kit 10A 1P+N 30MA AC 4,5KA 2 modules R9D60610
KIT R9D60610

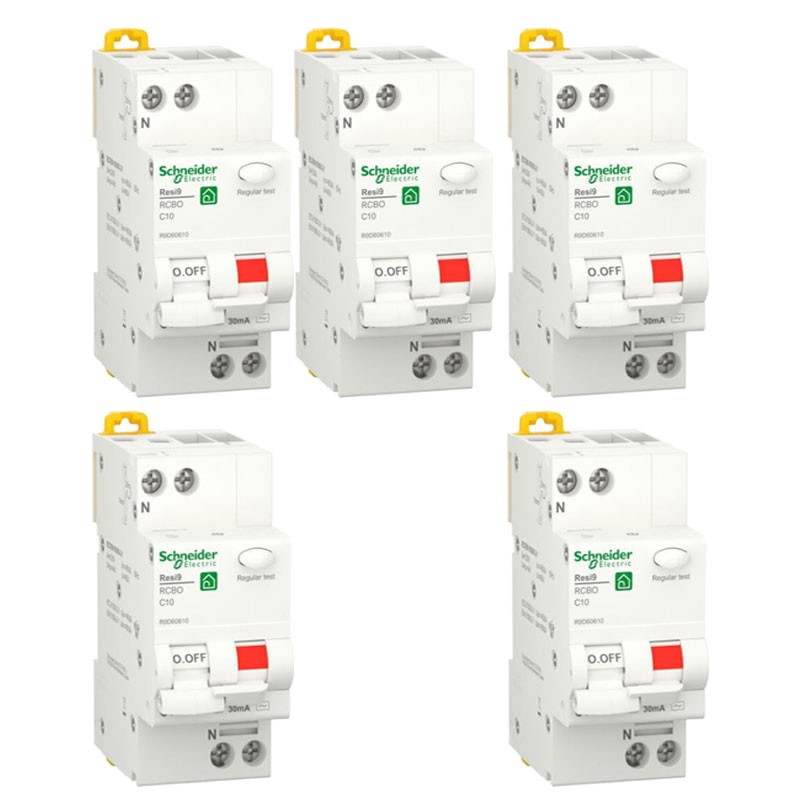

5-piece kit of Schneider Resi9 magnetothermal residual current circuit breakers, with overcurrent protection (RCBO), with the following characteristics:
- 2 modules
- Left neutral position
- DIN connection (universal for any switchboard on the market)
- Poles 1P+N
- 10 amperes
- Breaking capacity 4.5kA
- Rated voltage 230 Vac
- AC type
- Intervention curve C
- Colour white
With the kit you save compared to individually purchased items
€138.56
Items Available: 63
: 63
Further Schneider RCBO combinations:
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
The AC differential switch tripping is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Schneider Resi9Series
- Thermal magnetic differential circuit breaker with overcurrent protection (RCBO)
- Rated voltage 230 Vac
- Current In 10A
- Interrupting capacity Icn 4,5kA
- Mains frequency 50 Hz
- DIN rail mounting bracket
- Intervention curve C
- Differential protection type AC
- Left neutral position
- Differential sensitivity 30 mA
- Local signalling ON/OFF indication
- 2 modules
- 1P+N
- Height 82 mm
- Depth 70.5 mm
- Width 36 mm
- Product weight 186 gr
- Tightening torque 2 Nm
- Colour White
Data sheet
- KIT: Kit RCBO
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 10A
- Circuit Protections: RCBO
