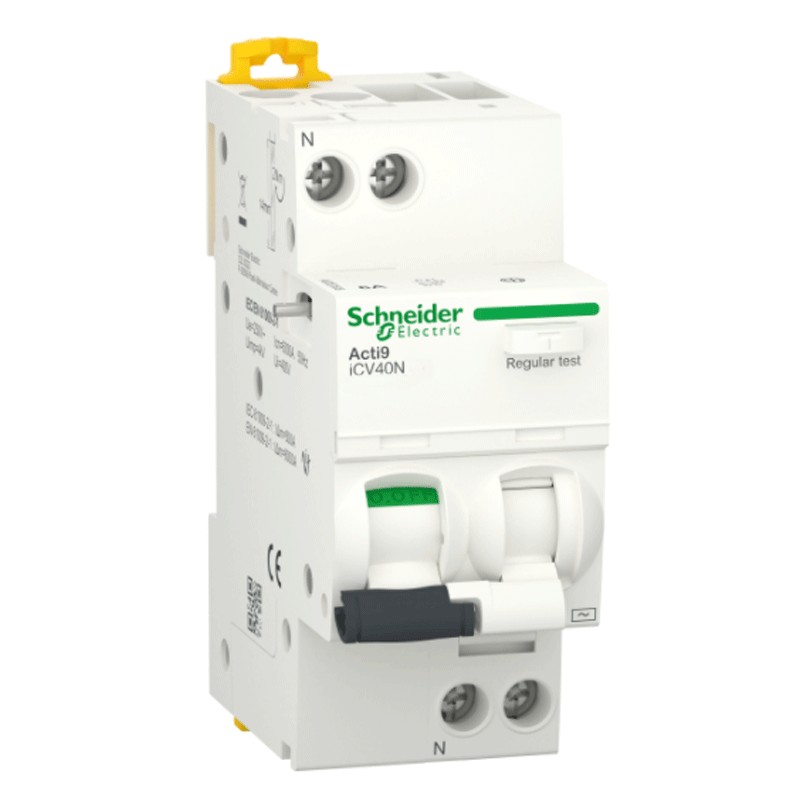

Schneider Residual current operated circuit breaker 10A 1P+N 6kA 30mA AC Curve C 2M A9DE3610

Schneider
Schneider
SNR A9DE3610 3606489444228

Siemens Residual current operated circuit breaker, combined protection against short circuits, overloads and current leakage. Ideal for domestic and industrial installations, with the following characteristics:

  • Rated current: 10 amps

  • Number of poles: 1P+N

  • Operating voltage: 230V AC

  • Interrupting capacity: 6kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: AC

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider Residual current operated circuit breaker 10A 1P+N 6kA 30mA AC Curve C 2M A9DE3610
€143.26
€143.26

€143.26
Tax included
Calculate shipping cost
Items Available: 59
Further availability of the manufacturer
€143.26

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Comprehensive protection for your electrical system

The Schneider RCBO, integrates three basic protections:

  • Magnetic protection against short circuits, preventing fire and damage to the system
  • Thermal protection against overloads, preventing interruptions due to excessive loads
  • Differential protection (30mA) against current leakage, ensuring the safety of people

This combination makes it an essential device for electrical safety in homes, offices and small businesses.

Schneider RCBO: C curve and AC type protection

C curve: ideal protection for mixed loads

Thanks to the C-curve tripping curve, the device is suitable for circuits with mixed loads, such as outlets and lighting, reducing the risks of unwanted interruptions.

Operation of the AC-type RCBO

This device is of the AC type, so it is sensitive to sine-sine alternating differential currents, ensuring rapid tripping in both sudden losses and gradual increases, ensuring high safety standards.

Schneider RCBO: robustness, reliability and compliance

Robust and compact design

Designed for quick and easy DIN-rail installation, the device is 2 modules wide, taking up little space in the electrical panel. Constructed with halogen- and silicone-free materials, it provides enhanced environmental safety and durability.

Certified reliability and regulatory compliance

Made in accordance with CEI EN 61008-1 standards, it ensures safe and timely tripping of sine-sine alternating differential currents. It has a mechanical life of 10,000 switching cycles, ensuring reliable performance over time.

Features of the Schneider RCBO

Technical Data

Feature Value
Rated current 10A
Number of poles 1P+N
Voltage 230V AC
Differential current 30 mA
Breaking capacity 6 kA
Tripping curve C
Type of differential AC
Number of modules 2


Installation and Protection

Feature Value
Degree of protection IP20


Dimensions

Feature Value
Height 85mm
Width 36 mm
Depth 73 mm

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
Amps:
10A
Circuit Protections:
RCBO
