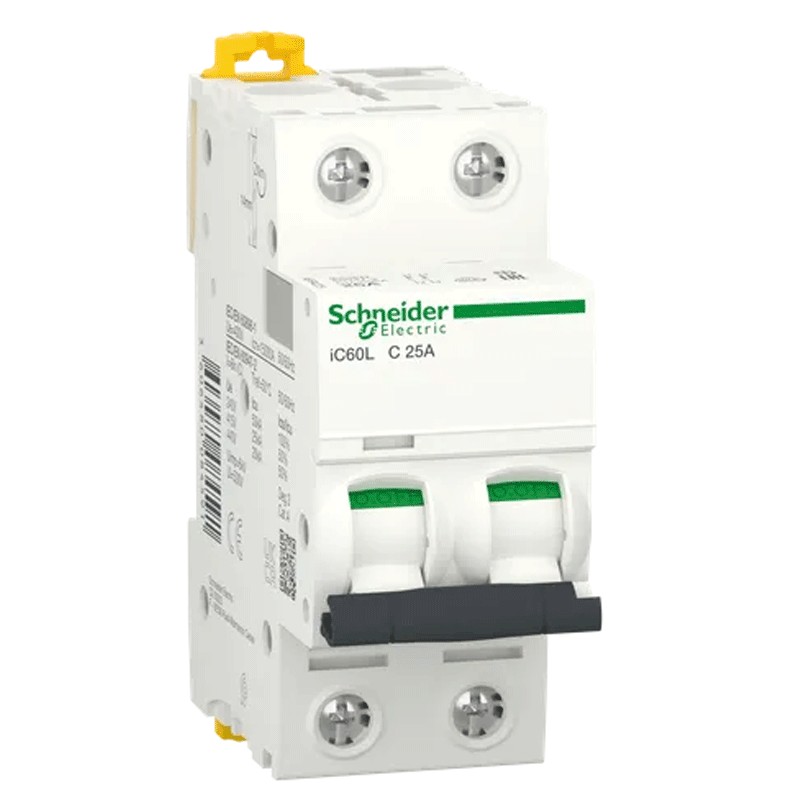

Circuit breaker-Schneider 2P 25A 15KA C 2 modules A9F94225
SNR A9F94225
3606480084591
Circuit breaker-2P 25A 15KA C 2 modules A9F94225
€86.60
Items Available: 10
: 3
Frequently bought together
The main Application of the device Distribution range Acti 9 product name Acti 9 iC60 Product or component type Circuit breaker Short name device IC60L Description of the poles 2P Number of poles-protected 2 [In] rated current 25 To network type AC DC Technology drives travel Breaker Code of the curve C Breaking capacity 20 kA Icu conforming to EN / IEC 60947-2 - 440 V AC 50/60 Hz 25 kA Icu conforming to EN / IEC 60947-2 - 380 ... 415 V AC 50/60 Hz 50 kA Icu conforming to EN / IEC 60947-2 - 220 ... 240 V AC 50/60 Hz 70 kA Icu according to EN / IEC 60947-2 - 12 ... 60 V AC 50/60 Hz 70 kA Icu conforming to EN / IEC 60947-2 - 100 ... 133 V AC 50/60 Hz 20 kA Icu conforming to EN / IEC 60947-2 - <= 125 V DC 15000 A conforming to EN / IEC 60898-1 - 400 V AC 50/60 Hz Category of use Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 Yes conforming to EN 60898-1 Yes conforming to IEC 60898-1 rules EN 60898-1 EN 60947-2 IEC 60898-1 IEC 60947-2
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 15KA
- Amps: 25A
- Circuit Protections: Circuit breakers
