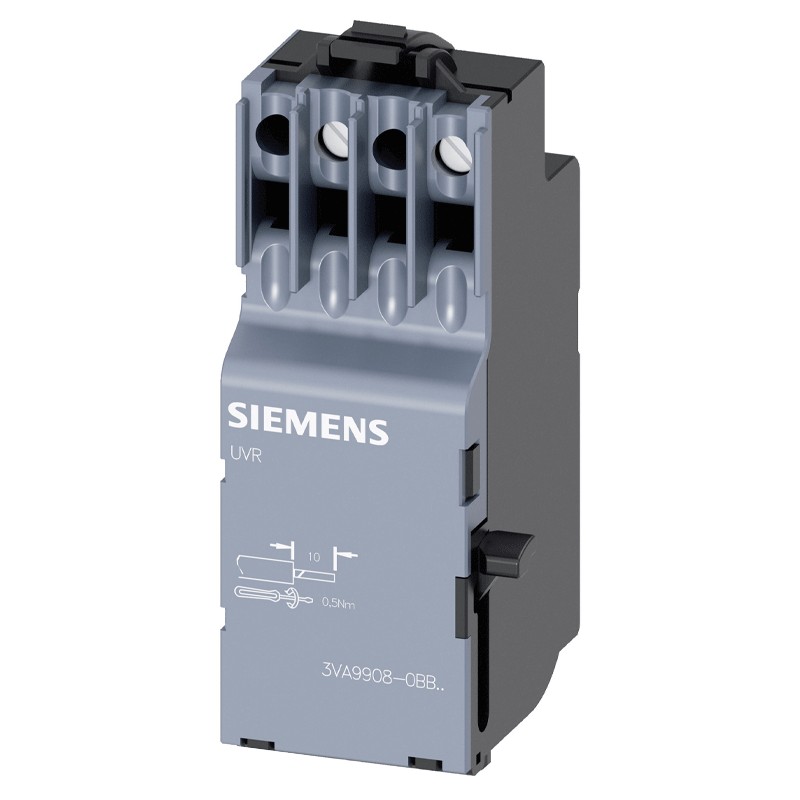

Siemens minimum voltage coil 208-230 Vac 3VA99080BB25

Siemens
Siemens
SIE 3VA99080BB25 4042949001010

Siemens minimum voltage coil, with the following characteristics:

  • AC voltage 208-230 Vac - 50/60 Hz
  • Rated insulation voltage Ui 690 V
  • Rated impulse withstand voltage 4 kV
  • Apparent power consumption max 2 VA
  • Number of slots 3
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens minimum voltage coil 208-230 Vac 3VA99080BB25
€77.71
€77.71

€77.71
Tax included
Calculate shipping cost
Items Available: 51
Further availability of the manufacturer
€77.71

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Siemens Series
  • Voltage AC 208-230 Vac - 50/60 Hz
  • Rated insulation voltage Ui 690 V
  • Rated impulse withstand voltage 4 kV
  • Apparent power consumption max 2 VA
  • Number of slots 3
  • Pollution degree 3
  • Overvoltage category III
  • Stripping length 10 mm

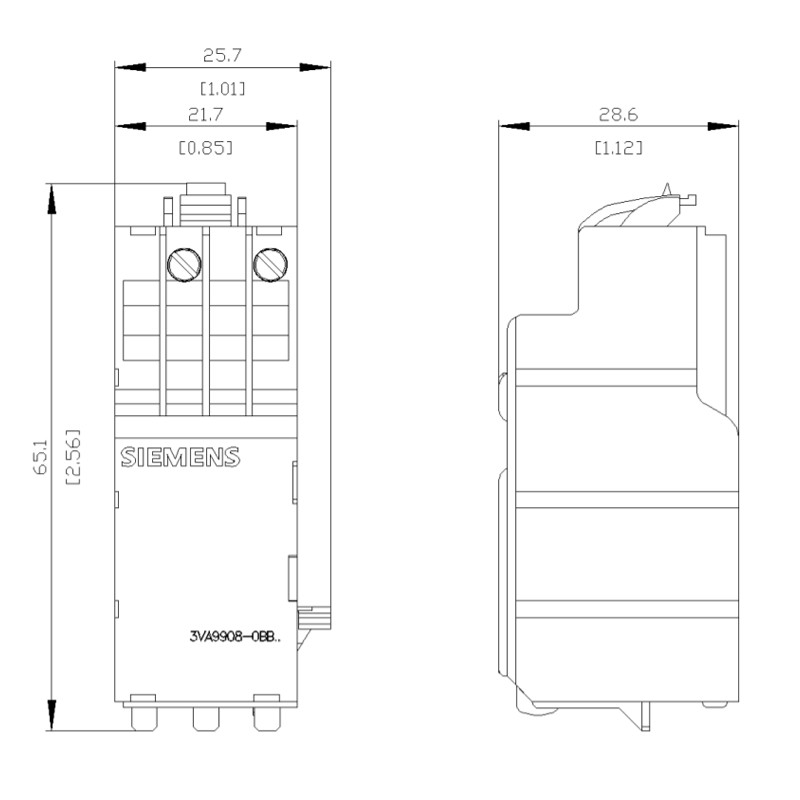

  • Height 65.1 mm
  • Width 25.7 mm
  • Depth 28.8 mm
  • Net weight 91 gr

There are no reviews

Data sheet

Type:
Coils
Contact details of the manufacturer and the responsible person

Other products with same features
