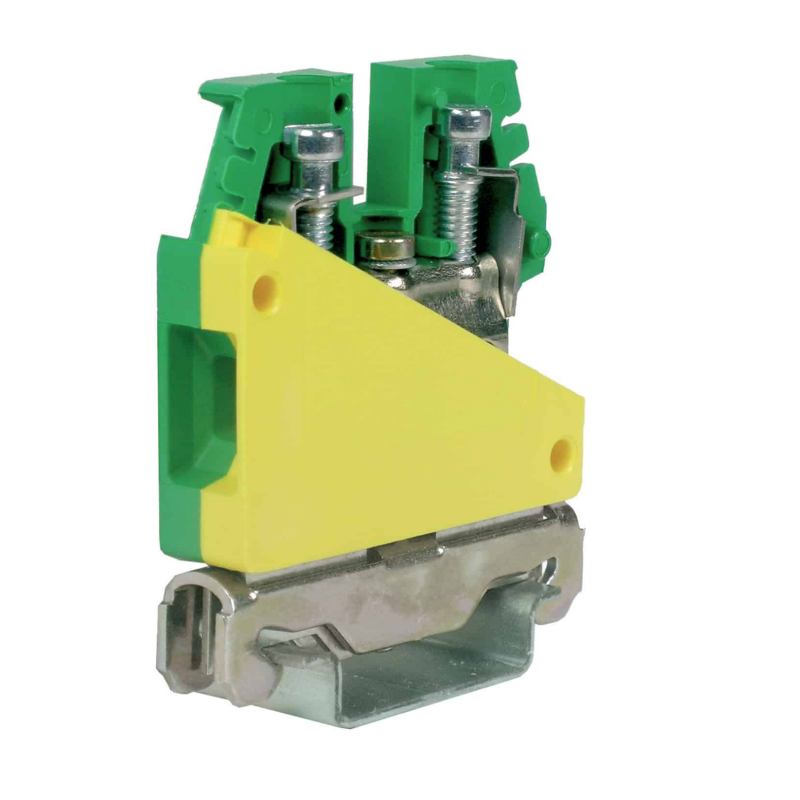

Cabur ground terminal 10mmq yellow green TO500
CBR TO500
8017963211147
Single-plane through-ground terminal with screw clamping Cabur TE series:
- 10mm² nominal cross-section
- Flexible conductor 0.5-10 mm²
- Solid conductor 0.5-16 mm²
- Conductor with terminal - 10mm² model - WP100/21
- Color: yellow/green
- B6 gauge
- Max current with rated section 57A
- Max AC/DC voltage 600V (according to UL standard)
- Cross section (min-max) 20-8 (AWG) (according to UL standard)
- Min/Max operating temperatures -40 °C / +110 °C
- Rated impulse voltage / pollution degree 8 kV / 3
- Tightening torque (nom. / max.) 1.2 / 1.9 Nm
- Width (pitch) 10 mm
- Length 47 mm
- Plastic material Polyamide UL94V-0
€4.64
Items Available: 153
: 55
There are no reviews
Data sheet
- Colour: Yellow/Green
- Type: Clamps
- Cross-Section: 10mmq
