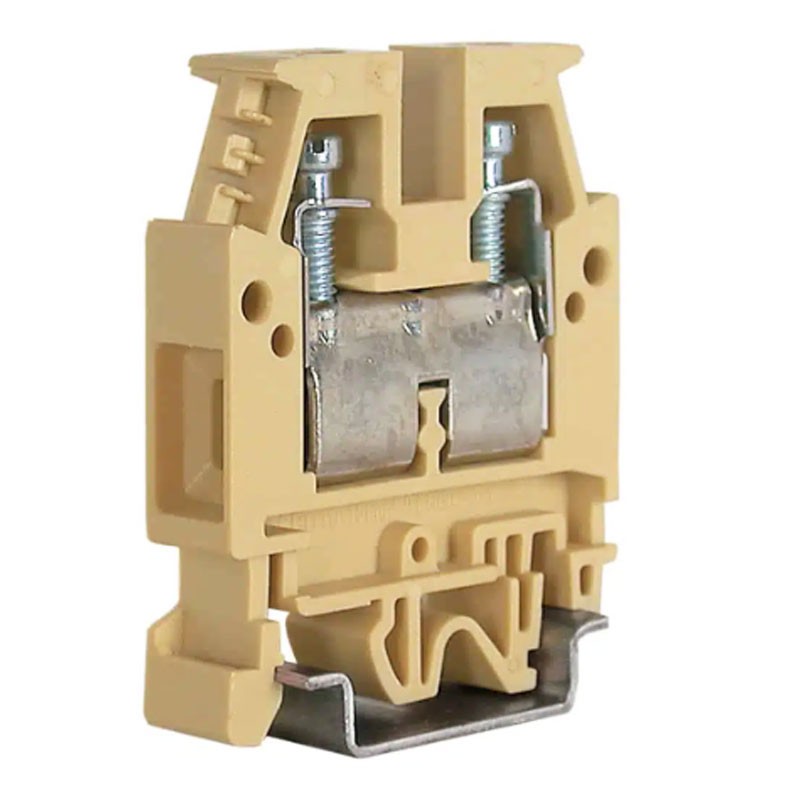

Cabur standard feed-through clamp 10mmq Beige CB440
CBR CB440
8017963183147
Cabur CB440 series standard single-plane feed-through screw clamp with the following features:
- Function/Type: feed through
- Nominal cross-section: 10 mm²
- Flexible conductor: 0.5-16 mm²
- Solid conductor: 0.5-16 mm²
- Max AC/DC voltage: 1000V
- Max current with rated cross section: 57Amps
- Gauge: B6
- Rated impulse voltage / pollution degree: 12 kV / 3
- Stripping length: 14 mm
- Torque (nominal / max.): 1.2 / 1.9 Nm
- Width (pitch): 10 mm
- Length: 44 mm
- Thickness: 1.5 mm
- Height mounted on TH35-7.5/TH35-15/G32 55 / 63 / 59 mm
- Insulating material temperature index (EN 60216-1): 130 °C
- Plastic material: polyamide UL94V-0
- Color: beige
Compatible with plate code CB431.
€1.73
Items Available: 2143
: 433
Frequently bought together
There are no reviews
Data sheet
- Colour: Beige
- Type: Clamps
- Cross-Section: 10mmq
