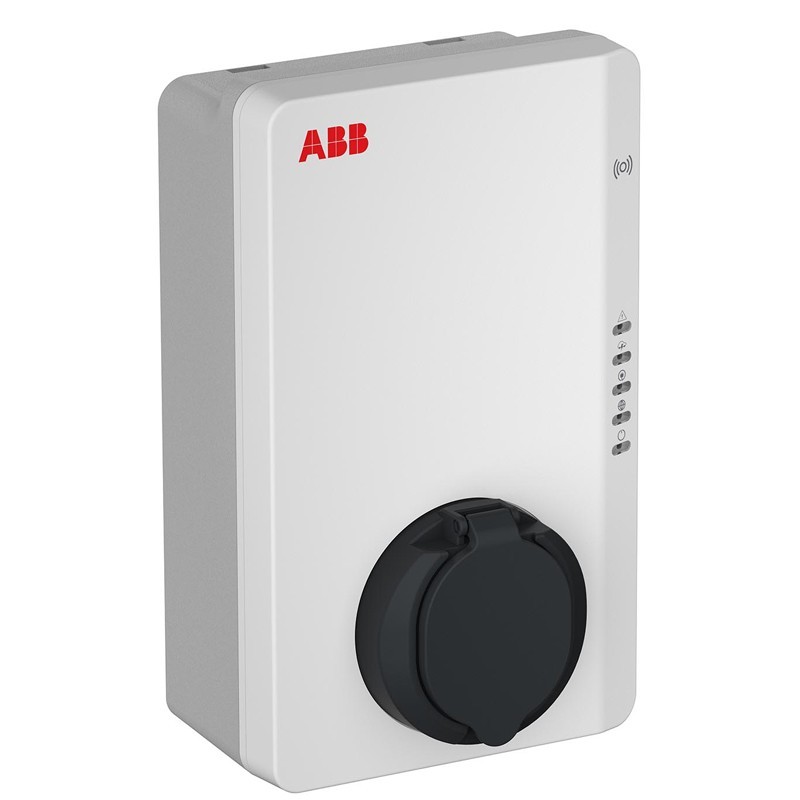

Abb Terra AC Wallbox 3.7KW EV Charging Station with T2 Shutter socket
ABB 6AGC082587
8719874451284
The ABB Terra AC Charging station 3.7 kW, part number 6AGC082587, is a smart charging station designed for use in residential and commercial, wall-mounted applications. Equipped with a Type 2 socket with a protective shutter, it complies with Charging Mode 3 (Mode 3, Level 2) and is fully compatible with standard home and building electrical systems.
It offers advanced connectivity and smart features for a safe, efficient and personalized charging experience.
- Power rating: 3.7 kW
- Maximum deliverable current: 16A
- Socket type: T2 with protective shutter
- Charging mode: mode 3 (level 2)
- Integrated high-precision meter
- Intelligent load management to optimize consumption
- Advanced connectivity: Bluetooth - Wi-Fi - Ethernet - Modbus (for integration with BMS systems)
- Without RFID
- Wall mounting (Wallbox)
€921.29
Out of stock
Incoming
Frequently bought together
Abb Terra AC Charging station: Smart and optimized charging
The Terra AC Wallbox is equipped with a precision meter, which allows the wallbox to be integrated into home or business energy management systems, ensuring optimal power distribution. In this way, the device avoids overloads and reduces charging costs by making the best use of energy availability.
Abb Charging station connectivity and protection
Smart integration with Modbus system
Compatibility with the Modbus protocol allows communication between the wallbox and BMS (Building Management System) systems or advanced home automation platforms, for complete control of charging even remotely.
Safety and security
The Type 2 socket with shutter ensures the highest level of protection from accidental contact and external agents. The wallbox is manufactured to ABB standards for reliability and safety over time.
Ideal for homes and businesses
The 3.7 kW output is perfect for slow and safe charging at night in single-family homes, condominium garages or business parking lots where controlled consumption is a priority.
Built-in electronic protections
- PE continuity monitoring
- Overcurrent
- Overvoltage
- Undervoltage
- Direct current ground fault protection (RDC-DD)
- Integrated overvoltage protection
Technical specifications of the Charging station Abb
| Feature | Description |
|---|---|
| Connectivity | Bluetooth, Ethernet, WiFi, ModBus |
| Input Current (A) | Single-phase 16 |
| Output current (A) | Single-phase 16 |
| Maximum current (A) | 16 A |
| Declaration of conformity | 9AKK107991A0511 |
| Dimensions (W × H × D) | 0.195 × 0.32 × 0.143 m |
| Operating frequency | 50 ... 60 Hz |
| Degree of protection | according to IEC 60529 AccIec605 IP54 |
| RFID reader | No |
| Product net weight | 2 kg |
| Rated power | 3.7 kW |
| Power output (kW) | AC 3.7 kW |
| Supply voltage (V) | AC 110...240 |
| Output voltage (V) | 110 ... 240 V |
| Mounting type | Wall-mounted |
| Socket type | Type 2 with shutter |
| Feature | Description |
|---|---|
| Number of phases | 1 |
| Connection configuration | TT, TN |
| Number RCD electric vehicle equipment | Residual current monitor |
| Number circuit breakers | Integrated circuit breaker |
| Noise suppression | Included |
| Overvoltage category | III |
| Overload protection | Overcurrent protection to 20 A |
| Cross-sectional area | 6 ... 6 mm² |
| Ambient temperature | In operation: -30 ... +50 °C In storage: -50 ... +80 °C |
| Maximum operating altitude | 2000 meters |
| Communication protocol | Version 1.6 |
| Load management method | OCPP - Based |
| Authentication method | Application |
| Sale | Free |
| Type of energy meter | AC |
| Enclosure type | Indoor, outdoor |
| Mounting type | Wall mounting |
| Enclosure material | Plastic |
| Degree of protection | According to IEC 60529 IP54 |
| Impact resistance rating | IK08 |
| User interface | ChargerSync app, ABB web portal |
| Communication protocols | OCPP 1.6J and RS485 for energy meter connection |
| Status signaling | 5 LEDs |
| Safety Standards. | EN 61851-1:2019, IEC 62955:2018, EN 62311, EN 62479 |
| Certifications | CE |
Data sheet
- Type: Electric Vehicles Charging
- Power: 3,7 KW
- Model: Without cable
- Connection: Single-phase
