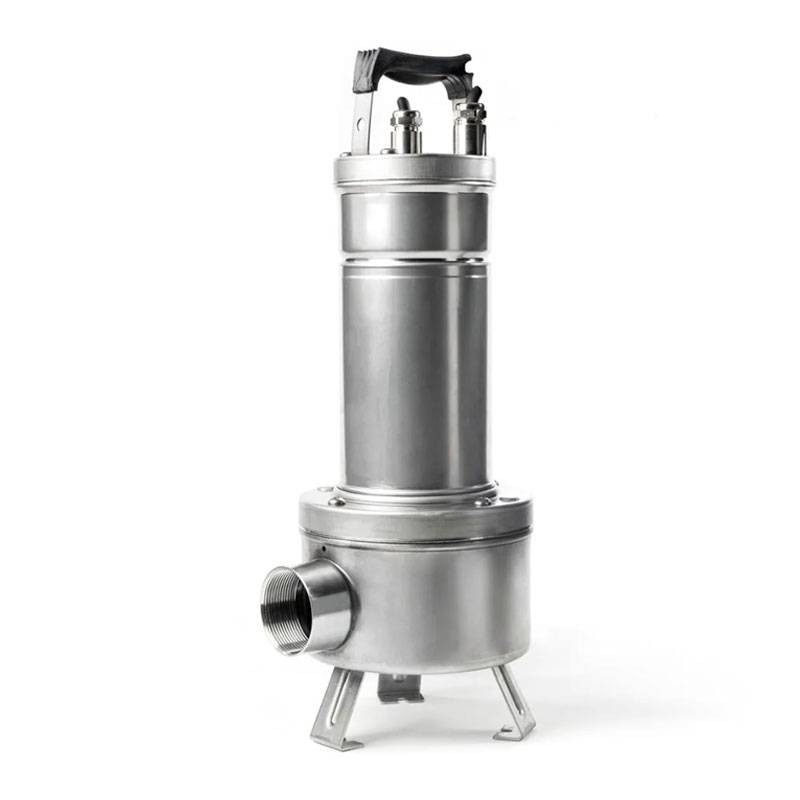

Dab Feka VS 750 M-NA submersible pump 0.75kW 2 103040050H

Dab
Dab
DAB 103040050H 8059893296023

The Dab FEKA VS 750 M-NA is a submersible sewage pump made of stainless steel, ideal for heavy-duty civil, domestic and professional applications. Equipped with microcast steel Vortex impeller, it is designed for lifting sewage and wastewater containing solids up to 50 mm in diameter. This manual version without a float switch is suitable for fixed or portable installations in a vertical position.

  • Submersible sewage pump

  • AISI 304 stainless steel pump body

  • Vortex impeller made of microcast steel

  • AISI 316 stainless steel motor shaft

  • DNM GAS: 2 inches

  • Maximum flow rate: 24 m³/h

  • Maximum head: 9.6 m

  • Solids free passage: up to 50 mm

  • Rated power: 0.75 kW (1 HP)

  • Maximum power consumption: 1.11 kW

  • Power supply: single-phase 220240 V ~ 50 Hz

  • Degree of protection: IP68

  • Insulation class: F

  • Power cable: 10 meters H07RN-F with Schuko plug

  • Manual version without float switch

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Dab Feka VS 750 M-NA submersible pump 0.75kW 2 103040050H
€357.31
€346.59
€346.59

Lowest price in 30 days:
€357.31
Save 3%
€346.59
Tax included
Calculate shipping cost
Offer expires in
Out of stock
Further availability of the manufacturer
Incoming
€346.59

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Dab Feka VS pump: Robust construction and quality materials



All components in contact with the liquid are made of stainless steel, ensuring corrosion resistance and long service life. Double mechanical seal with interposed dolio chamber (non-toxic oil) ensures complete motor protection, even under demanding conditions.

Ideal for lifting sewage

This pump is perfect for:

  • Sump sumps

  • Catch basins

  • Civil and industrial installations

  • Basement rooms prone to flooding

  • It can lift water laden with solid particles, ensuring reliability even in the most difficult cases

Pump features

Pump body, seal holder cover, motor case, cap with handle made of AISI 304 stainless steel. Impeller made of microcast steel. Handle coated with insulating rubber. Motor shaft made of AISI 316 stainless steel. Double mechanical seal with interposed dolio chamber (non-toxic oil), made of carbon/alumina on motor side and silicon carbide/silicon carbide on pump side.

Motor characteristics.

Dry motor, asynchronous type, sealed, cooled by the pumped liquid. Rotor mounted on ball bearings greased for life, oversized and selected for quiet operation and durability. Thermo-amperometric protection as standard. Permanently inserted condenser. Continuous duty with liquid at 35 °C and pump totally submerged. Number of poles: 2. Max starts/hour: 20. Construction according to standards CEI 2-3CEI 61-69 (EN 60335-2- 41).

Technical Characteristics - Submersible Pump (non-automatic)

Hydraulic Performance

Parameter Value
Operating range Up to 24 m³/h with head up to 9.6 meters
Pumped liquid Sewage and general used water, nonaggressive
Free passage 50 mm
DNM GAS 2"


Operating Conditions

Parameter Value
Liquid temperature (domestic use) 0°C to +35°C (EN 60335-2-41)
Liquid temperature (other uses) 0°C to +50°C
Maximum immersion depth 7 m
Ambient temperature (emerged motor) up to +40°C


Motor and Electronics

Parameter Value
Power supply Single-phase 220-240 V / 50 Hz
Rated power 0.75 kW
Maximum power 1.11 kW
Motor protection rating IP68
Motor insulation class F
Power supply cable 10 meters H07RN-F with Schuko plug


Structure and Installation

Component Specifications
Impeller Microcast steel vortex
Installation Vertical, fixed or portable
Version Non-automatic (without float)

There are no reviews

Data sheet

Type:
Submersible Pumps
Model:
Lifting
Connections:
2 inches
