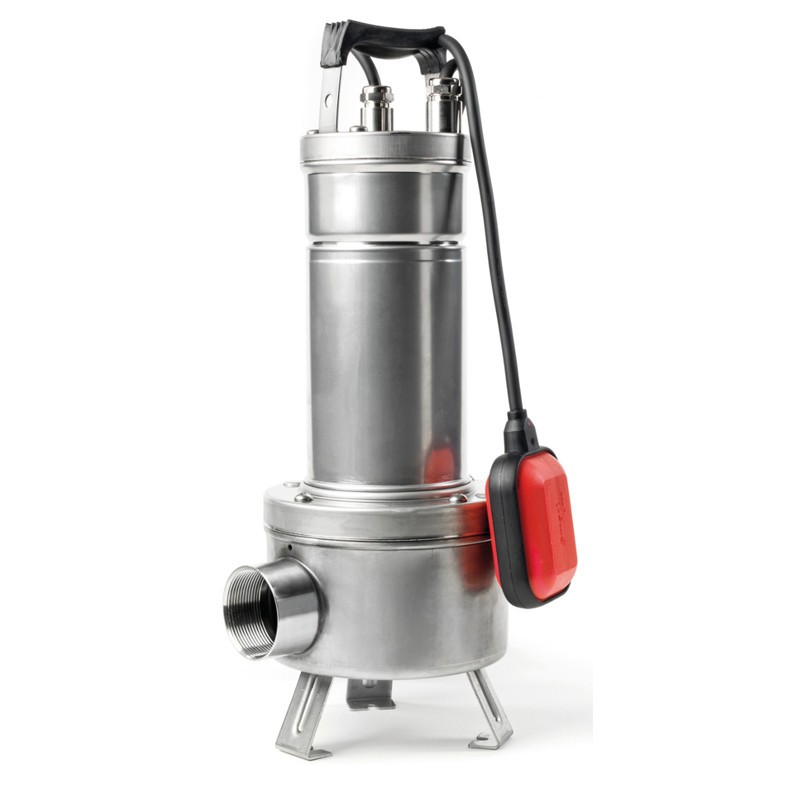

Submersible pump DAB FEKA VS 1200MA 1.2 kW lifting wastewater 103040120

Submersible sewage lifting pump DAB FEKA VS 1200MA 1.2kW 2" 103040120

Dab
Dab
DAB 103040120 8059893296092

DAB FEKA VS 1200MA 1.2kW stainless steel centrifugal submersible pump with liquid vortex impeller, made of microcast steel, suitable for lifting sewage and general wastewater containing solids up to 50 mm in size:



  • Power (kW): 1.2
  • Maximum flow rate (m³/h): 30
  • Maximum head (m): 15
  • DNM GAS: 2" Female
  • 10-meter H07RN-F power cord with Shuko plug
  • Single-phase power supply
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Submersible pump DAB FEKA VS 1200MA 1.2 kW lifting wastewater 103040120
Submersible sewage lifting pump DAB FEKA VS 1200MA 1.2kW 2" 103040120
€628.13
€609.28
€609.28

Lowest price in 30 days:
€628.13
Save 3%
€609.28
Tax included
Calculate shipping cost
Offer expires in
Items Available: 5
Further availability of the manufacturer
€609.28

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Stainless steel submersible centrifugal pump with microcast steel Vortex impeller, suitable for lifting sewage and general wastewater containing solids up to 50 mm in size.






Pump features:

  • Pump body, seal holder cover, motor case, cap with handle made of AISI 304 stainless steel. Impeller made of microcast steel. Handle coated with insulating rubber. Motor shaft made of AISI 316 stainless steel. Double mechanical seal with interposed oil chamber (non-toxic oil), made of carbon/alumina on motor side and silicon carbide/silicon carbide on pump side.






Motor specifications:

  • Dry motor, asynchronous type, sealed, cooled by the pumped liquid. Rotor mounted on ball bearings greased for life, oversized and selected to ensure quiet operation and durability. Thermo-amperometric protection as standard for the single-phase version, by the user for the three-phase version. Permanently inserted capacitor in the single-phase version. Continuous duty with liquid at 35 °C and pump totally submerged. Single-phase versions can be supplied with float switch for automatic operation. Power cable: 10 meters H07RN-F, with plug for single-phase version. Number of poles: 2 Max starts/hour: 20.



Features:

  • Operating range: up to 30 m³/h with head up to 14 meters
  • Power supply: single-phase 220-240 V / 50 Hz
  • Maximum power: 1.93 kW
  • Rated power: 1.2 kW
  • Pumped liquid: sewage and general used water, nonaggressive
  • Liquid temperature range:
    - 0°C to +35°C for domestic use (EN 60335-2-41)
    - 0°C to +50°C for other uses
  • Maximum immersion depth: 7 m
  • Maximum ambient temperature for emerged motor operation: +40°C
  • Free passage: 50 mm
  • DNM GAS: 2"
  • Motor degree of protection: IP68
  • Motor insulation class: F
  • Microcast steel vortex impeller
  • Vertical, fixed or portable installation
  • 10-meter H07RN-F power cord with Shuko plug
  • Version with float switch for automatic operation
  • Dimensions: length, 17 cm width, 49.2 cm height
  • Weight kg 17.1



There are no reviews

Data sheet

Type:
Submersible Pumps
Model:
Lifting
Connections:
2 inches
Consulta scheda EPREL info_outline
