Wilo REXA MINI3 submersible pump V04.09/M05-523/A-5M G 1/2 3094002

Wilo
Wilo
WIL 3094002 4048482948690

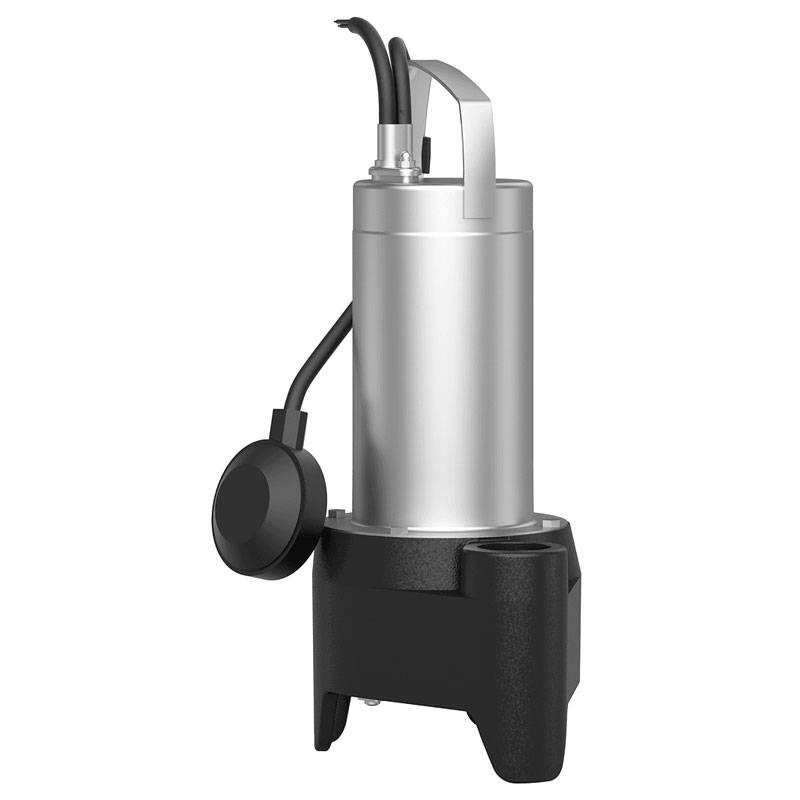

Wilo REXA MINI3 submersible pump for fixed and mobile submersible mounting, intermittent operation.



For pumping in domestic environment of:



  • Waste water without fecal matter
  • Waste water (with low amounts of sand and gravel)
  • Maximum operating pressure p 1 bar
  • Delivery port G 1½
  • Free spherical passage of the hydraulic system 40 mm
  • Type of impeller structure Backward open impeller
  • Max immersion depth 2 meters
  • Mains power supply 1-230V, 50 Hz
  • Rated speed n 2900 1/min
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Wilo REXA MINI3 submersible pump V04.09/M05-523/A-5M G 1/2 3094002
€280.47
€272.06
€272.06

Lowest price in 30 days:
€280.47
Save 3%
€272.06
Tax included
Calculate shipping cost
Offer expires in
Items Available: 10
Further availability of the manufacturer
€272.06

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Sewage pump with backward open impeller and vertical threaded connection.



Grey cast iron hydraulic unit body, plastic impeller. Surface-cooled 1~ motor with built-in operating capacitor and automatic thermal motor protector.



Stainless steel motor body. Dolio-bath seal chamber with double seal: a shaft seal ring is mounted on the motor side, a mechanical seal is mounted on the pump side. Removable connecting cable with float switch and built-in plug (CEE 7/7).



Features:



Hydraulic data:

  • Maximum operating pressure p 1 bar
  • Delivery port G 1½
  • Free spherical passage of the hydraulic system 40 mm
  • Type of impeller structure Backward open impeller
  • Max. immersion depth 2 m
  • Max head. Hmax 9.0 m
  • Max discharge. Qmax 19.0 m³/h
  • Fluid temperature min. Tmin 3 °C
  • Max. fluid temperature Tmax 40 °C
  • Min. ambient temperature Tmin 3 °C
  • Ambient temperature max. Tmax 40 °C



Motor data:

  • Mains power supply 1~230V, 50 Hz
  • Voltage tolerance ±10 %
  • Rated motor power P2 0.5 kW
  • Power consumption P1 max 0.73 kW
  • Rated current IN 3.3 A
  • Inrush current I 7.2 A
  • Operating mode (submerged) S1
  • Operating mode (non-immersed) S3-20%
  • Rated speed n 2900 1/min
  • Power factor cos 0.99
  • Connection type Direct online (DOL)
  • Number of poles 2
  • Max. frequency of starts t 30 1/h
  • Insulation class F
  • Motor protection rating IP68



Cable:

  • Connection cable length 5 m
  • Cable type H07RN-F
  • Cable cross section 3G1 mm²
  • Type of connecting cable Removable



Materials:

  • Pump body Cast iron
  • Impeller PK-GF30
  • Shaft Stainless steel
  • Pump side seal material Coal, resin impregnated
  • Gasket material NBR
  • Motor material Stainless steel



Equipment/operation:

  • CEE7/7 (Schuko) mains plug
  • Float switch
  • Bimetal motor saver

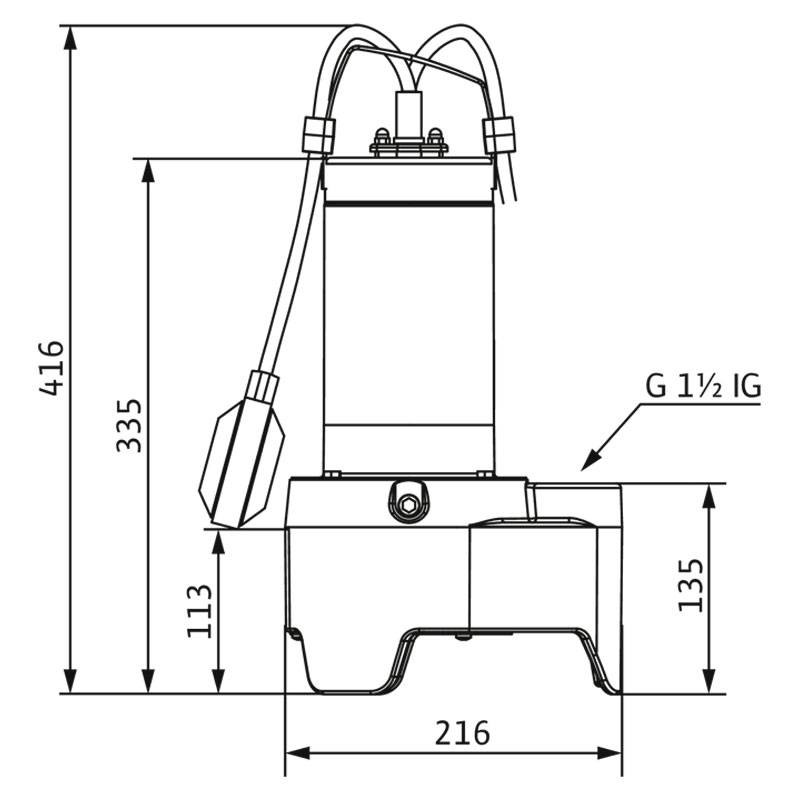

Mounting dimension:

  • G 1½ outlet connection

There are no reviews

Data sheet

Type:
Submersible Pumps
Model:
Lifting
Connections:
1-1/2 inches
