DAB VERTY NOVA 200M submersible pump 0.2kW 1"1/4 internal float 60122636H
DAB 60122636
8059893035790

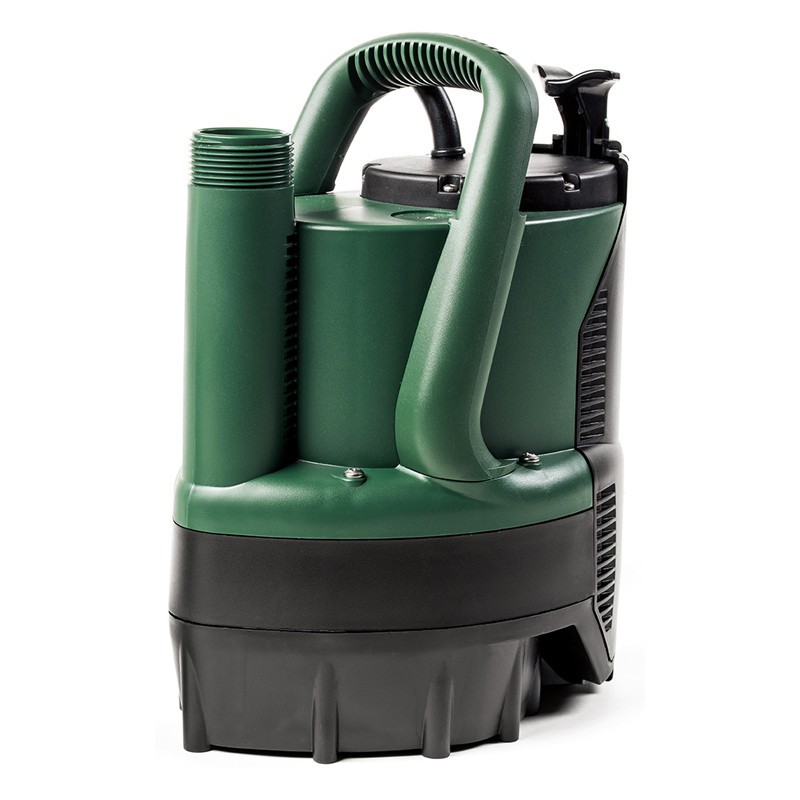

DAB VERTY NOVA 200M 0.2kW submersible pump with internal float switch for clear water drainage for domestic use:
- Power (kW): 0.2
- Maximum flow rate (m³/h): 7
- Maximum head (m): 6.9
- DNM GAS: 1" ¼
- Single-phase power supply
- 10m power cord with plug
€154.36
Items Available: 9
: 2
The submersible drainage pump with vertical delivery is suitable for domestic use of fixed applications with automatic operation, for draining basements and garages prone to flooding. Due to its compact and handy shape, and integrated float switch, it is particularly suitable for small drainage sumps (minimum 20x20cm). It can find application as a portable pump for emergency cases such as: drawing water from tanks or rivers, emptying swimming pools and fountains or excavations and underpasses. Also suitable for gardening and general hobbies. This pump can be used with liquids containing solids up to 5 mm in size. The built-in float level switch allows fixed installation ensuring automatic operation. Equipped with easy access to the float switch for maintenance and automatic or manual mode selector. Minimum suction level down to 2/3mm.
Motor construction features:
- Submersible asynchronous type with continuous duty. Stator inserted in a hermetically sealed stainless steel casing and covered by a canopy enclosing wiring, microswitch and capacitor. Rotor mounted on greased-for-life, oversized ball bearings for quiet operation and durability. Built-in thermal-amperometric protection and permanently engaged capacitor.
Pump features:
- Pump body, impeller, cap and suction grille made of water-resistant technopolymer. Motor, rotor shaft and hardware made of stainless steel. Triple interposed ring seal with oil pre-chamber.
Features:
- Operating range: up to 7 m³/h with head up to 6.9 meters
- Voltage: single-phase 230 V / 50 Hz
- Maximum power: 0.3 kW
- Rated power: 0.2 kW
- Liquid temperature range: 0°C to +35°C for domestic use
- Pumped liquid: turbid water without fibers
- DNM GAS: 1" ¼
- Minimum suction level: 2-3 mm (in manual operation)
- Pump priming limit 10-15 mm (in manual operation)
- Maximum immersion: 7 meters
- Pump with integrated float switch
- Suitable for small sized sumps (minimum 20x20 cm)
- Anti-corrosion and anti-oxidation materials
- Operation mode selector: manual or automatic
- Easy access to float for cleaning thanks to removable cover
- Motor with thermal overheating protection
- 10-meter power cord with plug
- Equipped with non-return valve and 4-level fitting
Pas de soucis avec les pompes Dab. Ce n'est pas la première que j'installe. Le flotteur intégré c'est très pratique dans un espace réduit.
convient pour notre cave comme vide cave
Data sheet
- Type: Submersible Pumps
- Model: 200 metres
- Connections: 1-1/4 inches
