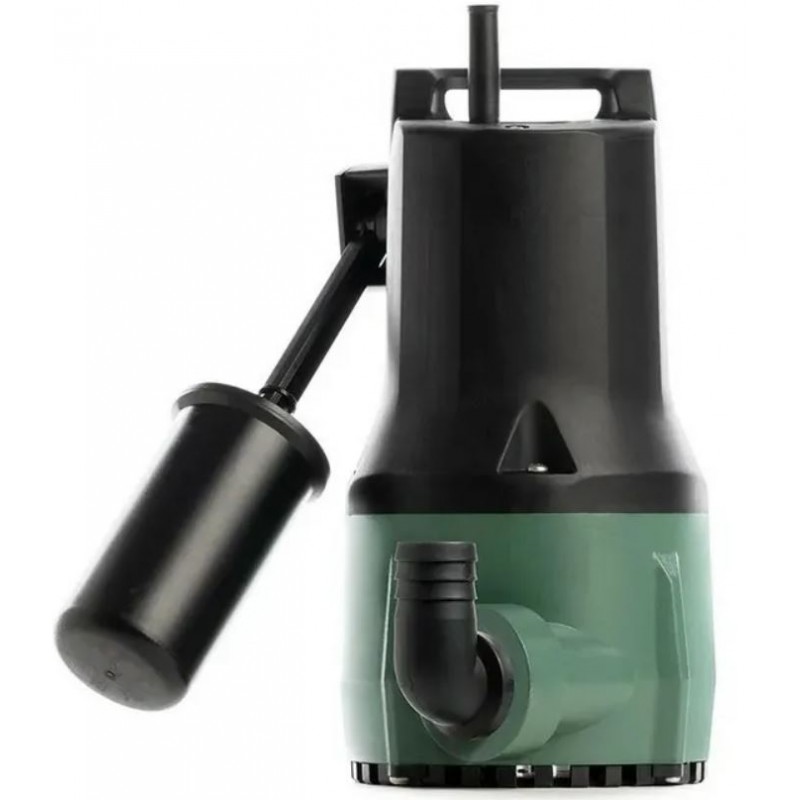

Dab submersible pump NOVA 300 M-A 1"1/4 clear water drainage 60194400H

Dab
Dab
DAB 60194400 8059893220585

Dab NOVA 300 MA submersible pump pre drainage clear water for domestic use, automatic with float:



  • Automatic version with float switch
  • Power supply 1 x 220 - 240 V ~
  • Power max. 0.35 kW
  • Power rating kW 0.22/0.3Hp
  • Current In 1.6A
  • DNM 1 - 1/4 inch
  • Volume: 0.019 mc
  • Power cable: 5 metres

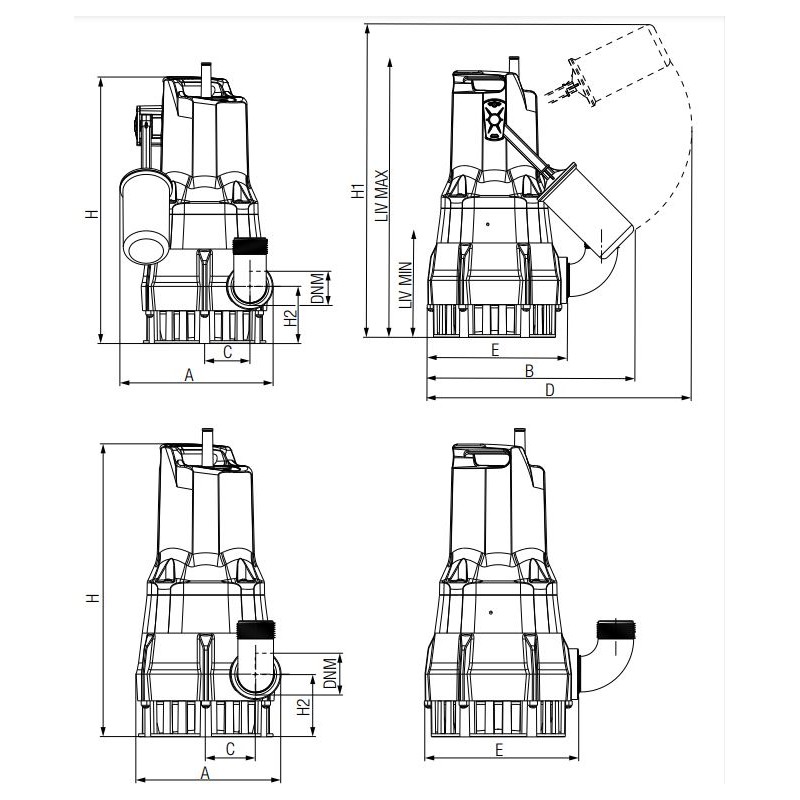

  • Dimensions: 180x247x46x296x158x277x354x47 mm (A-B-C-D-E-H-H1-H2)
  • Liv Min 85
  • Liv Max 285
Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Dab submersible pump NOVA 300 M-A 1"1/4 clear water drainage 60194400H
€136.40
€132.31
€132.31

Lowest price in 30 days:
€136.40
Save 3%
€132.31
Tax included
Calculate shipping cost
Offer expires in
Items Available: 10
Further availability of the manufacturer
€132.31

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The submersible pump of the NOVA series is suitable for domestic use of fixed applications with automatic operation, for draining basements and garages subject to flooding.

Due to its compact and handy shape, it also finds particular application as a portable pump for emergency cases such as: drawing water from tanks or rivers, emptying swimming pools and fountains or excavations and underpasses. Also suitable for gardening and general hobbies. The level switch allows a fixed installation guaranteeing automatic operation. Special stainless steel (SV) pump shaft version also available.



Features:

  • Power supply 1 x 220 - 240 V - frequency 50Hz
  • Power Max 0.35 KW
  • Rated power 0.22 KW / HP 0.3
  • In 1.6A
  • Liquid temperature range: 0°C to +35°C for domestic use
  • Pumped liquid: turbid water without fibers
  • Passage particle size through the suction grid: 10mm
  • Min suction depth: 85mm
  • Maximum immersion: 7 meters
  • Maximum dry running time: 1 minute
  • Degree of protection: IP 68
  • Insulation class: F.



PUMP CONSTRUCTION FEATURES

  • Pump body, impeller, cap and suction grille made of water-resistant technopolymer
  • Motor, rotor shaft and hardware made of stainless steel
  • Triple interposed ring seal with dolio prechamber.

MOTOR CONSTRUCTION CHARACTERISTICS

  • Submersible asynchronous continuous-duty type
  • Stator inserted in a hermetically sealed stainless steel housing and covered by a canopy enclosing wiring, microswitch and capacitor
  • Rotor mounted on greased-for-life, oversized ball bearings for quiet operation and durability
  • Built-in thermal overload protection and permanently inserted capacitor in single-phase version
  • For protection of the three-phase motor, the use of a remote motor protector in accordance with standards is recommended.

Bon produit fiable par rapport aux produits LEROY MERLIN

Une pompe!!! Point!! Rien de fantastique!!

Würde immer wieder bestellen hat alles gut geklappt auch der Packetzustelller

Article conforme à la description. Je recommande

Bon produit, que je connaissais déjà

Read all reviews

Data sheet

Type:
Submersible Pumps
Model:
Drainage
Connections:
1-1/4 inches
Consulta scheda EPREL info_outline
