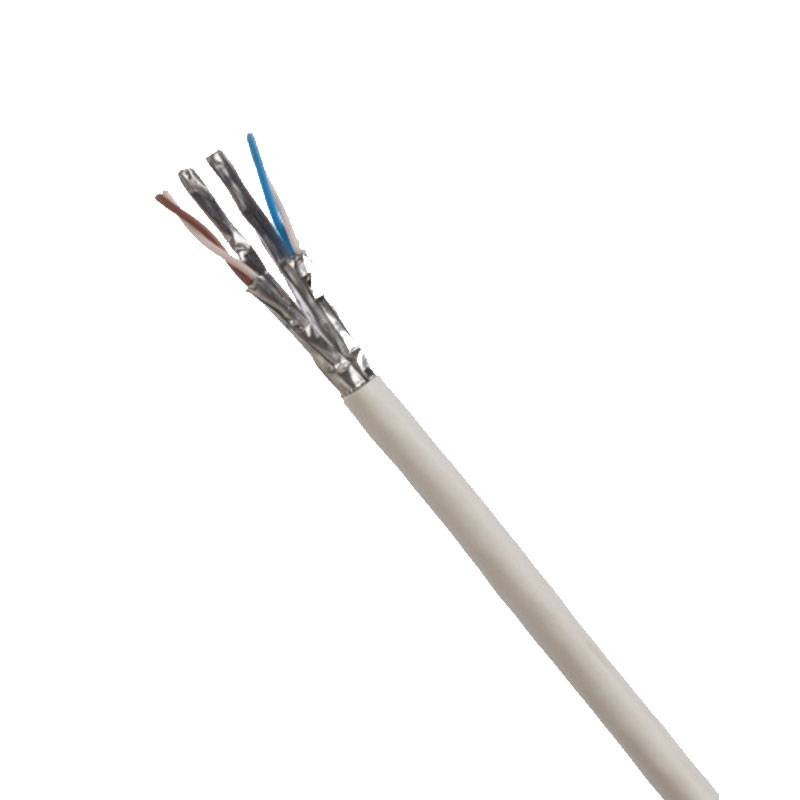

Panduit U/UTP LSZH CAT6A Data Cable 305 metres PUY6XHD04WH-EG
PAN PUY6XHD04WH-EG
Panduit U/UTP LSZH CAT6A data cable 305 m, high density, Euroclass Cca-s1a,d1,a1, 23 AWG conductors, ideal for 10GBASE-T networks and professional applications.
-
U/UTP CAT6A / Class Ea cable 305 metres
-
Solid copper conductors 23 AWG
-
Expanded PE + HDPE insulation
-
Divider tape + AXT crosstalk barrier
-
Low smoke emission LSFRZH (LSZH) sheath
-
Reduced diameter: 6.5 mm
-
Performance exceeding ANSI/TIA and ISO/IEC standards
-
Compatible with PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
-
CPR Euroclass: Cca-s1a,d1,a1
-
Suitable for 10GBASE-T up to 100 m
-
Ideal for data centres, backbones, and high-density networks
€2.28
Out of stock
Incoming
Panduit U/UTP LSZH CAT6A Data Cable, professional for 10 Gigabit networks
The Panduit U/UTP LSZH CAT6A cable (code PUY6XHD04WH-EG) is a high-performance data cable designed to support 10 Gigabit Ethernet network applications up to 100 metres, exceeding the requirements of ANSI/TIA-568.2-E Category 6A, ISO/IEC 11801 Class Ea, and IEC 61156-5 standards. Sold in a 305-metre reel, it represents an ideal solution for professional LAN installations, data centres, and high-density networks.
The construction with solid copper conductors 23 AWG, insulated with expanded PE and HDPE, ensures stable transmissions, very low attenuation, and signal integrity even in challenging installations. The pairs are twisted, separated by a divider tape, and wrapped with an AXT barrier tape that drastically reduces alien crosstalk, ensuring superior performance and a clean signal even in large cable bundles.
High-density design with reduced diameter
With a nominal diameter of only 6.5 mm, the cable maximizes conduit capacity and facilitates wiring in confined spaces. This allows for an upgrade from CAT6 to CAT6A without replacing existing conduits, making installation more economical and less invasive. The optimized design also reduces the minimum bend radius, simplifying passage in high-density network racks and cabinets.
The cable has been tested on 48-port panels in 1 RU, ensuring maximum compatibility with high-concentration patch point configurations typical of modern data centres.
Superior performance and maximum reliability
The performance of the Panduit cable exceeds industry standards, ensuring wide operational margins for:
-
stable and error-free 10GBASE-T transmission,
-
reduction of electromagnetic interference,
-
immunity to alien crosstalk (thanks to the AXT tape),
-
effective management of PoE+, PoE++ applications and systems with high thermal dissipation
Thanks to the wide operating temperature range (-20°C / +75°C), the cable is perfect even in densely wired cabinets, where the temperature can rise significantly due to high PoE load.
The LSFRZH (Low Smoke, Flame Retardant, Zero Halogen) sheath ensures safety in public and corporate environments, while the CPR Euroclass Cca-s1a,d1,a1 certification ensures compliance with European fire reaction requirements.
Metric marking and simplified installation
The 305-metre reel features a decreasing metric marking, allowing the installer to know at any time how much length is available, reducing waste and speeding up laying operations.
With adequate mechanical strength and a maximum installation tension of 110 N, the cable is designed to ensure reliability and durability even in the most challenging laying operations.
Main applications
The Panduit TX6A U/UTP cable is ideal for:
-
10GBASE-T Ethernet
-
Backbone and network backbone cabling
-
Data centres and I/O consolidation
-
Server virtualization
-
Cloud infrastructures and HPC (High-Performance Computing)
-
High-speed interconnections in corporate networks
-
Total compatibility with existing environments ensures a simple upgrade and investment protection over time
| Brand | Panduit |
| Model | PUY6XHD04WH-EG |
| Category | 6A / Class Ea |
| Type | U/UTP – solid copper 23 AWG |
| Insulation | Expanded PE + HDPE |
| AXT Barrier | Yes, anti-alien crosstalk |
| Pair Separator | Divider tape |
| Cable Diameter | 6.5 mm |
| Insulation Diameter | 1.04 – 1.30 mm |
| Reel Length | 305 m |
| Weight | 17 kg / reel |
| Sheath | LSFRZH (LSZH) |
| CPR Classification | Cca-s1a,d1,a1 (EN 50575) |
| Supported Standards | ANSI/TIA-568.2-E, ISO 11801, IEC 61156-5 |
| PoE Compatibility | IEEE 802.3af, 802.3at, 802.3bt (PoE / PoE+ / PoE++) |
| Installation Temperature | 0°C → 50°C |
| Operating Temperature | -20°C → +75°C |
| Maximum Pulling Force | 110 N |
