Panduit CAT7 S/FTP LSZH CPR B2CA Data Cable PSW7004WH-HED
PAN PSW7004WH-HED

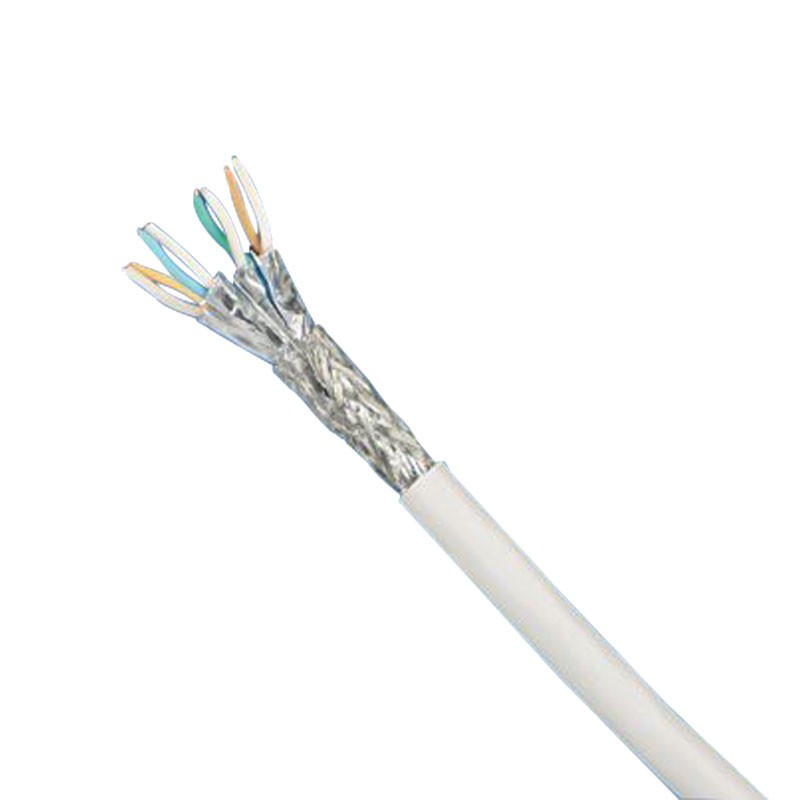

Panduit copper Cat 7 data cable, 4 pair, 23 AWG, S/FTP, EuroClass B2ca-s1a-d1-a1, white, 500 m/1640 ft.
Sold on a 500 meter reel.
€2.72
Out of stock
Incoming
Features:
- Category 7 cable
- S/FTP cable construction
- Total Length (m) 500
- Conductor Material Copper
- Jacket Material High Density Polyethylene
- Conductor Gauge (AWG) 23 AWG
- Conductor Type Solid
- Nominal Diameter(mm) 7.4
- Insulation Diameter(mm) 1.27
- Bending Radius(mm) 59.2
- Number of Pairs 4
- PanNet Subproduct
- Maximum operating temperature (°C) 60
- Minimum operating temperature (°C) -20
- Maximum installation temperature (°C) 50
- Minimum installation temperature (°C) 0
- Maximum installation voltage (N) 110
- Maximum installation voltage (lb) 25
- Indoor Environment
- Package Type Coil
- White color
- Environmental Voltage Rating(V) 80
- ROHS Compliant Standard
- Resistance Properties Flame Retardant
- LSZH-1 flammability rating
- LP Rating N/A
- Euroclass rating B2ca-s1a-d1-a1
- Product Type Cable
- CE Compliant Euroclass B2ca-s1a-d1-a1
There are no reviews
Data sheet
- Type: Networking cables
